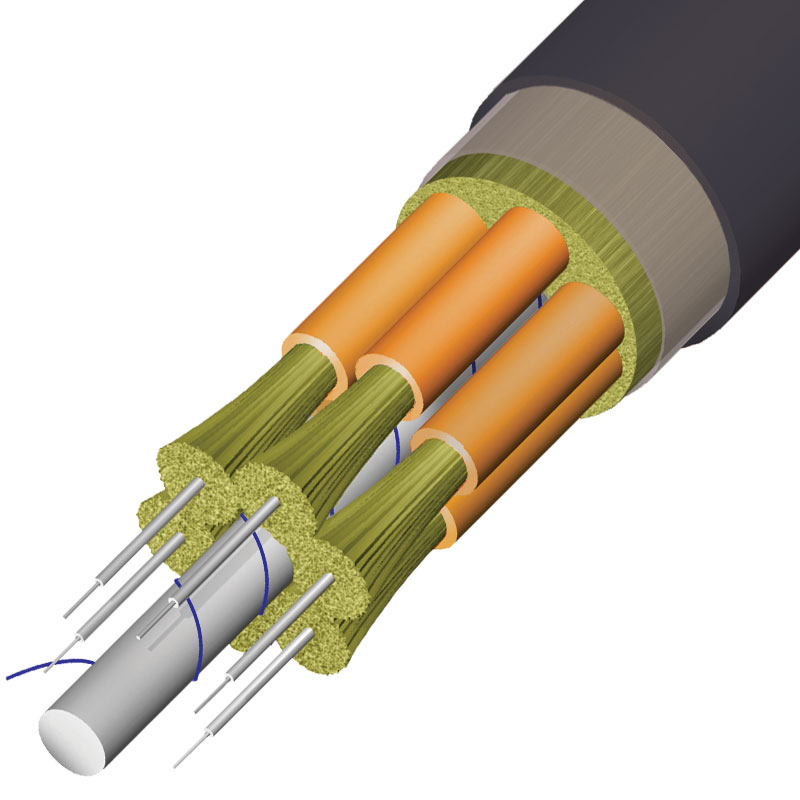

1 FIBER OPTIC CABLE Premise Cable © 2008, AFL, all rights reserved. PP-1-00081, Revision 4, 6.24.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued A Applications • Harsh Environment • Mining • Industrial • Campus Environment Features • Fiber counts 2-12 • Fungus, water and UV-resistant PVC jacket featuring SP extrusion technology • Riser-rated with water-blocked sub-units • Sub-units and tight buffer available in a variety of colors Fiber Specifications CORE SIZE/FIBER TYPE ISO/ IEC MAXIMUM ATTENUATION (DB/KM) OVERFILL LAUNCH MIN. BANDWIDTH (MHZ•KM) EMB c (MHZ•KM) GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 10 GIGABIT ETHERNET MIN. LINK DISTANCE (METERS) 850 NM 1300 NM 1550 NM 850 NM 1300 NM 850 NM 1300 NM 850 NM 1300 NM (6) 62.5 Giga-Link™ 300 OM1 3.5 1.2 N/A 200 600 N/A 300 550 32 — (5) 50 Giga-Link™ 600 OM2 3.5 1.5 N/A 500 500 N/A 600 600 82 — (L) 50 Laser-Link 300 OM3 3.0 1.2 N/A 1,500 500 2,000 1,000 550 300 — (C) 50 Laser-Link 550 OM4 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (W) AFL Wideband Multimode OM5 3.0 1.2 N/A 3,500 500 4,700 1,040 550 550 — (9) Single-mode (ITU G.652.D/G.657.A1) OS2 N/A 0.5 0.5 N/A N/A N/A N/A 5,000 N/A 10,000 Indoor/Outdoor Breakout Cable AFL Indoor/Outdoor Riser Breakout cable is suited for applications requiring a high performance fiber optic cable. Water-blocked and re-inforced with all-dielectric strength members within the core, this cable can withstand the rigors presented by higher end installations. Available in 2-12 fiber counts, these cables feature a UV-and Fungal-Resistant semi-pressure extrueded outer jacket. Individual sub-units measure 2.5 mm, allowing for ease of field termination. Sub-units are also water-blocked adding to the overall protection of the fiber optic components from environmental damage. Cable Components PVC outer jacket 2.5mm water-blocked simplex sub-unit - 900μm buffered fiber - water swellable aramid yarn strength members - PVC jacket aramid yarn strength member PVC outer jacket 2.5mm simplex sub-unit - 900μm buffered fiber - water swellable aramid yarn strength members - PVC jacket strength member aramid yarn 12 Fiber 2 and 4 Fiber © 2008, AFL, all rights reserved. PP-1-00081, Revision 4, 6.24.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Premise Cable Premise Cable Contact AFL for further details. Temperature Specifications TEMPERATURE RANGE INSTALLATION -20ºC to +70ºC OPERATING -40ºC to +70ºC STORAGE -40ºC to +70ºC Qualifications GOVERNING BODY STANDARD CODE Telcordia GR-409-CORE EIA/TIA 568-A RoHS 2002/95/EC ICEA MSHA Indoor/Outdoor Breakout Cable Mechanical Data AFL NO. FIBER COUNT NOMINAL DIAMETER WEIGHT TENSION LBS (N) BENDING RADIUS INCHES (CM) INCHES (MM) LBS/1000FT (KG/KM) INSTALLATION LONG TERM INSTALLATION LONG TERM BM002  251##1 2 .34 (8.6) 49 (73) 300 (1334) 90 (400) 5.0 (12.6) 3.3 (8.4) BM004  251##1 4 .34 (8.6) 49 (73) 300 (1334) 90 (400) 5.0 (12.6) 3.3 (8.4) BM006  251##1 6 .40 (10.1) 69 (102) 300 (1334) 90 (400) 6.02 (15.3) 4.1 (10.2) BM008  251##1 8 .46 (11.8) 93 (138) 300 (1334) 90 (400) 7.0 (18.0) 4.6 (11.8) BM012  251##1 12 .51 (13.0) 95 (142) 300 (1334) 90 (400) 8.0 (20.0) 5.3 (13.5)  Fiber Types – Replace asterisk (  ) in AFL number with number in the Fiber Specifications table on previous page. # Outer Jacket Color – Replace hashtag (#) in AFL number with number in the Cable Jacket Color table below. Cable Jacket Color* Options 1 - Blue 8 - Black 2 - Orange 9 - Yellow 3 - Green A - Violet 4 - Brown B - Rose 5 - Slate C - Aqua 6 - White K - Erika Violet (RAL 4003) 7 - Red * All jacket colors are UV stable and contain anti-fungal additive. For Best performance, AFL recommends Black Outer Jacket.
