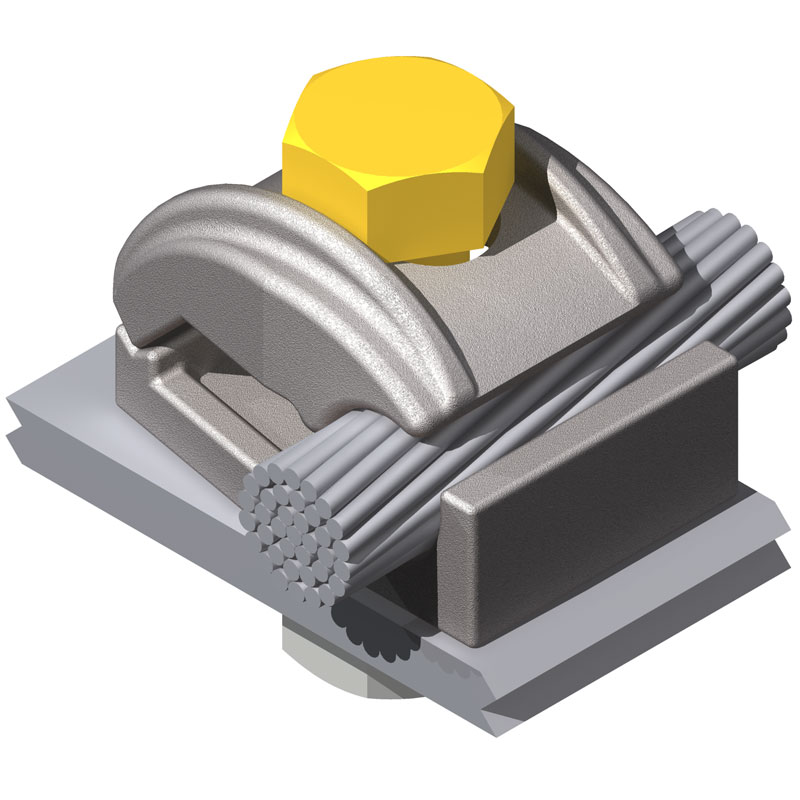

© 2010, AFL, all rights reserved. PP-3-00335, Revision 1, 3.29.2023 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 298 230 kV Aluminum Bolted Ground Clamps 230 kV Aluminum Bolted Ordering Information CATALOG NUMBER CABLE RANGE AAC DIMENSIONS IN INCHES BOLT SIZE GA-AA GAA-AA MIN MAX A B C H W Y GA4-AA GAA4-AA 8 SOL 4 STR 3/4 2 1 3/8 1 3/8 1 1/4 15/16 3/8 GA13-AA GAA13-AA 4 SOL 2/0 STR 1 2 1 1/2 1 1/2 1 11/16 1 3/8 GA25-AA GAA25-AA 2/0 SOL 250 MCM 1 1/4 2 1/2 1 3/4 2 1/4 2 1/4 1 1/4 1/2 GA50-AA GAA50-AA 300 MCM 500 MCM 1 1/2 2 1/2 2 2 3/4 2 1/2 1 3/8 1/2 GA75-AA GAA75-AA 550 MCM 750 MCM 1 3/4 3 2 3/8 3 3 1/4 1 9/16 5/8 GA100-AA GAA100-AA 800 MCM 1000 MCM 2 3 2 1/2 3 1/4 3 5/8 1 9/16 5/8 TYPE GA-AA, GAA-AA Two Conductor Flat Bar Ground Clamp A two piece ground clamp for clamping two wires or cables to a flat bar, plate, or structural member. Permits a slight range of variability in accommodating different size conductors. Bolts are retained by body to enable assembling with only one wrench. Bolts are supplied to clamp a 1/4 Inch bar. Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. Note Bolt length supplied to clamp a 1/4" bar with maximum conductor in place. To obtain longer bolt add thickness of bar to the CAT.#. EX: For 1/2" thick bar order: GA13-T1/2-AA GA-AA GAA-AA 1/4 A W H C Y B GAA-AA GA-AA 300 230 kV Aluminum Bolted Ground Clamps © 2010, AFL, all rights reserved. PP-3-00344, Revision 0, 11.09.10 Specifications are subject to change without notice. 230 kV Aluminum Bolted Ground Clamps www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER CONDUCTOR RANGE AAC DIMENSIONS IN INCHES BOLT SIZE MIN MAX B L W GF4-AA 8 Solid 4 Stranded 1 1 15/16 1 7/16 3/8 GF13-AA 4 Solid 2/0 Stranded 1 1/8 1 15/16 1 9/16 3/8 GF25-AA 2/0 Solid 250 MCM 1 3/8 2 1/4 2 1/2 GF30-AA 4 Solid 300 MCM 1 3/8 2 1/2 2 1/4 1/2 GF50-AA 300 MCM 500 MCM 1 1/2 2 3/4 2 7/16 1/2 GF75-AA 550 MCM 750 MCM 1 5/8 3 1/4 2 7/8 5/8 GF100-AA 800 MCM 1000 MCM 1 3/4 3 1/2 3 3/16 5/8 TYPE GF-AA Pipe Ground Clamp A ground clamp for grounding a cable or wire to a flat bar, plate or flat structural steel member. The bolt is retained by the cap to enable assembly with only one wrench. B W 1/4 L Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. Note Bolt length supplied to clamp a 1/4" bar with maximum conductor in place. To obtain longer bolt add thickness of bar to the CAT.#. EX: For 1/2" thick bar order: GF13-T1/2-AA
