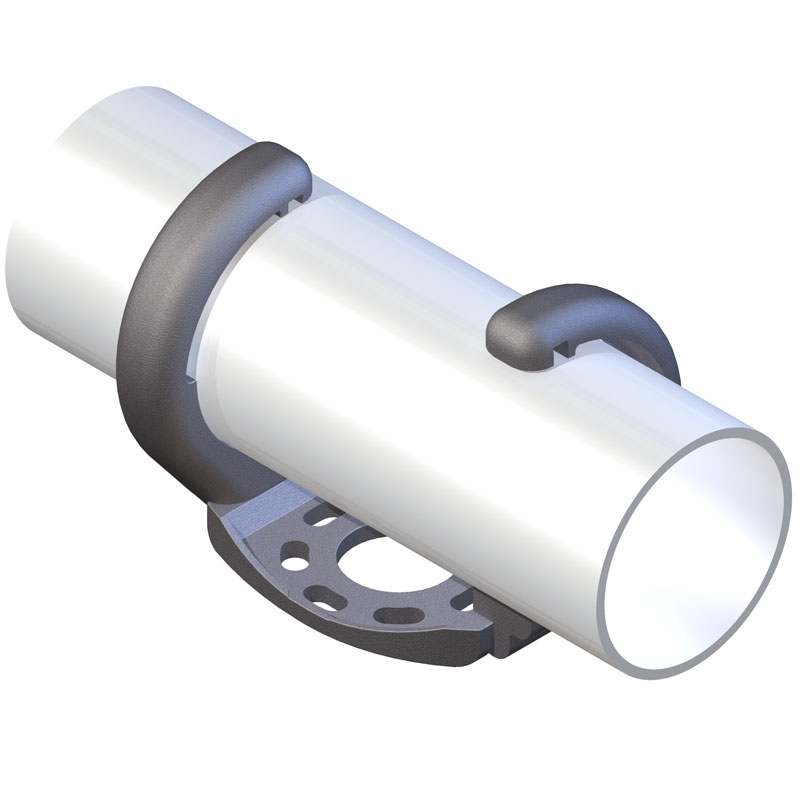

www.AFLglobal.com or 800-890-8878 477 © 2011, AFL, all rights reserved. PP-3-00408, Revision 4, 2.14.18 Specifications are subject to change without notice. Swage Bus Accessories 345/500 kV SUPPORTS TYPE PSD-V-AA, PSD-V-CH-AA Bolted Bus Support, Pipe, Slide or Tight Fit Double ring support is designed to be corona free for 345 kV and 500 kV service. Support is designed to be slip or tight fit depending on top caps. Ordering Information CATALOG NUMBER S.P.S. BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD WITH CHATTER SPRING A B F T PSD250-5-V-AA PSD250-5-V-CH-AA 2 1/2 5 3 1/8 9 7/8 6 1/4 17/32 1/2 PSD300-3-V-AA PSD300-3-V-CH-AA 3 3 3 5/8 10 1/8 4 1/4 5/8 5/8 PSD300-5-V-AA PSD300-5-V-CH-AA 3 5 3 5/8 10 1/4 6 1/4 1/2 5/8 PSD300-7-V-AA PSD300-7-V-CH-AA 3 7 3 5/8 14 1/2 8 1/2 1/2 5/8 PSD350-5-V-AA PSD350-5-V-CH-AA 3 1/2 5 4 10 1/4 6 1/4 1/2 5/8 PSD350-7-V-AA PSD350-7-V-CH-AA 3 1/2 7 4 14 1/2 8 1/2 1/2 5/8 PSD400-3-V-AA PSD400-3-V-CH-AA 4 3 4 1/2 10 1/8 4 1/4 9/16 5/8 PSD400-5-V-AA PSD400-5-V-CH-AA 4 5 4 1/2 10 1/4 6 3/8 9/16 5/8 PSD400-7-V-AA PSD400-7-V-CH-AA 4 7 4 1/2 14 1/2 8 1/2 1/2 5/8 PSD500-3-V-AA PSD500-3-V-CH-AA 5 3 5 10 1/8 4 1/4 9/16 5/8 PSD500-5-V-AA PSD500-5-V-CH-AA 5 5 5 10 1/4 6 1/4 1/2 5/8 PSD500-5/7-V-AA PSD500-5/7-V-CH-AA 5 5 & 7 5 12 3/4 8 1/2 5/8 5/8 PSD500-7-V-AA PSD500-7-V-CH-AA 5 7 5 12 3/4 8 1/2 5/8 5/8 PSD600-5-V-AA PSD600-5-V-CH-AA 6 5 5 1/2 10 1/4 6 1/4 1/2 5/8 PSD600-7-V-AA PSD600-7-V-CH-AA 6 7 5 1/2 12 3/4 8 1/2 5/8 5/8 PSD800R-5-V-AA PSD800R-5-V-CH-AA 8 DIA 5 7 1/2 10 1/4 6 1/4 1/2 5/8 PSD800R-7-V-AA PSD800R-7-V-CH-AA 8 DIA 7 7 1/2 12 3/4 8 1/2 5/8 5/8 PSD800-5-V-AA PSD800-5-V-CH-AA 8 5 6 7/8 10 1/4 6 1/4 1/2 5/8 PSD800-7-V-AA PSD800-7-V-CH-AA 8 7 6 7/8 12 3/4 8 1/2 5/8 5/8 PSD-V-AA Material Aluminum Alloy Hardware Galvanized steel bolts and lockwashers for mounting. Yellow anodized aluminum bolts, nuts, and lockwashers. PSD-V-CH-AA F T B A TIGHT FIT SLIP FIT Notes • For Grade Five galvanized steel hardware, add "-GS5" to catalog number. EX: PSD400-7-V-AA-GS5 © 2011, AFL, all rights reserved. PP-3-00375, Revision 1, 12.9.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 478 345/500 kV Bus Supports 345/500 kV Bus Supports TYPE HPS-HV-AA Hook support is designed to be corona free for 345 kV and 500 kV service. Support is designed for slip or tight fit applications; for tight fit application bus is field welded to support. Ordering Information CATALOG NUMBER SPS / EHPS BOLT CIRCLE DIMENSIONS IN INCHES STANDARD WITH CHATTER SPRING A B L HPS250-3-HV-AA HPS250-3-HV-CH-AA 2 1/2 3 3 5 1/16 9 3/8 HPS300-3-HV-AA HPS300-3-HV-CH-AA 3 3 3 5/8 5 1/4 9 3/8 HPS350-5-HV-AA HPS350-5-HV-CH-AA 3 1/2 5 4 5 7/8 10 7/8 HPS400-5-HV-AA HPS400-5-HV-CH-AA 4 5 4 1/2 6 7/8 11 HPS400-7-HV-AA HPS400-7-HV-CH-AA 4 7 4 1/2 6 7/8 13 1/2 HPS500-5-HV-AA HPS500-5-HV-CH-AA 5 5 5 8 1/8 11 HPS500-7-HV-AA HPS500-7-HV-CH-AA 5 7 5 7 7/8 13 7/8 HPS600-5-HV-AA HPS600-5-HV-CH-AA 6 5 5 1/2 9 1/8 10 7/8 HPS600-7-HV-AA HPS600-7-HV-CH-AA 6 7 5 1/2 9 1/8 10 7/8 HPS800-5-HV-AA HPS800-5-HV-CH-AA 8 5 6 1/2 11 3/16 11 HPS800-10-HV-AA HPS800-10-HV-CH-AA 8 10 6 1/2 11 1/16 17 5/8 Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. Notes Weld in field for rigid support. L F A CUSTOMER PIPE 479 © 2011, AFL, all rights reserved. PP-3-00542, Revision 1, 5.18.18 Specifications are subject to change without notice. 345/500 kV Bus Supports www.AFLglobal.com or 800-890-8878 345/500 kV Bus Supports TYPE WPS-V-AA, WPS-V-CH-AA Welded Ring Bus Support Double ring support is designed to be corona free for 345 kV and 500 kV service. Support is designed to be slip or tight fit; for tight fit bus is field weld to support. Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. Notes • For a 5" pipe, with a 5" BC, high voltage, with a chatter spring, use WPS500-5-V-CH-AA. D W A continued ∅ B PAD DETAIL A PAD DETAIL B ∅ B ∅ C W 480 © 2011, AFL, all rights reserved. PP-3-00542, Revision 1, 5.18.18 Specifications are subject to change without notice. 345/500 kV Bus Supports 345/500 kV Bus Support www.AFLglobal.com or 800-890-8878 TYPE WPS-V-AA, WPS-V-CH-AA Welded Ring Bus Support Ordering Information CATALOG NUMBER SPS DETAIL DIMENSIONS IN INCHES STANDARD WITH CHATTER SPRING A B C D W WPS250-3-V-AA WPS250-3-V-CH-AA 2.5 A 4.13 3.00 - 7.25 1.50 WPS250-5-V-AA WPS250-5-V-CH-AA 2.5 A 4.13 5.00 - 10.00 1.50 WPS300-3-V-AA WPS300-3-V-CH-AA 3 A 3.63 3.00 - 9.13 2.00 WPS300-3/5-V-AA WPS300-3/5-V-CH-AA 3 B 3.63 3.00 5.00 10.38 2.00 WPS300-5-V-AA WPS300-5-V-CH-AA 3 A 3.63 5.00 - 10.38 2.00 WPS300-5/7-V-AA WPS300-5/7-V-CH-AA 3 B 3.63 5.00 7.00 12.88 2.00 WPS300-7-V-AA WPS300-7-V-CH-AA 3 A 3.63 7.00 - 12.88 2.00 WPS350-3-V-AA WPS350-3-V-CH-AA 3.5 A 4.00 3.00 - 9.13 2.00 WPS350-3/5-V-AA WPS350-3/5-V-CH-AA 3.5 B 4.00 3.00 5.00 10.38 2.00 WPS350-5-V-AA WPS350-5-V-CH-AA 3.5 A 4.00 5.00 - 10.38 2.00 WPS350-5/7-V-AA WPS350-5/7-V-CH-AA 3.5 B 4.00 5.00 7.00 12.88 2.00 WPS350-7-V-AA WPS350-7-V-CH-AA 3.5 A 4.00 7.00 - 12.88 2.00 WPS400-3-V-AA WPS400-3-V-CH-AA 4 A 4.50 3.00 - 9.13 2.00 WPS400-3/5-V-AA WPS400-3/5-V-CH-AA 4 B 4.50 3.00 5.00 10.38 2.00 WPS400-5-V-AA WPS400-5-V-CH-AA 4 A 4.50 5.00 - 11.00 2.25 WPS400-5/7-V-AA WPS400-5/7-V-CH-AA 4 B 4.50 5.00 7.00 12.88 2.00 WPS400-7-V-AA WPS400-7-V-CH-AA 4 A 4.50 7.00 - 12.88 2.00 WPS500-3/5-V-AA WPS500-3/5-V-CH-AA 5 B 5.00 3.00 5.00 10.38 2.00 WPS500-5-V-AA WPS500-5-V-CH-AA 5 A 5.03 5.00 - 11.00 2.00 WPS500-5/7-V-AA WPS500-5/7-V-CH-AA 5 B 5.00 5.00 7.00 12.88 2.00 WPS500-7-V-AA WPS500-7-V-CH-AA 5 A 5.00 7.00 - 12.88 2.00 WPS600-3/5-V-AA WPS600-3/5-V-CH-AA 6 B 5.50 3.00 5.00 10.38 2.00 WPS600-5-V-AA WPS600-5-V-CH-AA 6 A 5.50 5.00 - 11.50 2.50 WPS600-5/7-V-AA WPS600-5/7-V-CH-AA 6 B 5.50 5.00 7.00 12.88 2.00 WPS600-7-V-AA WPS600-7-V-CH-AA 6 A 5.50 7.00 - 12.88 2.00 481 © 2011, AFL, all rights reserved. PP-3-00540, Revision 1, 3.28.14 Specifications are subject to change without notice. 345/500 kV Bus Supports www.AFLglobal.com or 800-890-8878 345/500 kV Bus Supports TYPE WPSSL-V-AA Aluminum Welded Bus Support, Slide or Fixed Type Pipe or bus tube is welded to support. Designed for 500 kV service. The support is then bolted directly into the insulator. Bolt sleeves allow the whole support to slide on the insulator. Bolt sleeves for rigid fix support can be ordered. Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. Notes Add "-R" to catalog number for rigid fit order: WPSSL300-5-R-V-AA Add "-SR" for slip and rigid fix order: WPSSL300-5-SR-V-AA For chatter spring add "-CH" to catalog number order: WPSSL300-5-CH-V-AA 1/16 APPROX. SLIDE BUS SUPPORT ASSEMBLY 1 RIGID FIXED BUS SUPPORT ASSEMBLY 2 L T K MOVEMENT ±1 1/2 A BOLT CIRCLE F "-CH" CHATTER SPRING - ST. STEEL (FOR ASSEMBLY TYPE 1 ONLY) CUSTOMER PIPE 482 © 2011, AFL, all rights reserved. PP-3-00540, Revision 1, 3.28.14 Specifications are subject to change without notice. 345/500 kV Bus Supports 345/500 kV Bus Support www.AFLglobal.com or 800-890-8878 TYPE WPSSL-V-AA Aluminum Welded Bus Support, Slide or Fixed Type Ordering Information CATALOG NUMBER SPS ALUM BOLT CIRCLE DIMENSIONS IN INCHES BOLT SIZE STANDARD WITH CHATTER SPRING A F K L T WPSSL250-3-V-AA WPSSL250-3-CH-V-AA 2 1/2 3 3 1/8 4 3/4 5 1/2 8 1/2 1/2 1/2 WPSSL250-5-V-AA WPSSL250-5-CH-V-AA 2 1/2 5 3 1/8 6 3/4 7 1/2 10 1/2 1/2 5/8 WPSSL250-7-V-AA WPSSL250-7-CH-V-AA 2 1/2 7 3 1/8 8 3/4 9 1/2 12 1/2 1/2 3/4 WPSSL300-3-V-AA WPSSL300-3-CH-V-AA 3 3 3 5/8 4 3/4 5 1/2 8 1/2 1/2 1/2 WPSSL300-5-V-AA WPSSL300-5-CH-V-AA 3 5 3 5/8 6 3/4 7 1/2 10 1/2 1/2 5/8 WPSSL300-7-V-AA WPSSL300-7-CH-V-AA 3 7 3 5/8 8 3/4 9 1/2 12 1/2 1/2 3/4 WPSSL350-3-V-AA WPSSL350-3-CH-V-AA 3 1/2 3 4 4 3/4 5 1/2 8 1/2 5/8 1/2 WPSSL350-5-V-AA WPSSL350-5-CH-V-AA 3 1/2 5 4 6 3/4 7 1/2 10 1/2 5/8 5/8 WPSSL350-7-V-AA WPSSL350-7-CH-V-AA 3 1/2 7 4 8 3/4 9 1/2 12 1/2 5/8 3/4 WPSSL400-3-V-AA WPSSL400-3-CH-V-AA 4 3 4 1/2 4 3/4 5 1/2 8 1/2 5/8 1/2 WPSSL400-5-V-AA WPSSL400-5-CH-V-AA 4 5 4 1/2 6 3/4 7 1/2 10 1/2 5/8 5/8 WPSSL400-7-V-AA WPSSL400-7-CH-V-AA 4 7 4 1/2 8 3/4 9 1/2 12 1/2 5/8 3/4 WPSSL500-3-V-AA WPSSL500-3-CH-V-AA 5 3 5 4 3/4 5 1/2 8 1/2 5/8 1/2 WPSSL500-5-V-AA WPSSL500-5-CH-V-AA 5 5 5 6 3/4 7 1/2 10 1/2 5/8 5/8 WPSSL500-7-V-AA WPSSL500-7-CH-V-AA 5 7 5 8 3/4 9 1/2 12 1/2 5/8 3/4 WPSSL600-3-V-AA WPSSL600-3-CH-V-AA 6 3 5 1/2 4 3/4 5 1/2 8 1/2 5/8 1/2 WPSSL600-5-V-AA WPSSL600-5-CH-V-AA 6 5 5 1/2 6 3/4 7 1/2 10 1/2 5/8 5/8 WPSSL600-7-V-AA WPSSL600-7-CH-V-AA 6 7 5 1/2 8 3/4 9 1/2 12 1/2 5/8 3/4 WPSSL800R-3-V-AA WPSSL800R-3-CH-V-AA 8" O.D. 3 6 1/2 4 3/4 5 1/2 8 1/2 5/8 1/2 WPSSL800R-5-V-AA WPSSL800R-5-CH-V-AA 8" O.D. 5 6 1/2 6 3/4 7 1/2 10 1/2 5/8 5/8 WPSSL800R-7-V-AA WPSSL800R-7-CH-V-AA 8" O.D. 7 6 1/2 8 3/4 9 1/2 12 1/2 5/8 3/4 483 © 2011, AFL, all rights reserved. PP-3-00186, Revision 0, 3.3.11 Specifications are subject to change without notice. 345/500 kV Bus Supports www.AFLglobal.com or 800-890-8878 345/500 kV Bus Supports Vertical end support is designed to be corona free for 345 kV and 500 kV service. Slotted bolt holes in base provide for misalignment of insulator. B A C Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. TYPE 34700 EHV Welded Vertical Bus Support Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS & EPHS A B C 5" BOLT CIRCLE 34708-5 EHV 3 4.12 1.75 6.25 6.1 34709-5 EHV 3-1/2 4.69 2.00 6.50 6.4 34710-5 EHV 4 5.19 2.25 6.75 6.8 34712-5 EHV 5 6.25 2.75 7.25 7.5 34713-5 EHV 6 7.38 3.25 7.75 9.0 7" BOLT CIRCLE 34708-7 EHV 3 4.12 1.75 6.25 8.1 34709-7 EHV 3-1/2 4.69 2.00 6.50 8.4 34710-7 EHV 4 5.19 2.25 6.75 8.8 34712-7 EHV 5 6.25 2.75 7.25 9.5 34713-7 EHV 6 7.38 3.25 7.75 11.0 34715-7 EHV 8 OD 9 4.25 8.75 13.0 34716-7 EHV 8 9.38 4.25 8.75 13.0 CUSTOMER PIPE 484 © 2011, AFL, all rights reserved. PP-3-00583, Revision 0, 3.9.11 Specifications are subject to change without notice. 345/500 kV Bus Supports 345/500 kV Bus Support www.AFLglobal.com or 800-890-8878 TYPE WXBC-V-AA Welded Expansion Bus Support Rated for 345 kV Material Aluminum Alloy Hardware Galvanized steel mounting hardware included. Stainless steel bolts, lockwashers, and flatwashers. ∅ 29 1/4 1 1/2 G H G L NOMINAL A 2 1/2 1 1/2 2 1/2 CUSTOMER PIPE Notes For chatter spring add "-CH" to catalog number, order: WXBC500-5-V-CH-AA. For end plugs add "-WP" to catalog number, order: WXBC500-5-V-AA-WP. Ordering Information CATALOG NUMBER SPS SCHEDULE NUMBER BOLT CIRCLE DIMENSIONS IN INCHES STANDARD WITH CHATTER SPRING A G H L WXBC300-5-V-AA WXBC300-5-V-CH-AA 3 40 5 3 5/8 1 1/4 6 1/4 16 3/8 WXBC350-5-V-AA WXBC350-5-V-CH-AA 3 1/2 40 5 4 1 1/4 6 1/4 16 3/8 WXBC400-5-V-AA WXBC400-5-V-CH-AA 4 40 5 4 1/2 2 6 1/4 18 1/4 WXBC400-7-V-AA WXBC400-7-V-CH-AA 4 40 7 4 1/2 2 8 1/2 20 1/2 WXBC400E-5-V-AA WXBC400E-5-V-CH-AA 4 80 5 4 1/2 2 6 1/4 18 1/4 WXBC500-5-V-AA WXBC500-5-V-CH-AA 5 40 5 5 2 6 1/4 18 1/4 WXBC500E-5-V-AA WXBC500E-5-V-CH-AA 5 80 5 5 2 6 1/4 18 1/4 WXBC500-7- V-AA WXBC500-7-V-CH-AA 5 40 7 5 2 8 1/2 20 1/2 WXBC600-5-V-AA WXBC600-5-V-CH-AA 6 40 5 5 1/2 2 6 1/4 18 1/4 WXBC600-7-V-AA WXBC600-7-V-CH-AA 6 40 7 5 1/2 2 8 1/2 20 1/2 WXBC600E-5-V-AA WXBC600E-5-V-CH-AA 6 80 5 5 1/2 2 6 1/4 18 1/4 WXBC800E-5-V-AA WXBC800E-5-V-CH-AA 8 80 5 6 7/8 2 6 1/4 18 1/4 WXBC800R-5-V-AA WXBC800R-5-V-CH-AA 8" O.D. - 5 7 1/2 2 6 1/4 18 1/4 Each item should be either SCH 40 or SCH 80 (E). 489 © 2011, AFL, all rights reserved. PP-3-00156, Revision 0, 3.3.11 Specifications are subject to change without notice. 345/500 kV Bus Supports www.AFLglobal.com or 800-890-8878 345/500 kV Bus Supports Single ring support is designed to be corona free for 345 kV and 500 kV service. Support is designed to be slip or tight fit; for tight fit bus is field welded to support. Stainless steel chatter springs are supplied as standard item for slip fit applications. TYPE 15700 EHV Support, Bolted, Slip & Fixed Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS & EPHS A B C 5" BOLT CIRCLE 15708-5 EHV 3 3.00 4.44 3.62 3.2 15709-5 EHV 3 1/2 3.50 5.00 4.00 3.8 15710-5 EHV 4 4.00 5.56 4.50 4.6 15712-5 EHV 5 5.00 6.44 5.00 5.4 15713-5 EHV 6 6.00 7.62 5.50 7.7 7" BOLT CIRCLE 15708-7 EHV 3 3.00 4.44 3.62 4.3 15709-7 EHV 3 1/2 3.50 5.00 4.00 4.9 15710-7 EHV 4 4.00 5.56 4.50 5.7 15712-7 EHV 5 5.00 6.44 5.00 6.5 15713-7 EHV 6 6.00 7.62 5.50 8.8 Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. B A C CUSTOMER PIPE 490 © 2011, AFL, all rights reserved. PP-3-00173, Revision 1, 2.8.18 Specifications are subject to change without notice. 345/500 kV Bus Supports 345/500 kV Bus Support www.AFLglobal.com or 800-890-8878 Wave trap support is designed to be corona free for 345 kV and 500 kV service. Support is combination wave trap support and tight fit bus support designed with standard bolt circle pattern on top and bottom mounting surfaces. Support is supplied with bus clamp hardware and two sets of insulator mounting hardware. Distance from the centerline of the bus to top and bottom mounting surfaces is standard NEMA center line distance. TYPE 32800 EHV Support, Bolted, Wave Trap-Type Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS AND EPHS A B C D 5" BOLT CIRCLE 32807-5EHV 2 1/2 10.50 6.00 3.13 2.00 7.8 32808-5 EHV 3 10.50 7.25 3.62 2.00 8.8 32809-5 EHV 3 1/2 11.00 7.75 4.00 2.25 13.1 32810-5 EHV 4 11.00 8.25 4.50 2.25 15.8 32812-5 EHV 5 11.50 9.50 5.00 2.50 19.1 32813-5 EHV 6 11.50 10.50 5.50 2.50 19.7 7" BOLT CIRCLE 32808-7 EHV 3 12.75 7.25 3.62 2.00 11.0 32809-7 EHV 3 1/2 13.25 7.75 4.00 2.25 14.9 32810-7 EHV 4 13.25 8.25 4.50 2.25 17.6 32812-7 EHV 5 13.75 9.50 5.00 2.50 20.9 32813-7 EHV 6 13.75 10.50 5.50 2.50 21.5 Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. B A C C D 5/8-11 ALUM. HARDWARE CUSTOMER PIPE 491 © 2011, AFL, all rights reserved. PP-3-00196. Revision 3, 4.25.19 Specifications are subject to change without notice. 345/500 kV Bus Supports www.AFLglobal.com or 800-890-8878 345/500 kV Bus Supports TYPE 35700 EHV Expansion support is designed to be corona free for 500 kV service. Rope lay expansion provides for 2.6" (66 mm) of expansion or contraction. Dimension "D" shown is for an installation temperature of 68° F (20° C). For other installation temperatures, see the General Information Section on page 11 in the Substation Accessories catalog. Stainless steel chatter springs are supplied; weld end plugs can be supplied if required. Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS & EPHS A B C D M N 5" BOLT CIRCLE 35708-5 EHV 3 10.50 20.50 3.62 3.25 3.62 1.75 21.0 35709-5 EHV 3 1/2 11.00 21.94 4.00 3.25 3.88 1.75 22.0 35710-5 EHV 4 11.00 21.94 4.50 3.25 3.88 1.75 23.0 35712-5 EHV 5 11.50 20.62 5.00 3.25 4.12 1.75 26.0 35713-5 EHV 6 11.50 23.12 5.50 3.25 4.12 1.75 34.0 35714-5 EHV 8 12.75 25.00 6.91 3.25 6.50 1.75 40.0 7" BOLT CIRCLE 35708-7 EHV 3 12.75 22.75 3.62 3.25 4.75 1.75 22.0 35709-7 EHV 3 1/2 13.25 24.19 4.00 3.25 5.00 1.75 23.0 35710-7 EHV 4 13.25 24.19 4.50 3.25 5.00 1.75 24.0 35712-7 EHV 5 13.75 22.88 5.00 3.25 5.25 1.75 27.0 35713-7 EHV 6 13.75 25.38 5.50 3.25 5.25 1.75 35.0 Material Aluminum Alloy Mounting Hardware Galvanized steel bolts and lockwashers. B D A C CUSTOMER PIPE M N C Notes • For end plugs, add "-WP" to catalog number for Schedule 40 pipe, “-WPE” for Schedule 80. EX: 35712-7EHV-WPE.
