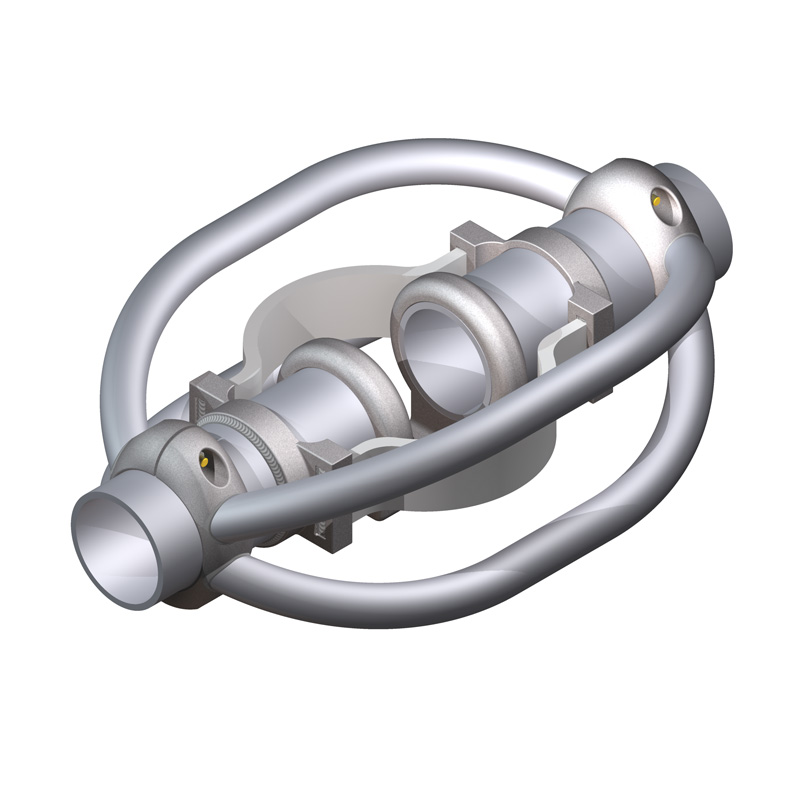

603 765 kV Aluminum © 2011, AFL, all rights reserved. PP-3-00624, Revision 10, 11.10.2022 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 765 kV Aluminum 765 kV 765 kV Table of Contents 603 Pictorial Index 605 Bus Supports Type B6998 Series 607 Type B7107 Series 608 Type B7582-A Series 609 Type C7009 Series 610 Couplers Type B7070 Series 611 Type WWC-AA, WWC-E-AA 612 Corona Bells Type 34443, CXBV600 Series 613 Tee Connectors Type BAC-EHV-AA 614 Type BCW-EHV-AA 615 Type B7568-A Series 616 Type B7071 Series 617 Type B7072 Series 618 Type B7095 Series 619 Type B7006 Series 620 Type B7875 Series 621 Type B7096-A Series 622 Type B7566, B7565 Series 623 Type B7876, B7882 Series 624 Type WT-EHV-AA 625 Type WRP2CA-20-EHV-AA, WRP2CA-45-EHV-AA 626 Terminal Connectors Type WPC-4S4-AA-WH, WPCA-4S4-90-AA-WH 627 Type WPCA-20-AA-WH, WPCA-45-AA-WH, WPCA-75-AA-WH 628 Type WPCA-15L-AA-WH, WPCA-15R-AA-WH, WPCA-15L-20-AA-WH, WPCA-15R-20-AA-WH 629 Type B7094, B7567 Series 630 Type B7001 Series 631 Type WP2CA-45-EHV-AA 632 Type B7583-A Series 633 Type B7878-A Series 634 Ground Stud Type 34640-EHV Series 635 Spacer Clamps Type C6999-A, B7073 Series 636 Vibration Damper Type 1705, B7384 Series 637 Stud Connector Type B7004-A Series 638 Type B7074-A Series 639 Type B7108-A Series 640 Type B7879-A, B7880 Series 641 Table of Contents 604 765 kV Aluminum 765 kV Aluminum © 2011, AFL, all rights reserved. PP-3-00624, Revision 10, 11.10.2022 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 605 Pictorial Index Pictorial Index © 2011, AFL, all rights reserved. PP-3-00624, Revision 8, 4.21.2021 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 765 kV Bus Supports B6998 SERIES PG 607 B7101 SERIES PG 608 B7582 SERIES PG 609 C7009 SERIES PG 610 765 kV Couplers B7070 SERIES PG 611 WWC-AA, WWC-E-AA PG 612 765 kV Corona Bells 34433 SERIES PG 613 CXBV600 SERIES PG 613 765 kV Tee Connectors BAC-EHV-AA PG 640 BCW-EHV-AA PG 615 B7568-A SERIES PG 616 B7071 SERIES PG 617 B7072 SERIES PG 618 B7095 SERIES PG 619 B7006 SERIES PG 620 B7875 SERIES PG 621 B7096-A SERIES PG 622 B7566 SERIES PG 623 B7565 SERIES PG 623 B7876 SERIES PG 624 B7882 SERIES PG 624 WT-EHV-AA PG 625 WRP2CA-20-EHV-AA PG 626 WRP2CA-45-EHV-AA PG 626 765 kV Terminal Connectors WPC-4S4-AA-WH PG 627 WPCA-4S4-90-AA-WH PG 627 Pictorial Index 606 Pictorial Index © 2011, AFL, all rights reserved. PP-3-00624, Revision 8, 4.21.2021 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 WPCA-20-AA-WH PG 628 WPCA-45-AA-WH PG 628 WPCA-75-AA-WH PG 629 WPCA-15L-AA-WH PG 629 WPCA-15R-AA-WH PG 629 WPCA-15R-20-AA-WH PG 629 WPCA-15L-20-AA-WH PG 629 B7094 SERIES PG 630 B7567 SERIES PG 630 B7001 SERIES PG 631 WP2CA-45-EHV-AA PG 632 B7583-A SERIES PG 633 B7878-A SERIES PG 634 765 kV Ground Jumpers 34640-EHV SERIES PG 635 765 kV Spacer Clamps B7073 SERIES PG 636 C6999-A SERIES PG 636 765 kV Vibration Dampers 1705 SERIES PG 637 B7384 SERIES PG 637 765 kV Stud Connectors B7004-A SERIES PG 638 B7074-A SERIES PG 639 B7108-A SERIES PG 640 B7879-A SERIES PG 641 B7880 SERIES PG 641 607 765 kV Bus Supports 765 kV Bus Supports © 2011, AFL, all rights reserved. PP-3-00218, Revision 0, 3.11.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE B6998 Series Bolted Support, Slip or Fixed Fit Recommended for Voltages Up to 765 kV Support is designed to be corona free for 765 kV operation Support can be supplied for fixed fit or slip fit applications For slip fit applicaton, stainless steel chatter springs are supplied Aluminum mounting hardware is supplied as standard; galvanized steel can be furnished on request Ordering Information CATALOG NUMBERS CONDUCTOR SIZE TUBULAR BUS SPS & EHPS SLIP OR FIXED BOLT CIRCLE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A B C B6998-A 6" Fixed 7" 16 28 10 55 5 50 27 0 B6998-B 6" Slip 7" 16 28 10 55 5 50 27 6 B6998-C 5" Fixed 7" 16 50 9 62 5 00 25 0 B6998-D 5" Slip 7" 16 50 9 62 5 00 25 6 B6998-E 8" O D Fixed 7" 16 50 12 06 5 75 30 0 B6998-F 8" O D Slip 7" 16 50 12 06 5 75 30 6 B6998-G 6" Fixed 5" 14 50 10 55 5 50 26 5 B6998-H 6" Slip 5" 14 50 10 55 5 50 27 7 B6998-K 6" Fixed 3" 12 25 10 55 5 50 24 3 5/8-11 ALUM HARDWARE 4 B A C CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers Galvanized steel mounting hardware included 765 kV Bus Supports 608 765 kV Bus Supports © 2011, AFL, all rights reserved. PP-3-00219, Revision 1, 9.4.18 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE B7107 Series Welded Support, Expansion Type Recommended for Voltages Up to 765 kV Expansion support is designed to be corona free for 765 KV operation Expansion support is designed for maximum bus run of 150 feet (46 m) operating between a minimun temperature of -20°F (-28 9°C) and a maximum temperature of 200°F (93 3°C) Assembly consists of support, expansion straps, corona rings and hardware Stainless steel chatter springs are supplied with corona ring and support assembly Aluminum mounting hardware is supplied as standard, galvanized steel can be furnished on request Weldment end plugs can be furnished if required Ordering Information CATALOG NUMBERS CONDUCTOR SIZE TUBULAR BUS SPS & EHPS BOLT CIRCLE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS M N P Q R B7107-A 6" 7" 5 25 4 81 36 75 23 38 5 50 66 6 B7107-B 6" 5" 4 12 5 94 36 75 23 38 5 50 64 3 B7107-C 5" 7" 6 38 4 00 37 34 20 75 5 00 45 4 5/8-11 ALUM HARDWARE M Q 2 25 MIN N TIGHT FIT SLIP FIT CUSTOMER PIPE 24 00 P FIELD WELD R 12 00 FIELD WELD CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers Galvanized steel mounting hardware included 609 765 kV Bus Supports © 2011, AFL, all rights reserved. PP-3-00232, Revision 0, 3.14.11 Specifications are subject to change without notice. 765 kV Bus Supports www.AFLglobal.com or 800-890-8878 TYPE B7582-A Series Tee Connector, Bolted, Welded Expansion Type Recommended for Voltages Up to 765 kV Expansion tee is designed to be corona free for 765 KV operation Expansion tee is designed for maximum bus run of 150 feet (46M) operating between a minimum temperature of -20°F (-28 9°C) and maximum temperature of 200°F (93 3°C) Assembly consists of weld tee, guide insert, expansion straps, corona rings and hardware Stainless steel chatter springs are supplied with corona ring assembly Ordering Information CATALOG NUMBERS CONDUCTOR SIZE TUBULAR BUS NOMINAL WEIGHT LBS RUN TAP B7582-A 5" 6" 74 9 6" 6" 74 9 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers CUSTOMER PIPE 18 75 IN TIGHT FIT SLIP FIT 47 00 IN 3 875 IN FIELD WELD 36 75 IN 12 00 IN 3 25 IN 24 00 IN CUSTOMER PIPE CUSTOMER PIPE 765 kV Bus Supports 610 765 kV Bus Supports © 2011, AFL, all rights reserved. PP-3-00266, Revision 0, 3.14.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE C7009 Series Bi-Spacer Support for Strained Conductor Recommended for Voltages Up to 765 kV Support is designed to be corona free for 765 KV operation Aluminum insulator mounting hardware is supplied as standard; galvanized steel hardware can be furnished on request Ordering Information CATALOG NUMBERS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS CONDUCTOR SIZE BOLT CIRCLE A O.D. C7009-A 2 4 7" 18 00 11 4 C7009-B 2 311 7" 17 75 11 4 C7009-C 2 4 5" 18 00 11 4 4 3 1 / 4 1/2-13 ALUM HARDWARE A CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers Galvanized steel mounting hardware included 611 765 kV Couplers © 2011, AFL, all rights reserved. PP-3-00222, Revision 0, 3.14.11 Specifications are subject to change without notice. 765 kV Couplers www.AFLglobal.com or 800-890-8878 TYPE B7070 Series Coupler, Bolted, For Tubular Bus Conductor Recommended for Voltages Up to 765 kV Bolted coupler is designed to be corona free for 765kV operation Bolt heads are captive for one wrench installation Contact surfaces are protected with oxide inhibitor Ordering Information CATALOG NUMBERS CONDUCTOR SIZE TUBULAR BUS SPS & EHPS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS B C B7070-A 6 10 38 8 08 40 6 B7070-B 5 9 56 7 06 36 8 CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, and lockwashers 5/8-11 ALUM HARDWARE B C 15 88 CUSTOMER PIPE © 2011, AFL, all rights reserved. PP-3-00880, Revision 0, 4.21.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 612 765 kV Couplers 765 kV – Couplers Coupler is designed to make connections with high mechanical strength and high electrical conductivity TYPE WWC-AA, WWC-E-AA Aluminum Welded Coupler Rated for 765 kV Ordering Information CATALOG NUMBER SPS / EPHS DIMENSIONS (INCHES) SCHEDULE 40 SCHEDULE 80 A S WWC600-AA WWC600E-AA 6 24 5/8 Material Aluminum tubing Hardware Aluminum cotter pin COTTER PIN A/2 A S APPROX CUSTOMER PIPE 613 765 kV Corona Bells © 2011, AFL, all rights reserved. PP-3-00181, Revision 1, 12.16.13 Specifications are subject to change without notice. 765 kV Corona Bells www.AFLglobal.com or 800-890-8878 34433-EHV TYPE 34433, CXBV600 Series End Plug For Round Tubular Bus Recommended for Voltages Up to 765 kV Corona bell is designed to be corona free for 765 kV service CXBV600-21-EHV-AA C B WELDED 34433 EHV A B BOLTED CXBV600-21-EHV-AA C A Ordering Information CATALOG NUMBERS CONDUCTOR SIZE TUBULAR BUS SPS & EHPS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A B C 34433EHV 6 17 00 13 25 3 88 18 8 CXBV600-21-EHV-AA 6 21 00 22 12 20 90 30 7 CUSTOMER PIPE Material Aluminum Alloy Hardware Stainless steel socket set screws (for Bolted style only) 765 kV Tee Connectors 614 765 kV Tee Connectors © 2011, AFL, all rights reserved. PP-3-00238, Revision 0, 3.14.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE BAC-EHV-AA Recommended for Voltages Up to 765 kV Bolted tee connector is designed to be corona free for 765 kV operation Ordering Information CATALOG NUMBER CABLE SIZE RUN TAP BAC240R-135A-EHV-AA 2 40 DIA ALUM 1351, 5 (45/7) ACSR BAC240R-240R-EHV-AA 2 40 DIA ALUM 2 40 DIA ALUM BAC240R-250-EHV-AA 2 4 DIA ALUM 2500 MCM AL 2156 ACSR BAC250-250-EHV-AA 2500 MCM AL 2156 ACSR 2500 MCM AL 2156 ACSR Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers 11 6 1 / 8 6 5 / 16 615 © 2011, AFL, all rights reserved PP-3-00246, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 765 kV Tee Connectors TYPE BCW-EHV-AA Tee Connector Bolted tee connector is designed to be corona free for 765 kV operation Ordering Information CATALOG NUMBER CABLE SIZE DIMENSIONS IN INCHES BOLT SIZE RUN TAP A C D E BCW95A-240R-EHV-AA 715 5(26/7) - 954(54/7) MCM 2 4 OD 8 9 1/8 2 3/4 5 1/2 1/2 BCW135A-240R-EHV-AA 1192 5(54/19) - 1351 5(45/7) MCM 2 4 OD 8 9 1/2 2 3/4 5 1/2 1/2 BCW240R-95A-EHV-AA 2 4 OD 715 5(26/7) - 954(54/7) MCM 8 9 1/2 1 3/4 6 5/8 BCW240R-135A-EHV-AA 2 4 OD 1192 5(54/19) - 1351 5(45/7) MCM 8 9 1/2 2 6 5/8 BCW240R-240R-EHV-AA 2 4 OD 2 4 OD 12 10 2 3/4 10 5/8 Material Aluminum alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers 1/2-13 C D FIELD WELD A E 8 BOLT SIZE 765 kV Tee Connectors 616 © 2011, AFL, all rights reserved PP-3-00231, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 TYPE B7568-A Series Tee Connector, Bolted, For Tubular Bus Conductor Recommended for Voltages up to 765 kV Bolted tee connector is designed to be corona free for 765 kV operation Bolt heads are captive for one wrench installation Contact surfaces are protected with oxide inhibitor Ordering Information CATALOG NUMBER CONDUCTOR SIZE TUBULAR BUS SPS & EHPS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS RUN TAP A B C D B7568-A 6" 6" 20 95 8 18 10 66 10 07 44 0 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers C D A 15 62 B CUSTOMER PIPE RUN AND TAP CUSTOMER PIPE 617 © 2011, AFL, all rights reserved PP-3-00223, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 765 kV Tee Connectors TYPE B7071 Series Welded Tee Adapter, NPS to Two Conductors Recommended for Voltages up to 765 kV Bolted adapter is designed to be corona free for 765 KV operation Assembly consists of bolted end connector, two terminals, corona shields and hardware Bolt heads are captive for one wrench installation Ordering Information CATALOG NUMBER CONDUCTOR SIZE TUBULAR BUS TERMINAL ANGLE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS STRAIN BUS A B B7071-A 6" 2 4 STR 10 62 8 12 51 1 B7071-B 6" 2 4 20° 10 62 8 12 50 9 B7071-C 5" 2 4 STR 9 56 7 06 49 4 B7071-D 5" 2 4 20° 9 56 7 06 49 2 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lock washers 18 B 10 6 66 23 66 17 06 FIELD WELD 20 ° 6 22 8 75 CUSTOMER PIPE A 765 kV Tee Connectors 618 © 2011, AFL, all rights reserved PP-3-00224, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 Ordering Information CATALOG NUMBER CONDUCTOR SIZE TUBULAR BUS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS & EHPS STRAIN BUS A B B7072-A 6" 2 4 10 66 8 12 47 1 B7072-B 5" 2 4 9 50 7 06 44 4 CUSTOMER PIPE 18 A 10 6 66 23 66 11 19 FIELD WELD 6 22 B CUSTOMER PIPE TYPE B7072 Series Welded Tee Adapter, NPS to Two Conductors Recommended for Voltages up to 765 kV Bolted adapter is designed to be corona free for 765 KV operation Assembly consists of bolted end connector, two terminals, corona shields and hardware Bolt heads are captive for one wrench installation Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 619 © 2011, AFL, all rights reserved PP-3-00226, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 765 kV Tee Connectors TYPE B7095 Series Tee Adapter – 45 ° , Bolted, NPS to Two Conductor Bundle Recommended for Voltages up to 765 kV Bolted 45° tee adapter is designed to be corona free for 765 kV operation Assembly consists of bolted 45° tee connector, two terminals, corona shields and hardware Bolt heads are captive for one wrench installation Contact surfaces are protected with oxide inhibitor Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS TUBULAR BUS SPS & EHPS STRAIN BUS B C B7095-A 6" 2 4 10 66 8 12 46 8 B7095-B 5" 2 4 9 50 7 06 44 1 C 10 00 B FIELD WELD 6 22 18 00 6 66 5/8-11 ALUM HARDWARE 23 66 CUSTOMER PIPE CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 765 kV Tee Connectors 620 © 2011, AFL, all rights reserved PP-3-00221, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 TYPE B7006 Series Tee Adapter, Welded, NPS to Conductor Bundle Recommended for Voltages up to 765 kV Welded end adapter is designed to be corona free for 765 kV operation Assembly consists of welded end connector, two or three terminals, corona shields and hardware Ordering Information CATALOG NUMBER CONDUCTOR SIZE TERMINAL ANGLE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS TUBULAR BUS SPS & EHPS STRAIN A B C MIN MAX B7006-A 6 2 4 STR 11 19 7 56 3 25 32 8 B7006-B 6 2 4 20° 11 19 7 56 3 25 32 6 B7006-C 5 2 4 STR 10 69 6 38 2 75 30 6 B7006-D 5 2 4 20 10 69 6 38 2 75 30 4 B7006-E 6 1 361 1 423 STR 11 19 7 56 3 25 32 8 B7006-F 6 1 361 1 423 20° 11 19 7 56 3 25 32 6 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers C A 6 66 18 00 FIELD WELD 20 ° 6 22 23 66 CUSTOMER PIPE B 621 © 2011, AFL, all rights reserved PP-3-00234, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 765 kV Tee Connectors Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS TUBULAR BUS SPS & EHPS STRAIN BUS DIAMETER A B C B7875-A 6" 1 981 - 2 042 12 38 7 56 3 25 52 5 A 24 88 C 22 09 7 25 FIELD WELD B 18 00 CUSTOMER PIPE TYPE B7875 Series Tee Adapter, Welded, NPS to Conductor Bundle Recommended for Voltages up to 765 kV Welded end adapter is designed to be corona free for 765 kV operation Assembly consists of welded end connector, two or three terminals, corona shields and hardware Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 765 kV Tee Connectors 622 © 2011, AFL, all rights reserved PP-3-00227, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 TYPE B7096-A Series Adapter, Welded, NPS to Three Conductor Bundle Recommended for Voltages up to 765 kV Welded 45° end adapter is designed to be corona free for 765 kV operation Assembly consists of 45° elbow, end connector, two terminals, corona shields and hardware Connector angle may be rotated to permit 45° take-off for horizontal or vertical planes Ordering Information CATALOG NUMBER CONDUCTOR SIZE NOMINAL WEIGHT LBS TUBULAR BUS SPS & EHPS STRAIN BUS B7096-A 6" 2 4 46 2 18 00 IN 23 66 IN FIELD WELD 6 22 IN 6 66 IN FIELD WELD 45 ° 3 25 CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 623 © 2011, AFL, all rights reserved PP-3-00230, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 765 kV Tee Connectors TYPE B7566, B7565 Series Tee Adapter, Welded, NPS to Two Conductors Recommended for Voltages up to 765 kV Welded tee adapter is desgined to be corona free for 765 kV operation Assembly consists of welded tee connector, two terminals and corona shield Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS TUBULAR BUS SPS & EHPS STRAIN BUS A B B7566-A 5" 2 4 11 31 8 62 27 0 6" B7565-A 5" 11 97 27 8 6" B7566-A B7565-A Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers A FACTORY WELD 6 22 18 00 6 66 23 66 FIELD WELD B B7566-A A 6 22 18 00 6 66 23 66 FIELD WELD B B7565-A CUSTOMER PIPE CUSTOMER PIPE CUSTOMER PIPE CUSTOMER PIPE 765 kV Tee Connectors 624 © 2011, AFL, all rights reserved PP-3-00235, Revision 1, 3 21 17 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 TYPE B7876, B7882 Series Tee Adapter, Welded, NPS to Three or Four Conductor Bundle Recommended for Voltages up to 765 kV Welded tee adapter is designed to be corona free for 765 kV operation Assembly consists of welded tee connector, three or four terminals and corona shields Ordering Information CATALOG NUMBER CONDUCTOR SIZE NOMINAL WEIGHT LBS NUMBER OF STRAIN BUS TUBULAR BUS SPS & EHPS STRAIN BUS B7876-A 5" 1 981 - 2 042 47 9 3 6" B7882-A 5" 1 737 - 1 792 68 3 4 6" B7882-B 5" 1 361 - 1 423 68 3 4 6" B7882-C 5" 1 258 - 1 340 68 3 4 6" B7876-A B7882-A 6 31 IN FIELD WELD 7 25 IN 11 97 IN 18 00 IN 24 88 IN 22 09 IN 6 31 IN FIELD WELD 7 25 IN 11 97 IN 18 00 IN 25 00 IN CUSTOMER PIPE CUSTOMER PIPE CUSTOMER PIPE Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 625 765 kV – Tee Connectors © 2011, AFL, all rights reserved. PP-3-00552, Revision 1, 11.8.2022 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 765 kV Tee Connectors TYPE WT-EHV-AA Tee Connector Recommended for Voltages up to 765 kV Welded tee connector is designed to be corona free for 765 kV service Ordering Information CATALOG NUMBER SPS DIMENSIONS IN INCHES A C D WT600-600-EHV-AA 6 6 13/16 3 1/2 9 7/8 C FIELD WELD A D Material Aluminum Alloy CUSTOMER PIPE 765 kV Tee Connectors 626 © 2011, AFL, all rights reserved PP-3-00543, Revision 0, 3 14 11 Specifications are subject to change without notice 765 kV Tee Connectors www.AFLglobal.com or 800-890-8878 WRP2CA-20-EHV-AA TYPE WRP2CA-20-EHV-AA, WRP2CA-45-EHV-AA Recommended for Voltages up to 765 kV Tee connector is designed to be corona free for 765 kV service Ordering Information CATALOG NUMBER SPS CONDUCTOR DIAMETER WRP2CA-600-240R-18-45-EHV-AA 6 2 4 WRP2CA-600-240R-18-20-EHV-AA 6 WRP2CA-45-EHV-AA FIELD WELD 45 ° 4 WRP2CA-45-EHV-AA WRP2CA-20-EHV-AA 20 ° 26 5 / 8 3 1 / 2 18 26 3 / 4 FIELD WELD ∅ 4 1 1 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers CUSTOMER PIPE CUSTOMER PIPE 627 765 kV Terminal Connector © 2011, AFL, all rights reserved. PP-3-00530, Revision 0, 3.14.11 Specifications are subject to change without notice. 765 kV Terminal Connectors www.AFLglobal.com or 800-890-8878 WPC-4S4-AA-WH TYPE WPC-4S4-AA-WH, WPCA-4S4-90-AA-WH Welded Terminal Recommended for Voltages up to 765 kV Terminal pad is designed to be corona free for 765 kV operation Ordering Information CATALOG NUMBER ACSR RANGE FIGURE NUMBER DIMENSIONS IN INCHES A B C T WPC95A-4S4-AA-WH 715 5(26/7) - 954(45/7) MCM 1 6 1/4 1 3/4 1 1/2 1 WPCA95A-4S4-90-AA-WH 715 5(26/7) - 954(45/7) MCM 2 6 1 3/4 2 5/8 WPC135A-4S4-AA-WH 1192 5(54/19) - 1351 5(45/7) MCM 1 6 1/2 2 1 5/8 5/8 WPCA135A-4S4-90-AA-WH 1192 5(54/19) - 1351 5(45/7) MCM 2 5 5/8 2 2 1/4 5/8 WPC240R-4S4-AA-WH 2515(76/19) MCM 1 7 1/4 2 3/4 2 1/2 1 WPCA240R-4S4-90-AA-WH 2515(76/19) MCM 2 8 2 3/4 3 1 WPCA-4S4-90-AA-WH Material Aluminum Alloy A WPCA-4S4-90-AA-WH ∅ 11 / 16 4 2 WPC-4S4-AA-WH 1 2 A ∅ 11 / 16 4 2 1 2 B T C B T C FIELD WELD FIELD WELD FIG 2 FIG 1 765 kV Terminal Connectors 628 © 2011, AFL, all rights reserved PP-3-00533, Revision 1, 12 16 13 Specifications are subject to change without notice 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 WPCA-20-AA-WH TYPE WPCA-20-AA-WH, WPCA-45-AA-WH, WPCA-75-AA-WH Ordering Information CATALOG NUMBER ACSR RANGE DIMENSIONS IN INCHES B T WPCA95A-4S4-75-AA-WH 715 5(26/7) - 954(45/7) MCM 1 3/4 5/8 WPCA135A-4S4-75-AA-WH 1192 5(54/19) - 1351 5(45/7) MCM 2 5/8 WPCA240R-4S4-20-AA-WH 2034(72/7) - 2312(76/19) MCM 2 3/4 1 WPCA240R-4S4-45-AA-WH 2034(72/7) - 2312(76/19) MCM 2 3/4 1 WPCA-45-AA-WH WPCA-75-AA-WH WPCA-20-AA-WH ∅ 11 / 16 4 1 / 4 2 1 20 ° B T FIELD WELD WPCA-75-AA-WH WPCA-45-AA-WH 75 ° 45 ° B T B T 2 4 Terminal pad is designed to be corona free for 765 kV operation Material Aluminum Alloy 629 © 2011, AFL, all rights reserved PP-3-00531, Revision 1, 12 16 13 Specifications are subject to change without notice 765 kV Terminal Connectors 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 WPCA-15L-AA-WH TYPE WPCA-15L-AA-WH, WPCA-15R-AA-WH, WPCA-15L-20-AA-WH, WPCA-15R-20-AA-WH Welded Terminal Angled welded terminal is designed for 2 4 diameter Aluminum conductor Ordering Information CATALOG NUMBER REFERENCE DRAWINGS WPCA-15L-AA-WH D-4475 WPCA-15R-AA-WH D-4476 WPCA-15L-S1-AA-WH D-4491 WPCA-15R-S1-AA-WH D-4492 WPCA-15R-AA-WH WPCA-15L-20-AA-WH WPCA-15R-20-AA-WH PAD DIMENSIONS WPCA240-4S4-15L-AA-WH ∅ 11 / 16 4 2 3 / 4 1 2 FIELD WELD 15 ° 15 ° WPCA240R-4S4-15R-AA-WH WPCA240-4S4-15L-AA-WH 15 ° 15 ° WPCA240R-4S4-15R-AA-WH 2 1 / 2 20 ° 2 3 / 4 1 FIELD WELD 4 1 / 2 1 2 Material Aluminum Alloy 765 kV Terminal Connectors 630 © 2011, AFL, all rights reserved PP-3-00217, Revision 1, 12 16 13 Specifications are subject to change without notice 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 B7094-A TYPE B7094, B7567 Series End Terminal, Welded, NPS to Flat Pad Recommended for Voltages up to 765 kV Terminal is designed to be corona free for 765 kV operation when bolted to B7001 terminal connectors Assembly consists of terminal and aluminum terminal hardware B7567-A Ordering Information CATALOG NUMBER FIG. NO. SPS / EHPS DIMENSIONS IN INCHES A T B7094-A 3 6 9 1 B7094-B 3 6 9 1 1/4 B7094-C 2 6 5 1 B7094-D 1 6 4 1 B7094-E 2 6 6 1 1/4 B7567-A 3 6 9 1 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers B7094 B7567 T 3 25 2 2 FIELD WELD 10 12 3 25 FIELD WELD 7 52 8 84 T 1 1/4 4 1/2 ∅ 11/16 2 2 1/2 A FIG. 3 A FIG. 2 1 3/4 1 3/4 1 3/4 4 1/2 1 1/8 ∅ 9/16 A FIG. 1 1 3/4 1 1/8 1 3/4 4 1/2 ∅ 9/16 CUSTOMER PIPE CUSTOMER PIPE 45 ° 631 © 2011, AFL, all rights reserved PP-3-00228, Revision 2, 9 25 18 Specifications are subject to change without notice 765 kV Terminal Connectors 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 TYPE B7001 Series Recommended for Voltages up to 765 kV Terminal connector is designed to be corona free for 765 kV operation when bolted to equipment terminal Assembly consists of connector, two terminals, corona shield and hardware Ordering Information CATALOG NUMBER CONDUCTOR SIZE TERMINAL ANGLE NOMINAL WEIGHT LBS FIG. NO. STRAIN BUS DIAMETER IN INCHES B7001-A 2 4 STR 28 0 1 B7001-B 2 4 20° 28 0 1 B7001-6N4-A 2 4 STR 28 0 2 24 2 2 18 9 66 4 50 9 00 2 50 1 25 2 6 32 20 ° Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 1 25 0 56 9 00 1 75 1 75 1 13 1 75 4 50 SYM. FIG. 1 FIG. 2 0 69 ∅ ∅ 765 kV Terminal Connectors 632 © 2011, AFL, all rights reserved PP-3-00527, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 TYPE WP2CA-45-EHV-AA Series Corona Free Terminal Connector Recommended for Voltages up to 765 kV Terminal connector is designed to be corona free for 765 kV operation when bolted to equipment terminal Assembly consists of connector, two terminals, corona shield and hardware 2 FIELD WELD 9 7 1 2 45 ° 4 1 / 2 1 / 4 2 2 2 1 / 2 1 1 / 4 1 1 / 4 1 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers Ordering Information CATALOG NUMBER CABLE SIZE WP2CA240R-9-41/2-15-45-EHV-AA 2 40 DIA 633 © 2011, AFL, all rights reserved PP-3-00233, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Terminal Connectors 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 TYPE B7583-A Series Welded Expansion Terminal Recommended for Voltages up to 765 kV Expansion terminal is designed to be corona free for 765 kV operation Expansion terminal is designed for a maximum bus run of 100 feet (30 5m) operationg between a minimum temperature of -20°F (-28°C) and a maximum temperature of 200°F (93 3°C) Assembly consists of expansion terminal, corona rings and hardware Stainless steel chatter springs are supplied with corona ring assembly Ordering Information CATALOG NUMBER CONDUCTOR SIZE NOMINAL WEIGHT LBS STRAIN BUS DIAMETER IN INCHES B7583-A 6" 49 0 1 5/8-11 ALUM HARDWARE 10 31 2 25 FIELD WELD 9 2 R 5 4 5 1 25 2 ∅ 69 PAD DETAIL 12 06 1 38 2 2 5 28 67 21 4 10 84 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 765 kV Terminal Connectors 634 © 2011, AFL, all rights reserved PP-3-00236, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Terminal Connector www.AFLglobal.com or 800-890-8878 TYPE B7878-A Series Terminal Connector - Three Bundle Recommended for Voltages up to 765 kV Terminal connector is designed to be corona free for 765 kV operation when bolted to equipment terminal Assembly consists of connector, three terminals, corona shield and hardware Ordering Information CATALOG NUMBER FIGURE NO. CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS STRAIN BUS DIAMETER IN INCHES A AC B7878-A 2 1 981 - 2 042 14 19 1 00 51 9 B7878-B 1 1 981 - 2 042 14 19 1 00 49 6 FIELD WELD FIG. 1 7 25 AC A FIG. 2 22 09 24 88 18 00 6 31 2 1 / 2 4 9 2 2 1 1 / 4 4 1 / 2 1 1 / 4 2 ∅ 11 / 16 4 1 / 2 1 3 / 4 1 3 / 4 1 1 / 8 ∅ 9 / 16 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 635 765 kV Ground Stud © 2011, AFL, all rights reserved. PP-3-00184, Revision 0, 3.15.11 Specifications are subject to change without notice. 765 kV Ground Stud www.AFLglobal.com or 800-890-8878 34640-EHV TYPE 34640-EHV Series Ground Stud, Welded Ground stud is designed to be corona free for 765 kV operation Ordering Information CATALOG NUMBER CONDUCTOR SIZE TUBULAR SIZE SPS & EHPS NOMINAL WEIGHT LBS 34640EHV 4" to 6" 16 0 Material Aluminum Alloy 1" SCH 80 ALUM PIPE 15 00" CUSTOMER PIPE 6 00" 765 kV Spacer Clamps 636 765 kV Spacer Clamps © 2011, AFL, all rights reserved. Revision 0, 3.15.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 C6999-A TYPE C6999-A, B7073 Series Spacer Clamps Recommended for Voltages up to 765 kV Two- and four-conductor spacers are designed to be corona free for 765 KV operation Spacers are not recommended for use on transmission lines Ordering Information CATALOG NUMBER STRAIN BUS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A B C C6999-A 2 4 18 00 4 00 3 25 6 4 C6999-B 2 311 17 72 4 00 3 25 6 4 B7073 CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS KCMIL STRAND A B AL. ST. B7073-A 954 0 45 7 18 00 1 165 13 2 B7073-B 1351 5 45 7 18 00 1 385 12 4 B7073-C 795 MCM 36 6 18 00 1 026 13 2 B7073-D 556 5 MCM 26 7 18 00 0 927 13 6 B7073-E 1300 MCM 45 7 17 72 1 312 12 8 B7073-F 795 MCM 30 19 18 00 1 140 12 8 B7073-G 1431 MCM 45 7 10 00 1 379 9 6 B7073-H 1450 MCM 45 7 18 00 1 526 9 4 1/2-13 ALUM HARDWARE A A SQUARE C B B Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 637 765 kV Vibration Damper © 2011, AFL, all rights reserved. PP-3-00160, Revision 0, 3.15.11 Specifications are subject to change without notice. 765 kV Vibration Damper www.AFLglobal.com or 800-890-8878 1705 TYPE 1705, B7384 Series Internal and External Bus Damper for Tubular Bus Recommended for Voltages up to 765 kV Internal bus damper is designed to be corona free for 765 kV operation Damper is designed to be installed inside bus to be corona free and to present a "clean" appearance to the substation Ordering Information INTERNAL DAMPER CATALOG NUMBER CONDUCTOR SIZE TUBULAR BUS SPS & EHPS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A ALUM TOTAL 1705-504 5 SPS 36 88 2 7 13 3 1705-576 6 EHPS 35 25 3 3 14 0 1705-607 6 SPS 35 25 4 0 14 7 1705-700 8" O D ( 1/2" Wall ) 36 88 3 2 13 8 1705-725 8" O D ( 3/8" Wall) 36 88 3 2 13 8 1705-762 8 EHPS 36 88 3 3 13 9 1705-798 8 SPS 36 88 3 4 14 0 B7384-A A 1705-XXX C A B B7384 EXTERNAL DAMPER CATALOG NUMBER CONDUCTOR SIZE TUBULAR BUS SPS & EHPS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS A B C ALUM TOTAL B7384-A 5" 40 00 8 50 5 56 23 9 34 5 B7384-B 6" 40 00 10 12 6 62 28 9 39 5 B7384-C 8" 40 00 12 19 8 00 37 4 37 4 Material Aluminum Alloy and Galvanized Steel Damper Weights 765 kV Stud Connector 638 765 kV Stud Connector © 2011, AFL, all rights reserved. PP-3-00220, Revision 0, 3.15.11 Specifications are subject to change without notice. www.AFLglobal.com or 800-890-8878 TYPE B7004-A Series Stud Connector, Straight, Stud to Two Conductor Bundle Recommended for Voltages up to 765 kV Stud connectors are designed to be corona free for 765 kV operation Assembly consists of stud connector, two terminals, corona shields and hardware Stud sizes other than those shown can be supplied if required Ordering Information CATALOG NUMBER STUD SIZE CONDUCTOR SIZE NOMINAL WEIGHT LBS DIAMETER THREADS PER INCH STRAIN BUS DIAMETER B7004-A 2 12 2 4 28 4 B7004-B 3 12 1 423 28 4 B7004-C 3 12 2 4 27 9 B7004-D 3 15 0 1 855 27 6 5/8-11 ALUM HARDWARE FIELD WELD 23 66 IN 6 22 IN 18 00 IN 6 66 IN Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 639 © 2011, AFL, all rights reserved PP-3-00225, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Stud Connector www.AFLglobal.com or 800-890-8878 765 kV Stud Connector TYPE B7074-A Series Stud Connector – 45 ° , 90 ° , Stud to Two Conductors Recommended for Voltages up to 765 kV Angle stud connectors are designed to be corona free for 765 kV operation Assembly consists of stud connector, two terminals, corona shields and hardware Stud sizes other than those shown can be supplied if required Ordering Information CATALOG NUMBER STUD SIZE CONDUCTOR SIZE TERMINAL ANGLE NOMINAL WEIGHT LBS DIAMETER THREADS PER INCH STRAIN BUS DIAMETER IN INCHES MIN MAX B7074-A 2 12 2 4 90° 33 0 B7074-B 2 12 2 4 45° 33 0 B7074-C 3 12 1 361 1 423 90° 33 4 STUD OPENING 45 ° 5/8-11 ALUM HARDWARE FIELD WELD 25 62 IN 8 19 IN 18 00 IN 6 95 IN DIA 6 84 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 765 kV Stud Connector 640 © 2011, AFL, all rights reserved PP-3-00229, Revision 1, 9 4 18 Specifications are subject to change without notice 765 kV Stud Connector www.AFLglobal.com or 800-890-8878 TYPE B7108 Series Stud Connector – 90 ° , Stud to Two Conductors Recommended for Voltages up to 765 kV Thru stud connectors are designed to be corona free for 765 kV operation Assembly consists of a stud connector, four terminals, corona shields and hardware Stud sizes other than those shown can be supplied if required Ordering Information CATALOG NUMBER STUD SIZE CONDUCTOR SIZE STRAIN BUS DIAMETER IN INCHES NOMINAL WEIGHT LBS DIAMETER THREADS PER INCH B7108-A 2 12 2 4 40 2 B7108-C 2 12 2 344 37 28 STUD OPENING 5/8-11 ALUM HARDWARE FIELD WELD 26 00 IN 8 44 IN 18 00 IN 7 12 IN DIA 7 00 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 641 © 2011, AFL, all rights reserved PP-3-00237, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Stud Connector www.AFLglobal.com or 800-890-8878 765 kV Stud Connector B7879-A TYPE B7879-A, B7880 Series Stud Connector, Straight, Stud to Three Conductor Bundle Recommended for Voltages up to 765 kV Stud connectors are designed to be corona free for 765 kV operation Assembly consists of stud connector, three terminals, corona shields and hardware Stud sizes other than those shown can be supplied if required Ordering Information CATALOG NUMBER STUD SIZE CONDUCTOR SIZE DIMENSIONS IN INCHES (FOR ANGLED STUD CONNECTOR ONLY) NOMINAL WEIGHT LBS DIAMETER THREADS PER INCH STRAIN BUS DIAMETER IN INCHES A B B7879-A 2 12 1 981 - 2 042 - - 55 4 B7880-A 2 12 1 981 - 2 042 15 43 15° 56 2 B7880-B 2 12 1 981 - 2 042 17 8 45° 57 7 B7880-A B ° STRAIGHT CONNECTOR B7879 A 5/8-11 ALUM HARDWARE FIELD WELD 7 25 IN 18 00 IN 24 88 IN 22 09 IN 6 31 IN 13 31 IN ANGLED CONNECTOR B7880 Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, washers, lockwashers 765 kV Stud Connector 642 © 2011, AFL, all rights reserved PP-3-00237, Revision 0, 3 15 11 Specifications are subject to change without notice 765 kV Stud Connector www.AFLglobal.com or 800-890-8878
