La borne du limiteur pour câble à isolation papier sert à la fois de borne de câble et de fusible limiteur de courant. La section fusible est fabriquée selon des tolérances étroites.
52a8df1c09764d8682f3d27d16f0da42

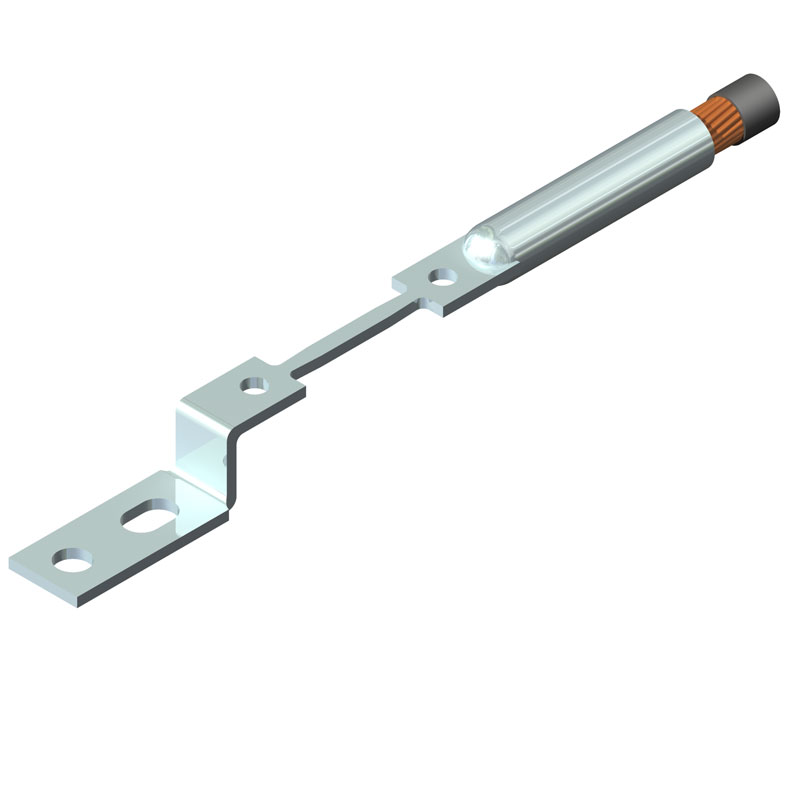

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00097, Revision 2, 11.13.2025 Specifications are subject to change without notice. 1 Network Underground AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials. The limiter terminal acts as a cable terminal as well as a current limiting fuse. The fusible section is made to close tolerances to insure consistent conformity with the fusing time-current curves. The limiter terminal will clear on severe loads or faults but will not clear on system overloads of short period. Type LLA-2PL3 Long Limiter Terminal for Paper Insulated Cable* Ordering Information Catalog Number Cable Size No. of Indents Dimensions in inches A B C H L O T X LLA21-2PL3 4/0 STR 1 1 3 5/8 2 3/16 7/8 10 11/16 5/32 7/16 LLA25-2PL3 250 MCM 1 1 3/32 3 5/8 2 3/16 7/8 10 3/4 5/32 7/16 LLA30-2PL3 300 MCM 2 1 3/16 3 3/4 2 5/16 1 10 5/8 13/16 3/16 1/2 LLA35-2PL3 350 MCM 2 1 9/32 3 3/4 2 5/16 1 10 5/8 7/8 3/16 1/2 LLA40-2PL3 400 MCM 2 1 13/32 3 7/8 2 5/16 1 10 3/4 31/32 3/16 1/2 LLA50-2PL3 500 MCM 2 1 1/2 4 1/4 2 3/4 1 11 3/4 1 1/16 7/32 1/2 LLA75-2PL3 750 MCM 2 1 15/16 4 1/4 2 3/4 1 11 3/4 1 5/16 1/4 1/2 * Closed end of sockets are sealed to make sockets oil tight. C 1 1 / 4 B X H L O.D. T A
Les applications:
- Réseau souterrain
- Câble en cuivre
