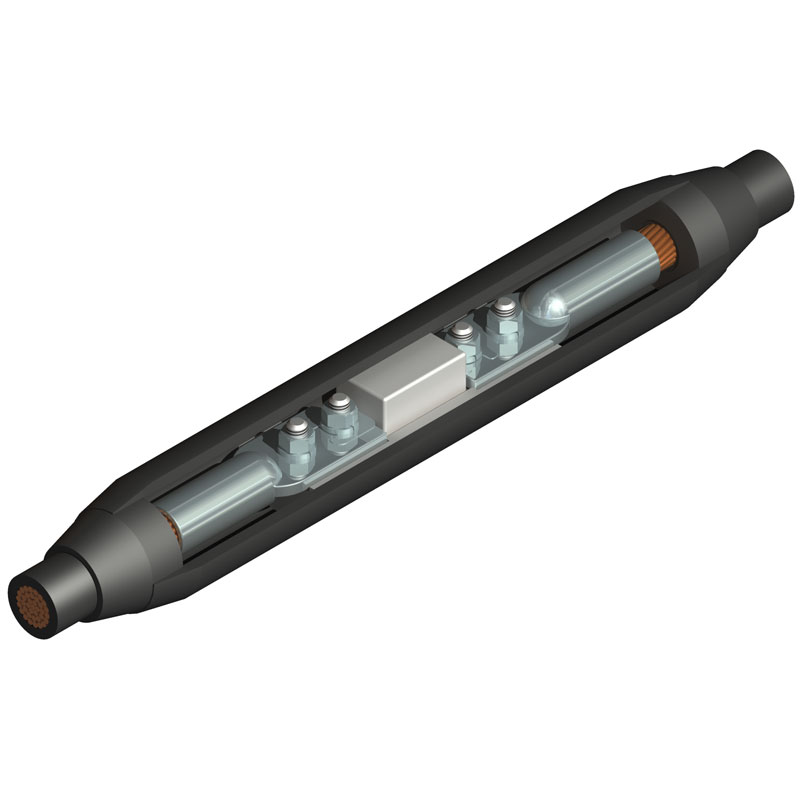

Ensemble de liaison isolant et limiteur renouvelable qui sert à la fois de fusible et de coupleur. Le lien renouvelable offre un moyen rapide et peu coûteux de remettre sous tension les circuits coupés.
e520e1308f3c4559a79cbdf2a1f5869f
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00129, Revision 2, 11.25.2025 Specifications are subject to change without notice. 1 Network Underground An insulating renewable limiter link assembly which serves as both a fuse and coupler. The renewable link offers a quick and inexpensive means of re-energizing cleared circuits. The renewable link also provides the possibility of regulating the circuit protection to various levels of current by choice of link ampere capacity. Type RLM-E Renewable Limiter Link Assembly Ordering Information Catalog Number Cable Size No. of Indents Dia. Over Cable Insulation D L in inches Renewable Limiter Link Furnished* Catalog Number Amp. Capacity RLM2-E 6 STR 1 Diameter over cable insulation to be specified on order. 16 3/8 F50 50 RLM4-E 4 STR 1 16 3/8 F75 75 RLM6-E 2 STR 1 16 3/8 F100 100 RLM8-E 1 STR 1 16 3/8 F100 100 RLM10-E 1/0 STR 1 16 3/8 F150 150 RLM13-E 2/0 STR 1 16 3/8 F150 150 RLM17-E 3/0 STR 1 16 3/8 F200 200 RLM21-E 4/0 STR 1 16 3/8 F250 250 RLM25-E 250 MCM 1 16 3/8 F250 250 RLM30-E 300 MCM 2 16 3/8 F300 300 RLM35-E 350 MCM 2 16 3/8 F300 300 RLM40-E 400 MCM 2 16 3/8 F400 400 RLM50-E 500 MCM 2 16 3/8 F400 400 * Minimum clearing current of furnished limiter is approximately NEC rubber insulated cable rating X2. Elements Type No. Name RLM-1 1 Limiter Insulating Sleeve RLM-2 2 Limiter Insulating Bushing RLM-50B 3 Limiter Mounting Block F 4 Limiter Renewable Link RL-2 5 Compression Terminal L 3 4 5 1 2 D AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
Caractéristiques :
- Manchon isolant en caoutchouc Myprene
Ensemble de liaison isolant et limiteur renouvelable qui sert à la fois de fusible et de coupleur. Le lien renouvelable offre un moyen rapide et peu coûteux de remettre sous tension les circuits coupés. La liaison renouvelable offre également la possibilité de réguler la protection du circuit à différents niveaux de courant par le choix de la capacité en ampères de la liaison.
