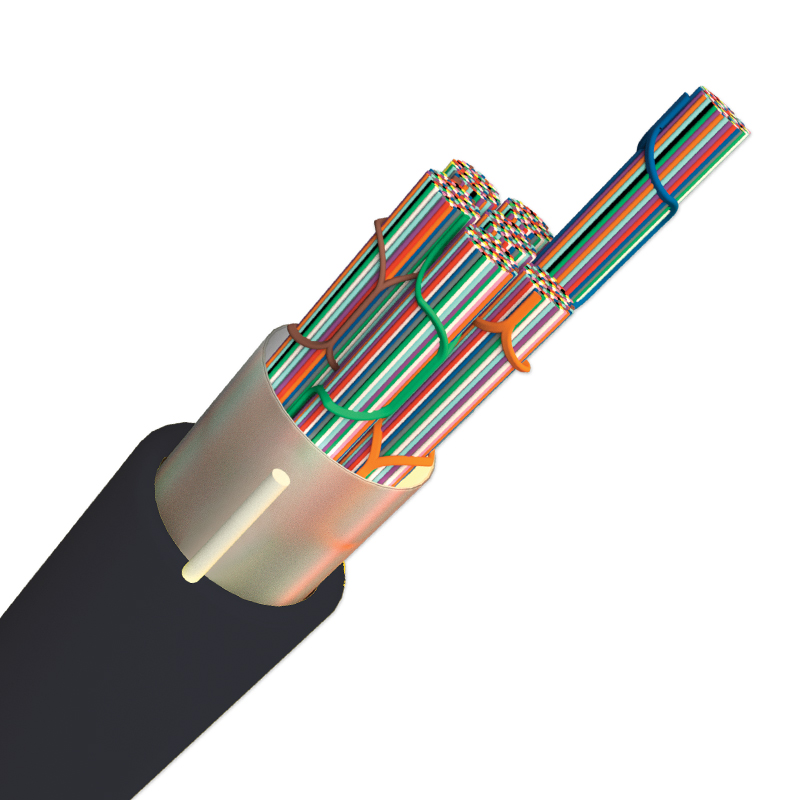

Flame-retardant (FR) RIO Wrapping Tube Cable (WTC) with SpiderWeb Ribbon (SWR) is a high-density fiber optic ribbon cable intended for indoor/outdoor network applications where riser-rated products are required.
700fa7f356564df8aa34c82971bfe193,9e7d6e4560954fb682e49e483ca0d2e3
1 FIBER OPTIC CABLE Fiber Optic Cable © 2019, AFL, all rights reserved. PP-1-00144, Revision 15, 8.10.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Applications • Riser spaces within build structures • Data Center Inter-building Connections Flame-Retardant Wrapping Tube Cable (WTC) with SpiderWeb Ribbon ® (SWR ® ) Flame-retardant (FR) Wrapping Tube Cable (WTC) with SpiderWeb Ribbon (SWR) is a high-density fiber optic ribbon cable intended for inside plant and indoor/outdoor network applications where riser-rated products are required. The FR-WTC-SWR incorporates the leading-edge SpiderWeb Ribbon technology in a robust, flame-retardant cable package that can be used within buildings and, because of the core water-blocking feature, can also be routed outside provided the cable is housed within covered pathway spaces including duct-banks and cable trays. The FR-WTC-SWR product set is available in LSZH, UL 1666 Riser Rated, CPR Classification, non-armored 250 μm SR15E fiber (288F) and 200 μm SR15E-200 fiber (864F and 1728F) constructions. Features • Collapsible ribbon reduces size of cable compared to other encapsulated or pliable ribbon technologies • Design optimizes the fiber packing density making WTC-SWR cables the smallest ribbon cables without compromising robustness of the cable • Small-diameter cable allows more optical fibers to be placed into crowded or limited- space pathways • Water-blocked core • Light weight for easy handling in the field compared to traditional cables • Completely Gel-free for reduced time to access fiber and prep for splicing SWR Technology Cable Components 12F SWR Multiple 12F SWR bundle 72F OR 144F bundles depending on cable fiber count Contrahelical dual binder system OFNR-LS Non-armored (288F, 864F, 1728F) SWR bundle unit Water-blocking tape Strength member (FRP) Sheath (FR-PE)
© 2019, AFL, all rights reserved. PP-1-00144, Revision 15, 8.10.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Contact AFL for further details. Temperature Specifications TEMPERATURE RANGE INSTALLATION +14°F to +140°F (-10°C to +60°C) OPERATING -4 ° F to +158 ° F (-20 ° C to +70 ° C) STORAGE -40 ° F to +158 ° F (-40 ° C to +70 ° C) Qualifications GOVERNING BODY STANDARD CODE UL 1666, Listed Riser 1685, Fire Propagation and Low Smoke ANSI/ICEA S-83-596 EU EN 13501-6 (CPR) Flame-Retardant Wrapping Tube Cable (WTC) with SpiderWeb Ribbon ® (SWR ® ) Mechanical Data—Non-Armored DESCRIPTION EN 13501-6 CLASSIFICATION FIBER COUNT BINDER UNIT NOMINAL DIAMETER WEIGHT SHORT TERM / INSTALLATION LONG TERM / STORAGE /STATIC inches (mm) lbs/1,000 ft (kg/km) MAX TENSILE LOAD lbs (N) MIN BEND RADIUS inches (mm) MAX TENSILE LOAD lbs (N) MIN BEND RADIUS inches (mm) 250 μm SR15E FIBER FR-OGNM12WTZTWBE SR15Ex288C Cca-s1a,d0,a1 288 4 X 72F 0.49 (12.5) 108 (160) 297 (1320) 7.4 (188) 89 (396) 4.9 (125) 200 μm SR15E FIBER FR-OGNM12WTZTWBE SR15E-200x864C Cca-s2,d2,a1 864 12 X 72F 0.65 (16.5) 181 (270) 297 (1320) 9.7 (248) 89 (396) 6.5 (165) FR-OGNM12WTZTWBE SR15E-200x1728C Cca-s1,d0,a1 1728 12 X 144F 0.85 (21.5) 276 (410) 297 (1320) 12.7 (323) 89 (396) 8.5 (215) Optical Fiber OPTICAL FIBER (FIBER COUNT) FIBER DIA. FIBER PITCH OPTICAL FIBER STANDARD MFD MAXIMUM ATTENUATION (CABLED) dB/km 1310 nm 1383 nm 1550 nm Fujikura SRI5E (288F) 250 μm 250 μm K (ITU-T G.652D/G.657.A1) 8.6 ± 0.4 μm ≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km Fujikura SR15E-200 (864F, 1728F) 200 μm 250 μm BE (ITU-T G.652.D AND G.657.A1) 8.6 ± 0.4 μm ≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km FIBER COUNT BINDER UNIT (BU) RING MARKINGS 288F 4 Binder Units 1 2 3 4 1-6 Ring Marking 864F 12 Binder Units 1 2 3 4 5 6 7 8 9 10 11 12 1728F 12 Binder Units 1 2 3 4 5 6 7 8 9 10 11 12 1-12 Ring Marking Stripe Ring Fiber Identification R NO. STRIPE RING MARKING R NO. STRIPE RING MARKING 1 7 2 8 3 9 4 10 5 11 6 12
Features:
- Collapsible ribbon reduces size of cable compared to other encapsulated or pliable ribbon technologies
- High-density 200 μm diameter fibers with 250 μm ribbon pitch separation for splice compatibility with 250 μm diameter fiber ribbon
- Design optimizes the fiber packing density making WTC/SWR cables the smallest ribbon cables without compromising the robustness of the cable
- Completely gel-free for reduced time to access fiber and prep for splicing
- Small-diameter cable allows more optical fibers to be placed into crowded or limited-space pathways
- Water-blocked core
- Lightweight for easy handling in the field compared to traditional cables
- Suitable for pulling and jetting installations
Applications:
- Data Center Inter-building Connections
- Blowing or jetting in conduit
Flame-retardant (FR) RIO Wrapping Tube Cable (WTC) with SpiderWeb Ribbon (SWR) is a high-density fiber optic ribbon cable intended for indoor/outdoor network applications where riser-rated products are required. The FR RIO-WTC-SWR incorporates the leading-edge SpiderWeb Ribbon technology in a robust, flame-retardant cable package that can be used within buildings. With the core water-blocking feature, it can also be routed outside provided the cable is housed within covered pathway spaces including duct-banks and cable trays.
SWR is a bonded fiber ribbon design allowing for either a highly efficient ribbon splicing or an individual fiber breakout splicing process. This flexibility allows a single cable design to cover diverse applications from access networks to high-fiber count mass fusion splicing. With the ability to roll and conform, the SWR provides ultra-high density packaging in cable form.
The FR RIO-WTC-SWR product set is non-armored and meets Riser, CPR, and Low-Smoke, Zero-Halogen (LSZH) standards using Fujikura 200 μm SR15E-P200 fiber (144F to 6912F) with 200 μm pitch constructions. Also available with 250 μm pitch constructions. The 250 μm ribbon pitch allows simple mass-fusion splicing with traditional 250 μm diameter ribbon fibers.
