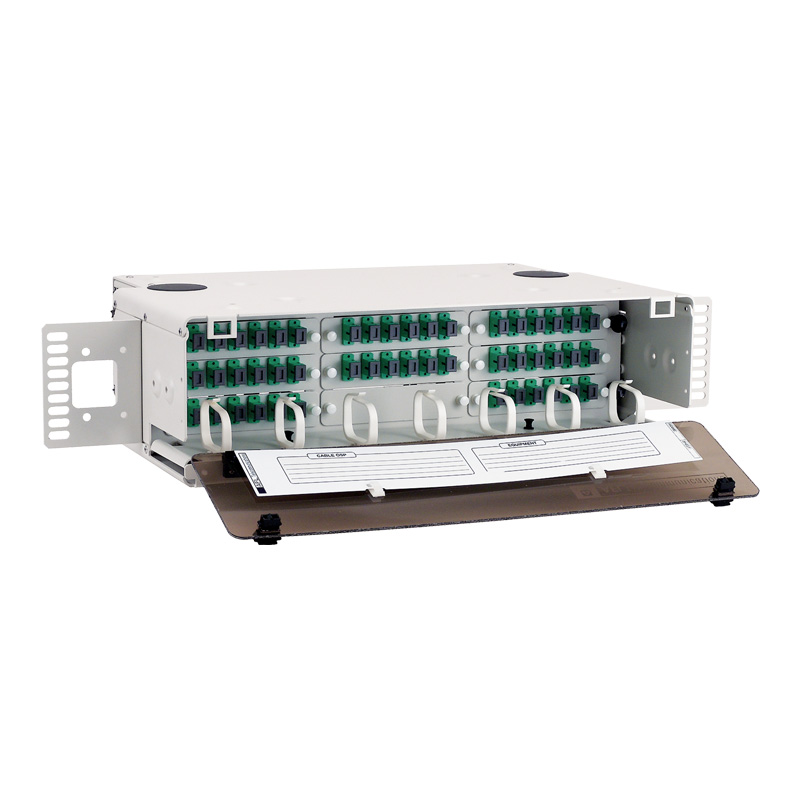

1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00077, Revision 9, 9.23.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 Features • Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments • Most common connector styles and types available • Compatible with industry standard equipment frames • LGX compatible master plate (118 mm) • Modular design • Provides maximum protection of optical components The AFL 3RU Fiber Termination Patch Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 96 fibers is desired. The panel design is based on a 3 rack unit height with a master plate that is provisioned with nine LGX ® 118 compatible mounting positions that can accommodate adapter plates, XFM ® optical cassettes, passive optical modules or any combination therein. Standard 3RU Fiber Termination Patch Panels are available empty for complete field configuration, half loaded with adapter plates, or stubbed with a factory installed circular premise cable (CPC) or loose tube cable assembly. Specifications • Telcordia ® GR-63 NEBS Tested • Aluminum construction per ASTMB209 • Durable textured powder coat finish available in black or white • Universal 19/23" EIA/TIA rack compatibility • Standard density: up to 48-fiber • High density: up to 96-fiber • LGX 118 compatible • Standard cable stub location is right rear exiting upward LightLink LANSystem 3RU Fiber Termination Patch Panel Dimensions Depth (A) in inches Width (B) in inches Height (C) in inches Rack Units Fiber Capacity Unloaded Weight Material Gauge 11.00 17.00 5.25 3 48/96 8.4 lbs. 2.03 mm Applications • Telecommunications closets • Data Centers • Customer Premise • LAN/WAN Networks • Central Offices/Headends • Hubs/Cabinets/Remote Terminals • FTTH/FTTB Networks LGX is a registered trademark of Furukawa Electric North America, Inc. Telcordia is a registered trademark of Telcordia Technologies, Inc. 2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00077, Revision 9, 9.23.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 LightLink LANSystem 3RU Fiber Termination Patch Panel Ordering Information Select the seven digit AFL part number you need, specify black or white, and choose the loading character desired. When ordering stubbed (S), enter the cable stub length required in meters. Note: Standard stub is Circular Premise Cable (CPC). Configuration Part Numbers All cable clamps offered separately so that customers may choose the correct clamp for their application. Configuration AFL No. CON048P – 3RU Patch Panels – 48 Fibers – LGX118 EMPTY C211291 48 PSC adapters (8 Six Packs) C211309 48 UST adapters (8 Six Packs) C211336 48 PST adapters (8 Six Packs) C211345 24 UDL (dup) adapters (8 Three Packs) FM000181 24 PDL (dup) adapters (8 Three Packs) FM000182 48 ASC adapters (8 Six Packs) C213928 48 USC adapters (8 Six Packs) C213923 24 PSF (dup) adapters (8 Three Packs) FM000183 24 USF (dup) adapters (8 Three Packs) FM000184 24 ASF (dup) adapters (8 Three Packs) FM000185 CON096HD – 3RU High Density Patch Panels – 96 Fibers – LGX118 96 UST adapters (8 Twelve Packs) FM000187 96 PST adapters (8 Twelve Packs) FM000188 48 UDL (dup) adapters (8 Six Packs) C211349 48 PSF (dup) adapters (8 Six Packs) C211313 48 PDL (dup) adapters (8 Six Packs) C211360 48 USF (dup) adapters (8 Six Packs) FM000189 48 ASF (dup) adapters (8 Six Packs) FM000190 C211309 B S 0010 AFL NO. Color Loading Charactor E = Empty H = Half-loaded with adapters S = Preterminated with tight buffered CPC cable stub (Riser) (Patch only) R = Preterminated with OSP loose tube cable stub (Patch only) W = White B = Black 0002 = 2 meters 0004 = 4 meters etc. Cable Stub Length (M) Example: Order number for a panel Black in color, loaded with 48 PSC adapters (8 six packs), connectors and a cable stub 10 meters in length. Notes: 1) All MM cable is 62.5 μm unless otherwise specified. 2) When ordering Empty Termination Patch/Splice Panel, accessories are available for field configuration. Connector/Adapter Key Type Description ASC SC – Angle Polish, Simplex, SM ASF SC – Angle Polish, Duplex, SM PSC SC – Physical Polish, Simplex, MM PSF SC – Physical Polish, Duplex, MM USC SC – Ultra Polish, Simplex, SM USF SC – Ultra Polish, Duplex, SM PST ST – Physical Polish, Simplex, MM UST ST – Ultra Polish, Simplex, SM ADL LC – Angle Polish, Duplex, SM PLC LC – Physical Polish, Simplex, MM PDL LC – Physical Polish, Duplex, MM ULC LC – Ultra Polish, Simplex, SM UDL LC – Ultra Polish, Duplex, SM Qualifications Governing Body Standard Code ASTM ASTMB209 Telcordia GR-63NEBS
