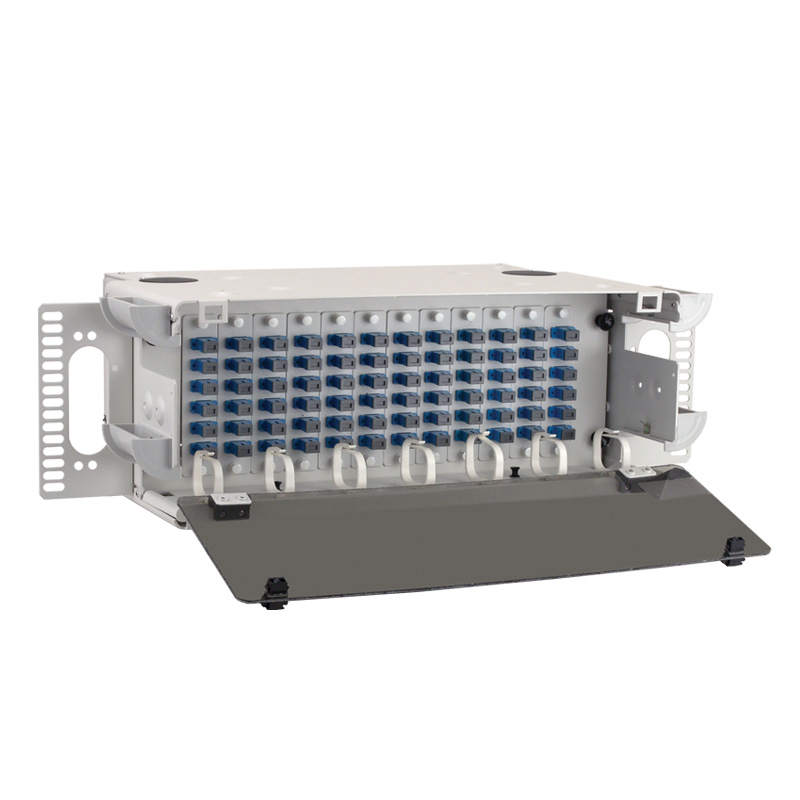

1 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00071, Revision 11, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 1 Features • Fits comfortably into new and existing interconnect, cross-connect, customer premise, and co-location environments • Most common connector styles and types available • Compatible with industry standard equipment frames • LGX compatible master plate and footprint (118 mm) • Modular design • Provides maximum protection of optical components The AFL 4RU Fiber Termination Patch Panel is designed for use as a rack mount interconnect point where termination and connectivity of up to 144 fibers is desired. The panel design is based on a 4 rack unit height with a master plate that is provisioned with 12 LGX ® 118 compatible mounting positions that can accommodate adapter plates, XFM ® optical cassettes, passive optical modules or any combination therein. Standard 4RU Fiber Termination Patch Panels are available empty for complete field configuration, half loaded with adapter plates, or stubbed with a factory installed circular premise cable (CPC) or loose tube cable assembly. Specifications • Telcordia ® GR-63 NEBS Tested • Aluminum construction per ASTMB209 • Durable textured powder coat finish available in black or white • Universal 19/23" EIA/TIA rack compatibility • Standard density: up to 72-fiber • High density: up to 144-fiber • LGX 118 compatible • Standard cable stub location is right rear exiting upward Applications • Telecommunications closets • Data Centers • Customer Premise • LAN / WAN Networks • Central Offices / Headends • Hubs / Cabinets / Remote Terminals • FTTH / FTTB Networks LightLink LANSystem 4RU Fiber Termination Patch Panel Dimensions Depth (A) in Inches Width (B) in Inches Height (C) in Inches Rack Units Fiber Capacity Unloaded Weight Material Gauge 11.00 17.00 7.00 4 72/96/144 9 lbs. 2.03 mm LGX is a registered trademark of Furukawa Electric North America, Inc. Telcordia is a registered trademark of Telcordia Technologies, Inc. 2 AFLglobal.com 1 (800) 866-7385 © 2002, AFL, all rights reserved. PP-2-00071, Revision 11, 9.22.2025 S p e c i  c a t i o n s a r e s u b j e c t t o c h a n g e w i t h o u t n o t i c e . Optical Connectivity 2 LightLink LANSystem 4RU Fiber Termination Patch Panel Ordering Information Configuration AFL No. CON072P – 4RU Patch Panels – 72 Fibers – LGX118 EMPTY C211372 72 PSC adapters (12 Six Packs) C211390 72 UST adapters (12 Six Packs) C211417 72 PST adapters (12 Six Packs) C211426 36 UDL (dup) adapters (12 Three Packs) FM000191 36 PDL (dup) adapters (12 Three Packs) FM000192 72 ASC adapters (12 Six Packs) C213955 72 USC adapters (12 Six Packs) C213952 36 PSF (dup) adapters (12 Three Packs) FM000193 36 USF (dup) adapters (12 Three Packs) FM000136 36 ASF (dup) adapters (12 Three Packs) FM000194 Ordering Information Select the seven digit AFL panel part number, specify the color, and choose the loading character desired. When ordering stubbed (S), enter the cable stub length required in meters. Note: Standard stub is Circular Premise Cable (CPC). C211390 B S 0005 AFL NO. Color Loading Charactor E = Empty H = Half-loaded with adapters S = Preterminated with tight buffered CPC cable stub (Riser) (Patch only) R = Preterminated with OSP loose tube cable stub (Patch only) W = White B = Black 0002 = 2 meters 0004 = 4 meters etc. Cable Stub Length (M) Example: Order number for a panel Black in color, loaded with 72 PSC adapters (12 six packs), connectors and a cable stub 5 meters in length. Configuration AFL NO. CON144HD – 4RU High Density Patch Panels – 144 Fibers – LGX118 EMPTY FM000344 72 UDL (dup) adapters (12 Six Packs) C211432 72 ADL (dup) adapters (12 Six Packs) FM000345 72 PSF (dup) adapters (12 Six Packs) C211396 72 PDL (dup) adapters (12 Six Packs) C211439 72 USF (dup) adapters (12 Six Packs) FM000196 72 ASF (dup) adapters (12 Six Packs) FM000197 144 UST adapters (12 Twelve Packs) FM000198 144 PST adapters (12 Twelve Packs) FM000199 144 USC adapters (12 Twelve Packs) FM000133 144 ASC adapters (12 Twelve Packs) FM000201 CON096P – 4RU Patch Panels – 96 Fibers – LGX118 EMPTY FM000344 96 PSC adapters (12 Eight Packs) FM000203 96 UST adapters (12 Eight Packs) C213964 96 PST adapters (12 Eight Packs) FM000204 96 ASC adapters (12 Eight Packs) C213982 96 USC adapters (12 Eight Packs) C213977 Notes: 1) All MM cable is 62.5 μm unless otherwise specified. 2) When ordering Empty Termination Patch/Splice Panel, accessories are available for field configuration. Connector/Adapter Key Type Description ASC SC – Angle Polish, Simplex, SM ASF SC – Angle Polish, Duplex, SM PSC SC – Physical Polish, Simplex, MM PSF SC – Physical Polish, Duplex, MM USC SC – Ultra Polish, Simplex, SM USF SC – Ultra Polish, Duplex, SM PST ST – Physical Polish, Simplex, MM UST ST – Ultra Polish, Simplex, SM ADL LC – Angle Polish, Duplex, SM PLC LC – Physical Polish, Simplex, MM PDL LC – Physical Polish, Duplex, MM ULC LC – Ultra Polish, Simplex, SM UDL LC – Ultra Polish, Duplex, SM Qualifications Governing Body Standard Code ASTM ASTMB209 Telcordia GR-63NEBS
