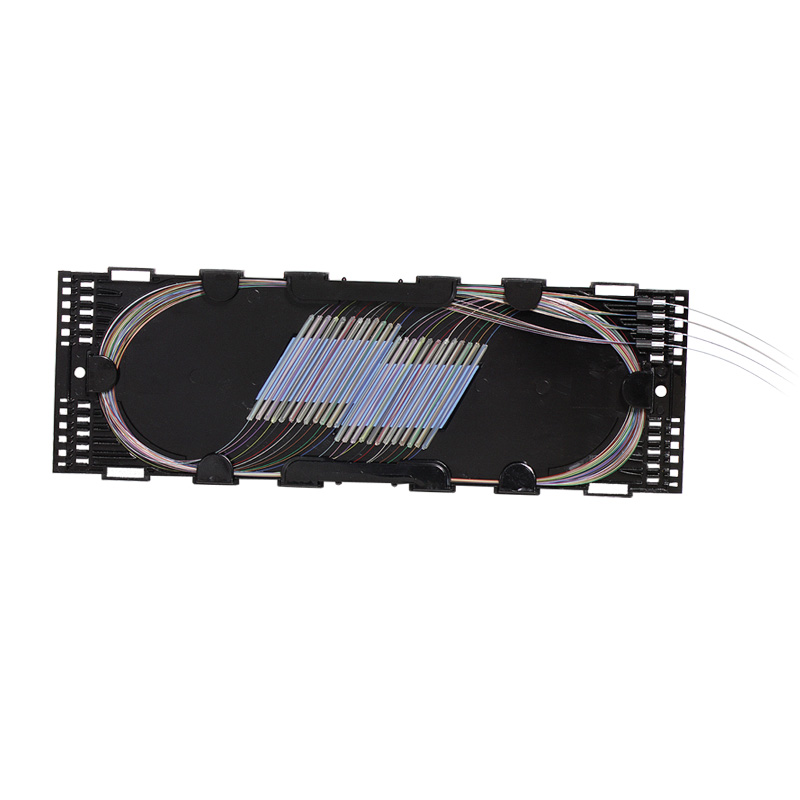

LightLink 2448 Plateaux d'épissures de fibre optique

La série LightLink d'AFL de plateaux d'épissures pour fibres optiques offre une variété de possibilités uniques et flexibles d'épissures et de stockage.

603d7fb9fdd4407d8255f9bf9e626eb2

© 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-55-U LG-150-U LG-250-U LG-350-U LG-350-20-WTC LG-350-27-WTC Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 Max trays: 1 Single: 32 Mass: N/A N/A N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 N/A Max Trays: 4 Single: 48 Mass: N/A N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 N/A Max Trays: 4 Single: N/A Mass: 32 (384 fiber) N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00- 00 N/A Max Trays: 4 Single: 48 Mass: 48 (384 fiber) N/A N/A N/A N/A Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 N/A N/A Max Trays: 5 Single: 120 Mass: N/A Max Trays: 13 Single: 312 Mass: N/A N/A N/A continued LightLink Fiber Optic Splice Trays Features • In-line or butt splice capability (see model descriptions) • Pre-formed radiuses maintain bend requirements • Interlocking base and cover provides tray stability without the use of a bolt • Extended finger guides easily store and route loose fiber or ribbon AFL’s LightLink series of Fiber Optic Splice Trays offers a variety of unique and flexible splice and storage possibilities. They are available in industry standard config urations (single, mass). © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information—Splice Trays for Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-250-U LG-350-U LG-350-AC LG-350XL-U LG-350-20-WTC LG-350-27-WTC Single Fuse: 60 Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7644 FA000044 N/A Max Trays: 6 Single: 360 Mass: 72 (864 fiber) N/A N/A N/A Max Trays: 3 Single: 180 Mass: 72 (864 fiber) Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 Max Trays: 8 Single: 192 Mass: 32 (384 fiber) Mechanical: 96 N/A N/A N/A N/A Single Fuse: 48 Mass Fuse: N/A 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448-48S FA000045 Max Trays: 3 Single: 144 Mass: N/A Max Trays: 8 Single: 384 Mass: N/A N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 3 Single: N/A Mass: 36 (432 fiber) Max Trays: 8 Single: N/A Mass: 96 (1152 fiber) N/A N/A N/A N/A Single Fuse: 96 Mass Fuse: 24 (288 fiber) 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 911676-00-02 N/A Max Trays: 5 Single: 480 Mass: 120 (1440 fiber) N/A Max Trays: 9 Single: 864 Mass: 216 (2592 fiber) N/A N/A Single Fuse: 60 Mass Fuse: N/A 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7060 FA000042 N/A Max Trays: 6 Single: 360 Mass: N/A N/A N/A N/A Max Trays: 3 Single: 180 Mass: N/A * Note: Contains enough splice holders for 24 mass splices (288 fibers) when using AFL Wrapping Tube Cable. © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information – Splice Trays for LG-350 and LG-350XL-U Sealed Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-350-U LG-350-AC LG-350XL-U LG-350-20-WTC LG-350-27-WTC Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) x 0.485" (H) LL-7144 FA000043 Max Trays: 6 Single: 360 Mass: 72 (864 fiber) N/A N/A N/A Max Trays: 3 Single: 180 Mass: 72 (864 fiber) Single Fuse: 36 Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808L-R FA000037 N/A Max Trays: 4 Single: 144 Mass: 48 (576 fiber) N/A Max Trays: 4 Single: 144 Mass: 48 (576 fiber) N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808 R FA000020 N/A Max Trays: 4 Single: N/A Mass: 48 (576 fiber) N/A Max Trays: 4 Single: N/A Mass: 48 (576 fiber) N/A Single Fuse: 36 Mass Fuse: N/A 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808 L FA000021 N/A Max Trays: 4 Single: 144 Mass: N/A N/A Max Trays: 4 Single: 144 Mass: N/A N/A Single Fuse: N/A Mass Fuse: 24 (288 fiber) 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 R FA000022 Max Trays: 5 Single: N/A Mass: 120 (1440 fiber) N/A Max Trays: 9 Single: N/A Mass: 216 (2592 fiber) N/A N/A Single Fuse: 96 Mass Fuse: N/A 15.950" (L) x 4.875" (W) x 0.485" (H) LL-4896 L FA000023 Max Trays: 5 Single: 480 Mass: N/A N/A Max Trays: 9 Single: 864 Mass: N/A N/A Max Trays: 3 Single: 180 Mass: N/A © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 4 Optical Connectivity Optical Connectivity continued LightLink Fiber Optic Splice Trays (cont.) Ordering Information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-410-U LG-420-U FTT x LG-500-U LG-500-U FTT x Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 Max Trays: 4 Single: 96 Mass: N/A N/A Max Trays: 4 Single: 96 Mass: N/A N/A Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 N/A Max Trays: 1 Single: 32 Mass: N/A N/A Max Trays: 1 Single: 32 Mass: N/A Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 N/A Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 N/A N/A N/A N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 3 Single: N/A Mass: 36 (432 fiber) N/A Max Trays: 3 Single: N/A Mass: 36 (432 fiber) N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 N/A N/A N/A N/A Single Fuse: 12 Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00-00 N/A N/A N/A N/A © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 5 Optical Connectivity Optical Connectivity Ordering Information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-500-U-FTT x -ISO LG-600-U LG-600-FTT x LG-600-U-FTT x-ISO Single Fuse: 24 Mass Fuse: N/A 12.542" (L) x 4.042" (W) x 0.390" (H) LL-2400 91710-06 N/A Max Trays: 12 Single: 288 Mass: N/A Max Trays: 2 Single: 48 Mass: N/A N/A Single Fuse: 32 Mass Fuse: N/A 6.300" (L) x 2.730" (W) x 0.829" (H) LL-2425 FC000053 N/A N/A N/A N/A Single Fuse: 24 Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 N/A Max Trays: 8 Single: 192 Mass: 32 (384 fiber) Mechanical: 12 N/A N/A Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 Max Trays: 1 Single: 12 Mass: N/A N/A N/A Max Trays: 2 Single: 24 Mass: N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 N/A Max Trays: 8 Single: N/A Mass: 96 (1152 fiber) N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 Max Trays: 1 Single: N/A Mass: 8 (96 fiber) N/A N/A Max Trays: 2 Single: N/A Mass: 16 (192 fiber) Single Fuse: 12 Mass Fuse: 8 (96) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-1248 911221-00-00 Max Trays: 1 Single: 12 Mass: 8 (96 fiber) N/A N/A Max Trays: 2 Single: 24 Mass: 16 (192 fiber) continued LightLink Fiber Optic Splice Trays (cont.) © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 6 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Fiber Optic Enclosures DESCRIPTION MODEL NO. AFL NO. LL-400B WITH INTERCONNECT LL-400B WITHOUT INTERCONNECT LL-400SX WITH 2 LGX ® PLATES LL-400SX WITHOUT LGX PLATES Single Fuse: 24 Mass Fuse: 4 (48 fiber) Mechanical : 12 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448 911289-00-02 Max Trays: 4 Single: 96 Mass: 16 (192 fiber) Mechanical: 48 Max Trays: 6 Single: 144 Mass: 24 (288 fiber) Mechanical: 72 Max Trays: 3 Single: 72 Mass: 12 (144 fiber) Mechanical: 36 Max Trays: 9 Single: 216 Mass: 36 (432 fiber) Mechanical: 108 Single Fuse: 48 Mass Fuse: N/A 12.542" (L) x 4.270" (W) x 0.531" (H) LL-2448-48S FA000045 Max Trays: 4 Single: 192 Mass: N/A Max Trays: 6 Single: 288 Mass: N/A Max Trays: 3 Single: 144 Mass: N/A Max Trays: 9 Single: 432 Mass: N/A Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4848 911437-00-02 Max Trays: 4 Single: N/A Mass: 48 (576 fiber) Max Trays: 6 Single: N/A Mass: 72 (864 fiber) Max Trays: 3 Single: N/A Mass: 36 (432 fiber) Max Trays: 9 Single: N/A Mass: 108 (1296 fiber) Single Fuse: N/A Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531 (H) LL-4800 91711-07 Max Trays: 4 Single: N/A Mass: 16 (192 fiber) Max Trays: 6 Single: N/A Mass: 24 (288 fiber) Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 9 Single: N/A Mass: 108 (1296 fiber) continued LightLink Fiber Optic Splice Trays (cont.) Ordering information – Splice Trays for Aerial Weathertight Fiber Optic Splice Closures DESCRIPTION MODEL NO. AFL NO. LG-410-U LG-500-U LG-600-U Single Fuse: N/A Mass Fuse: 4 (48 fiber) 12.542" (L) x 4.270" (W) x 0.531" (H) LL-4800 91711-07 Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 3 Single: N/A Mass: 12 (144 fiber) Max Trays: 8 Single: N/A Mass: 32 (384 fiber) © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 7 Optical Connectivity Optical Connectivity Ordering Information—Splice Trays for Fiber Optic Enclosures DESCRIPTION MODEL NO. AFL NO. LL-500 LL-580 Single Fuse: N/A Mass Fuse: 12 (144 fiber) 12.000" (L) x 5.125" (W) 0.485" (H) LL-7144 FA000043 N/A Max Trays: 2 Single: N/A Mass: 24 (288 fiber) Single Fuse: 60 Mass Fuse: 12 (144) 12.000" (L) x 5.125" (W) 0.485" (H) LL-7644 FA000044 N/A Max Trays: 2 Single: 120 Mass: 24 (288 fiber) Single Fuse: 12 Mass Fuse: N/A 7.139" (L) x 4.294" (W) x 0.370" (H) LL-2450 91957-00 Max Trays: 5 Single: 60 Mass: N/A N/A Single Fuse: N/A Mass Fuse: 8 (96 fiber) 7.139" (L) x 4.294" (W) x 0.370" (H) LL-4850 91958-00 Max Trays: 3 Single: N/A Mass: 24 (288 fiber) N/A Single Fuse: 36 Mass Fuse: 12 (144 fiber) 8.125" (L) x 4.875" (W) x 0.485" (H) LL-4808L-R FA000037 N/A Max Trays: 2 Single: 72 Mass: 24 (288 fiber) continued LightLink Fiber Optic Splice Trays (cont.) © 2002, AFL, all rights reserved. PP-2-00147, Revision 10, 6.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 8 Optical Connectivity Optical Connectivity LightLink Fiber Optic Splice Trays (cont.) Dimensions LL-2448 and LL-4848 Splice Trays LL-2400 Splice Tray LL-4896 Splice Tray OEE Splice Tray LL-1248, LL-2450 and LL-4850 Splice Trays LL-2425 Splice Tray Ordering Information – Splice Tray for Splicing Cabinets and Shelves DESCRIPTION MODEL NO. AFL NO. Telescoping Splice Tray - Stores up to 48 single fusion sleeves or 12 mass fusion sleeves (144 fibers). For use in the following products: LL-300, LL-288/576, LL-720/1440, OTSS-SYS1, OSS-SYS2 and OSS-SYS1 STF-48 911442-00-00 FTTx Splice Tray - Stores up to 2 single fusion sleeves. For use in the following products: ONT-760XL, ONT-3000 and CG-1500 — DM000445 Bare Fiber Splice Tray - Stores up 24 single fusion fibers without sleeves. For use in the following products: Any product that accepts the LL-2400 splice tray — C184190 Ordering Information—Splice Tray Accessories DESCRIPTION AFL NO. FP-40 Splice Protection Sleeves, 40 mm length (1000 box/100 pack) S015916 FP-60 Splice Protection Sleeves, 60 mm length (1000 box/100 pack) S015915 Single Fusion Splice Chip - 6 splices per chip. (10 pcs. per kit) FA000034 Single Fusion Splice Chip - 12 splices per chip. (10 pcs. per kit) FC000657 Single Fusion Splice Chip - 24 splices per chip. (10 pcs. per kit) 91745-02 Mass Fusion Splice Chip - 4 splices per chip. (10 pcs. per kit) FA000088 Mechanical Fusion Splice Tape (10 pcs. per kit) FA000089 Core Tube Cable Fiber Router for routing fiber up to 8 directions. For all central core tube sizes. FC000008 Loose Tube or Ribbon Router for routing fiber up to 6 directions. For all Loose Tube and up to 12 fiber Ribbon. FC000070

Caractéristiques :

Possibilité d'épissures en ligne ou bout à bout
Les rayons préformés permettent de respecter les exigences en matière de pliage.
L'emboîtement de la base et du couvercle assure la stabilité du plateau sans l'utilisation d'un boulon.
Les guides-doigts allongés permettent de stocker et d'acheminer facilement les fibres ou les rubans en vrac.

Les applications:

LG-250-U
LG-350-U
LG-410-U
LG-500-U
LG-600-U
LL-400B avec interconnexion
LL-400B sans interconnexion
LL-400sx avec 2 plaques LGX
LL-400sx sans plaques LGX

La série LightLink d'AFL’de plateaux d'épissures pour fibres optiques offre une variété de possibilités uniques et flexibles d'épissures et de stockage. Ils sont disponibles dans les configurations standard de l'industrie (simple, masse).

Capacité d'épissure

24 manchons de fusion simple

12 manchons mécaniques

Dimensions

12,542" (L) x 4,270" (l) x 0,531" (H)
