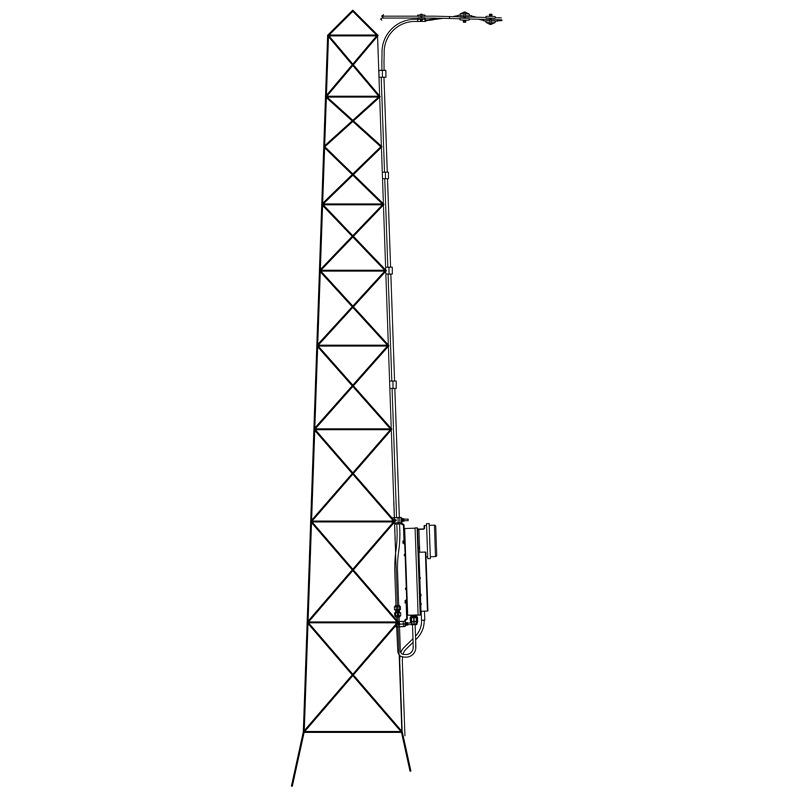

FIBER OPTIC CABLE HARDWARE Fiber Optic Cable Hardware ©2014 AFL Telecommunications Europe Ltd. Email: EMEAsales@aflglobal.com Specifications are subject to change without notice. Revision SW042_22Feb_2021 AFLglobal.com | 44 (0)1793 647200 1 Qualifications GOVERNING BODY STANDARD CODE BS EN 50411-3-2002 IEEE 1591.3-2011 Cable is passed down the tower to a cable joint enclosure in a protective conduit to provide a link between the SkyWrap cable and the onward fiber optic cable connection, including options for OPGW, ADSS or underground fiber optic cables. The joint enclosure is mounted on lattice towers, wood, steel or concrete poles for easy access to the fiber. Features • All tower fittings are available for a range of tower or pole designs • Enclosures boxes are 830 x 380 x 260 mm • Convenient cable storage and easy access to joint • Robust weather proof design • Available for up to 192 fibers • Joint enclosure can be locked for added security SkyWrap ® Termination Joint—Ground Wire Key components Ground to ground clamp Conduit clamp Cable clamp with nylon insert Tower mounted joint enclosure Ordering Information TOWER HEIGHT feet (m) STRUCTURE TYPE CONDUCTOR SIZE inches (mm) FIBER COUNT < 82 (< 25) < 115 (< 35) < 197 (< 60) Lattice Tower Steel/Concrete Pole Wood Pole 0.354-0.866 (9-22) 0.787-1.221 (20-31) 1.181-1.693 (30-43) 12-192 TCD L M H 902 906 962 A B C nnF Example: TCD-L906B48F Typical configuration for a lattice tower
