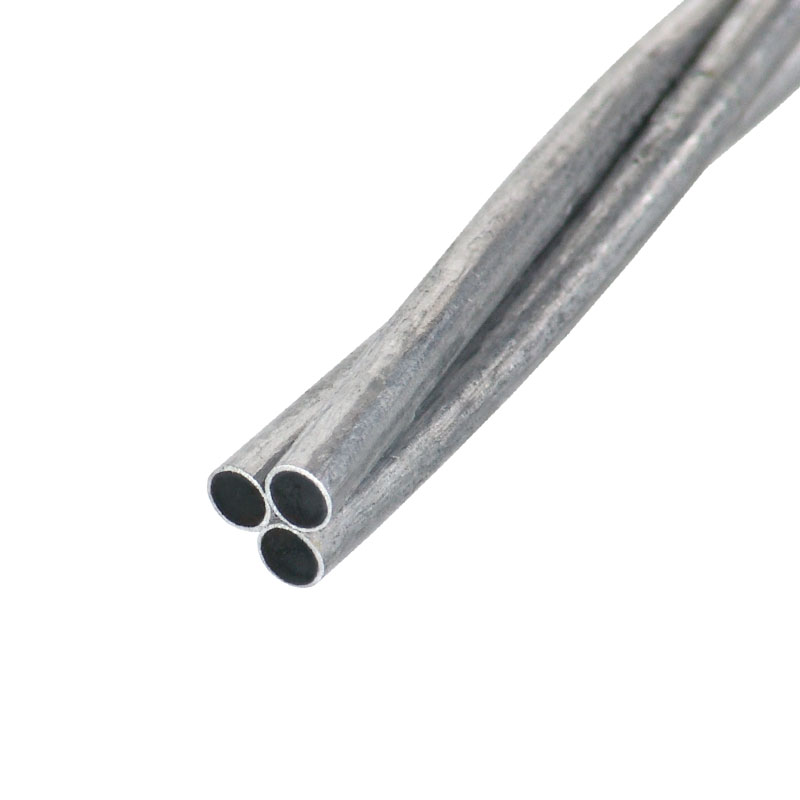

Alumoweld® strand provides non-rusting, high-strength guys for electrical distribution and transmission lines, communications and signal lines, antenna towers, masts, stacks, and other structures. The high tensile strength of this light-weight strand is permanently protected against corrosion by a thick cladding of aluminum. Costly maintenance resulting from corrosion is eliminated, and the original safety factor of the guy is maintained throughout the life of the line.
4fe9350405a54783aefdafad196c514e
1 WIRE PRODUCTS Wire Products © 2003, AFL, all rights reserved. PP-3-00778 Revision 6, 12.19.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Applications • Power lines • Telephone lines • Railway signals • Communication lines • Towers Masts Features Thick Aluminum Cladding The Alumoweld wire used to make Type M guy strand is unique in that the aluminum cladding thickness is guaranteed to be no less than 10% minimum of the wire radius. This, a thick corrosion barrier, that is pure aluminum not zinc or an iron-aluminum alloy, protects the steel core. Another important feature of any coated or clad wire is the bond between the coating material and the base metal. In the case of Alumoweld wire, and aluminum cladding and steel core are joined by a continuous ductile weld. This assures against cracking or separation of the protective aluminum from the steel core. Lightweight and Convenient Directly related to strength and sag performance is the lighter weight of Alumoweld Type M Guy Strand. This lighter weight, combined with high strength, permits Alumoweld to be installed to the same sags as steel with correspondingly lower tensions and lower stresses on the towers or supporting structures. Alumoweld ® Type M Guy Strand Alumoweld Type M Guy Strand is an economical, corrosion resistant guying material for use on overhead line structures. The thick cladding of aluminum on each wire protects the high-strength steel core from rusting and subsequent loss of strength. Costly maintenance is eliminated, and the original safety factor of the guy is maintained throughout the life of the line. continued
© 2003, AFL, all rights reserved. PP-3-00778 Revision 6, 12.19.2022 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 WIRE PRODUCTS Wire Products Contact AFL for your Alumoweld solution. Qualifications STANDARD CODE COMPONENT ER-3008 Alumium Clad Steel Wire (ACS wire) STRAND DESIGNATION NOMINAL DIAMETER OF STRAND NUMBER OF INDIVIDUAL WIRES DIAMETER OF INDIVIDUAL WIRES BREAKING LOAD WEIGHT APPROXIMATE RESISTANCE 2 IN MM IN MM LBS KG LBS/1000 FT KG/KM OHMS/1000 FT OHMS/ KM 2.8M3 0.174 4.42 3 0.081 2.06 2,800 1,270 44 65.47 2.62 8.60 4M3 0.220 5.59 3 0.102 2.59 4,000 1,814 70 104 1.65 5.41 5M3 0.247 6.27 3 0.114 2.90 5,700 2,585 89 132 1.31 4.30 6M 0.242 6.15 7 0.081 2.06 6,000 2,721 104 155 1.13 3.71 7M3 0.277 7.04 3 0.128 3.25 7,200 3,265 112 167 1.04 3.41 8M 0.272 6.91 7 0.091 2.31 8,000 3,629 131 195 0.89 2.92 10M 0.306 7.77 7 0.102 2.59 10,000 4,536 165 246 0.71 2.33 12.5M 0.343 8.71 7 0.114 2.90 12,500 5,670 208 310 0.56 1.84 14M 0.363 9.22 7 0.121 3.07 14,000 6,350 232 345 0.50 1.64 16M 0.386 9.80 7 0.128 3.25 16,000 7,257 262 390 0.45 1.48 18M 0.417 10.60 7 0.139 3.53 18,000 8,164 306 455 0.38 1.25 19M 3 0.433 11.00 7 0.144 3.67 19,000 8,618 330 491.10 0.35 1.16 20M 0.444 11.30 7 0.148 3.76 20,000 9,072 347 517 0.34 1.12 25M 0.519 13.20 7 0.173 4.39 25,000 11,340 475 707 0.25 0.82 1. Unless otherwise noted, the above guy strands are manufactured per Alumoweld Specification ER-3008. 2. For information only, not for calculation purposes. 3. Per ASTM B-416. Physical Characteristics Alumoweld ® Type M Guy Strand (cont.)
Features:
- Superior corrosion resistance compared with traditional galvanized steel guy wires
- Permanent bond between the aluminum coating and steel core for lifetime performance
- Equivalent Alumoweld options available for common sizes of galvanized guy wire
- Available in easy to handle coils or in custom drum lengths if preferred
- No special tools needed for installation
- Utilizes off-the-shelf deadends
Applications:
- Preferred over galvanized or misch metal steel in highly corrosive environments
- Commonly used for guying electrical distribution and transmission poles/towers
- Other guying applications include antennas, masts, stacks
Alumoweld® strand provides non-rusting, high-strength guys for electrical distribution and transmission lines, communications and signal lines, antenna towers, masts, stacks, and other structures. The high tensile strength of this light-weight strand is permanently protected against corrosion by a thick cladding of aluminum. Costly maintenance resulting from corrosion is eliminated, and the original safety factor of the guy is maintained throughout the life of the line.
Thick Aluminum Cladding
The Alumoweld wires used to make Type M Guy Strand is unique in that the aluminum cladding thickness is guaranteed to be not less than ten percent of the wire radius. Thus, the steel core is protected by a thick corrosion barrier that is pure aluminum, not zinc or an iron-aluminum alloy. This thick aluminum cladding provides more than a barrier against attack by corrosive elements. Even if it is breached, it will continue to protect the steel core.
Another important feature of any coated or clad wire is the bond between the coating material and the base metal which it protects. In the case of Alumoweld, the aluminum cladding and the steel core are joined together by a continuous ductile weld which eliminates cracking or separation of the protective aluminum from the steel core.
Lightweight and Convenient
Alumoweld Type M Guy Strand is easily handled and installed. It weighs less than any other high-strength guying material, and is available in all Type M sizes. A standard coil can be conveniently handled by one person. Each coil is protected from damage in transit by a heavy wrapping. Typical coil lengths are 250 feet, 500 feet, and 1000 feet in pallet groupings of 5 to 10 coils. Options and packaging varies by design. The strand is also available in lengths of 2,500 or 5,000 feet on non-returnable wooden reels or custom lengths to suit your project demands.
Installation
Alumoweld Type M Guy Strand is an ideal guying material. The ductility of the aluminum cladding prevents flaking and cracking, and protects the steel core from corrosive attack. Any of the usual dead-ending methods, such as parallel groove clamps, can be successfully used on Alumoweld strand. It is also well-suited to popular construction practices such as preformed wire and jaw-type grips. Fitting manufacturers offer complete data and recommendations for specific applications.
Helically-Formed Wire Dead Ends
Preformed, helical-type dead-ends are available for all sizes of Alumoweld Type M Guy Strand. These dead-ends are easy to install and will develop the full strength of the strand. Apply them over the straight strand so that the forming of loops is unnecessary. This reduces the overall length of strand required to make up a guy. This type of dead-end should be made from Alumoweld to assure that the corrosion resistance of the installation is uniform.
Automatic Dead-Ends
Automatic or jaw-type dead-ends may also be used with Alumoweld Type M Guy Strand. These fittings are easily installed and will develop the rated strength of the strand. The corrosion resistance of these dead-ends is coordinated with that of the strand through the use of compatible alloys.
