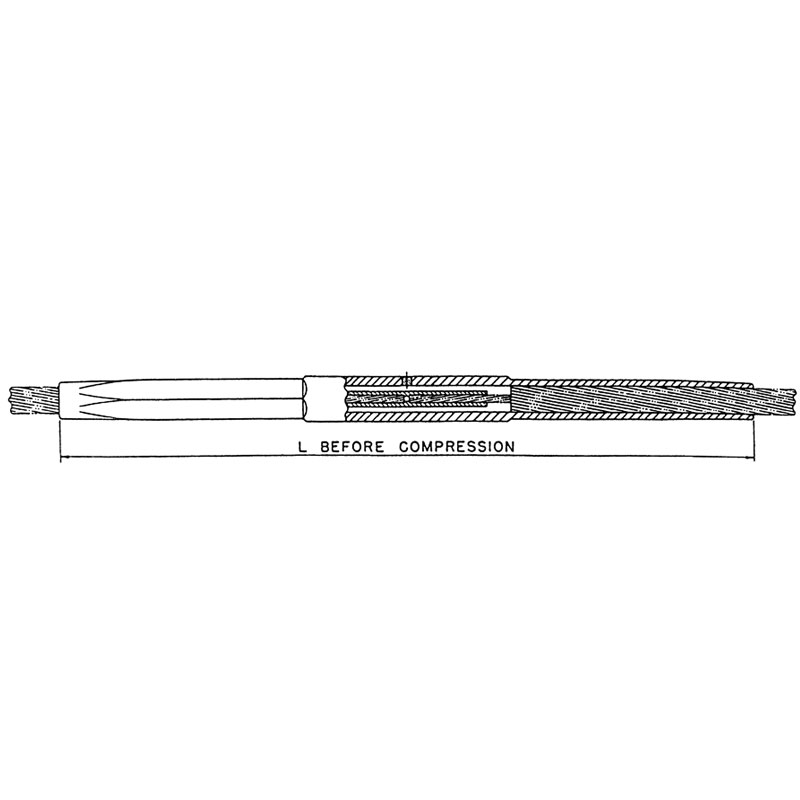

HiTemp® Compression Joints for ACSS Conductors

The 33000HT Series Compression Joint Assembly is specifically designed for ACSS conductors. The HiTemp Compression Joint is fabricated from a specially tempered aluminum that will will transfer elevated current and dissipate increased heat more efficiently.

1d9d61752401476db24988c745894d24

www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 291 HiTemp ® ACSS ACCESSORIES The 33000HT Series Compression Joint Assembly is specifically designed for ACSS conductors The HiTemp Compression Joint is fabricated from a specially tempered aluminum that will will transfer elevated current and dissipate increased heat more efficiently All HiTemp Compression Joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor Each compression joint assembly comes with an aluminum joint and a steel sleeve For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Drake ACSS Conductor, the complete catalog number is: 33043HT HiTemp Compression Joint for ACSS Conductor, 33000HT Series Notes: 1 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 2 Installation Instructions for Joints are on page 347 3 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog Joint Assembly Catalog Number Conductor Component Catalog No. Die Size Weight Total Length L Code Name Size Strand - ing Diam - eter Aluminum Joint Steel Sleeve Aluminum Steel kcmil Al/St in Aluminum Steel lbs kg lbs kg in mm 33012HT Partridge/ACSS 266 8 26/7 0 642 8076 688HT 4076 246 76AH 76SH 2 4 1 0 0 3 0 1 33 7 857 33013HT — 300 0 22/7 0 662 8076 719HT 4076 228 76AH 76SH 2 3 1 0 0 3 0 1 33 7 857 33010HT Woodcock/ACSS 336 4 22/7 0 701 8020 781HT 4076 228 20AH 76SH 2 6 1 2 0 3 0 1 36 8 936 33014HT Linnet/ACSS 336 4 26/7 0 720 8020 812HT 4010 277 20AH 10SH 2 6 1 2 0 4 0 2 36 8 936 33015HT Oriole/ACSS 336 4 30/7 0 741 8020 781HT 4010 332 20AH 10SH 2 6 1 2 0 5 0 2 36 8 936 33016HT Ptarmigan/ACSS 397 5 20/7 0 752 8020 812HT 4010 231 20AH 10SH 2 5 1 1 0 5 0 2 35 1 893 33082HT Brant/ACSS 397 5 24/7 0 772 8020 812HT 4010 261 20AH 10SH 2 5 1 1 0 4 0 2 35 1 893 33017HT Ibis/ACSS 397 5 26/7 0 783 8020 844HT 4010 302 20AH 10SH 2 3 1 0 0 5 0 2 35 1 893 33018HT Lark/ACSS 397 5 30/7 0 806 8020 844HT 4012 359 20AH 12SH 2 3 1 0 0 7 0 3 35 1 893 33019HT Tailorbird/ACSS 477 0 20/7 0 823 8020 875HT 4010 231 20AH 10SH 2 3 1 0 0 5 0 2 35 1 893 33021HT Flicker/ACSS 477 0 24/7 0 846 8024 938HT 4010 295 24AH 10SH 3 7 1 7 0 4 0 2 35 1 892 33022HT Hawk/ACSS 477 0 26/7 0 858 8024 938HT 4012 332 24AH 12SH 3 7 1 7 0 8 0 3 35 1 892 33023HT Hen/ACSS 477 0 30/7 0 883 8024 938HT 4012 397 24AH 12SH 3 7 1 7 0 8 0 4 35 1 892 33024HT Sapsucker/ACSS 556 5 22/7 0 901 8024 969HT 4010 277 24AH 10SH 3 6 1 6 0 4 0 2 35 1 893 33025HT Parakeet/ACSS 556 5 24/7 0 914 8024 969HT 4010 316 24AH 10SH 3 6 1 6 0 5 0 2 35 1 893 33026HT Dove/ACSS 556 5 26/7 0 927 8027 100HT 4012 359 27AH 12SH 5 6 2 5 0 7 0 3 38 3 974 33027HT Eagle/ACSS 556 5 30/7 0 953 8027 100HT 4014 432 27AH 14SH 5 6 2 5 1 3 0 6 38 3 974 33028HT Peacock/ACSS 605 0 24/7 0 953 8027 100HT 4012 332 27AH 12SH 5 6 2 5 0 8 0 3 38 3 974 33029HT Squab/ACSS 605 0 26/7 0 966 8027 100HT 4012 377 27AH 12SH 5 6 2 5 0 8 0 4 38 3 974 33086HT Wood Duck/ACSS 605 0 30/7 0 994 8027 106HT 4014 441 27AH 14SH 5 1 2 3 1 3 0 6 39 0 990 33030HT Teal/ACSS 605 0 30/19 0 994 8027 106HT 4014 441 27AH 14SH 5 1 2 3 1 3 0 6 39 0 990 33031HT Goldfinch/ACSS 636 0 22/7 0 963 8027 100HT 4010 295 27AH 10SH 5 6 2 5 0 4 0 2 39 0 990 33032HT Rook/ACSS 636 0 24/7 0 977 8027 106HT 4012 344 27AH 12SH 5 1 2 3 0 7 0 3 39 0 990 Ordering Instructions www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 292 HiTemp ® ACSS ACCESSORIES HiTemp Compression Joint for ACSS Conductor, 33000HT Series (cont.) Joint Assembly Catalog Number Conductor Component Catalog No. Die Size Weight Total Length L Code Name Size Strand - ing Diam - eter Aluminum Joint Steel Sleeve Aluminum Steel kcmil Al/St in Aluminum Steel lbs kg lbs kg in mm 33033HT Grosbeak/ACSS 636 0 26/7 0 990 8027 106HT 4012 386 27AH 12SH 5 1 2 3 0 8 0 4 39 0 990 33087HT Scoter/ACSS 636 0 30/7 1 019 8027 106HT 4014 453 27AH 14SH 5 1 2 3 1 2 0 5 39 0 990 33034HT Egret/ACSS 636 0 30/19 1 019 8027 106HT 4014 453 27AH 14SH 5 1 2 3 1 2 0 5 39 0 990 33035HT Flamingo/ACSS 666 6 24/7 1 000 8027 106HT 4012 351 27AH 12SH 5 1 2 3 0 7 0 4 39 0 990 33036HT Gannet/ACSS 666 6 26/7 1 014 8027 106HT 4014 397 27AH 14SH 5 1 2 3 1 2 0 5 39 0 990 33084HT Stilt/ACSS 715 5 24/7 1 036 8030 109HT 4012 359 30AH 12SH 6 5 3 0 0 7 0 3 38 0 965 33037HT Starling/ACSS 715 5 26/7 1 051 8030 116HT 4014 406 30AH 14SH 6 5 3 0 1 2 0 5 40 1 1019 33038HT Redwing/ACSS 715 5 30/19 1 081 8030 116HT 4016 500 30AH 16SH 6 5 3 0 1 7 0 8 40 1 1019 33085HT Cuckoo/ACSS 795 0 24/7 1 092 8030 116HT 4012 386 30AH 12SH 6 5 3 0 0 8 0 4 40 1 1019 33043HT Drake/ACSS 795 0 26/7 1 108 8030 122HT 4014 432 30AH 14SH 6 5 3 0 1 3 0 6 40 1 1019 33041HT Macaw/ACSS 795 0 42/7 1 055 8030 116HT 4010 261 30AH 10SH 6 5 3 0 0 4 0 2 40 1 1019 33040HT Tern/ACSS 795 0 45/7 1 063 8030 116HT 4010 277 30AH 10SH 6 5 3 0 0 4 0 2 40 1 1019 33042HT Condor/ACSS 795 0 54/7 1 092 8030 116HT 4012 386 30AH 12SH 6 5 3 0 0 8 0 4 40 1 1019 33044HT Mallard/ACSS 795 0 30/19 1 140 8030 122HT 4016 516 30AH 16SH 6 3 2 9 1 6 0 7 42 0 1066 33047HT Ruddy/ACSS 900 0 45/7 1 131 8030 122HT 4010 302 30AH 10SH 6 3 2 9 0 5 0 2 42 0 1066 33046HT Canary/ACSS 900 0 54/7 1 162 8030 122HT 4014 406 30AH 14SH 6 3 2 9 1 2 0 5 42 0 1066 33045HT Corncrake/ACSS 954 0 20/7 1 165 8030 125HT 4012 309 30AH 12SH 6 1 2 8 0 7 0 3 42 1 1071 33088HT Redbird/ACSS 954 0 24/7 1 196 8030 125HT 4014 422 30AH 14SH 6 1 2 8 1 3 0 6 42 1 1071 33047HT Rail/ACSS 954 0 45/7 1 165 8030 122HT 4010 302 30AH 10SH 6 3 2 9 0 5 0 2 42 0 1066 33089HT Towhee/ACSS 954 0 48/7 1 175 8030 125HT 4012 344 30AH 12SH 6 1 2 8 0 7 0 3 42 1 1071 33049HT Cardinal/ACSS 954 0 54/7 1 196 8030 125HT 4014 422 30AH 14SH 6 1 2 8 1 2 0 5 42 1 1071 33090HT Canvasback/ACSS 954 0 30/19 1 248 8034 134HT 4018 578 34AH 18SH 8 8 4 0 2 0 0 9 44 7 1136 33091HT Snowbird/ACSS 1033 5 42/7 1 203 8034 128HT 4010 277 34AH 10SH 6 5 2 9 0 5 0 2 42 1 1071 33050HT Ortolan/ACSS 1033 5 45/7 1 212 8034 134HT 4010 316 34AH 10SH 8 8 4 0 0 4 0 2 44 7 1136 33052HT Curlew/ACSS 1033 5 54/7 1 245 8034 134HT 4014 432 34AH 14SH 8 8 4 0 1 3 0 6 44 7 1136 33053HT Bluejay/ACSS 1113 0 45/7 1 259 8034 134HT 4012 332 34AH 12SH 8 8 4 0 0 7 0 3 44 7 1136 33055HT Finch/ACSS 1113 0 54/19 1 293 8034 138HT 4014 453 34AH 14SH 9 0 4 1 1 2 0 5 45 0 1143 33056HT Bunting/ACSS 1192 5 45/7 1 302 8034 138HT 4012 344 34AH 12SH 9 0 4 1 0 7 0 3 45 0 1143 33058HT Grackle/ACSS 1192 5 54/19 1 338 8036 144HT 4014 453 36AH 14SH 10 0 5 3 1 2 0 5 45 5 1155 33059HT Bittern/ACSS 1272 0 45/7 1 345 8036 144HT 4012 351 36AH 12SH 10 0 4 5 0 7 0 4 45 5 1155 33054HT Diver/Acss 1272 0 48/7 1 357 8036 144HT 4014 406 36AH 14SH 10 0 4 5 1 2 0 5 45 5 1155 33061HT Pheasant/ACSS 1272 0 54/19 1 382 8036 147HT 4016 500 36AH 16SH 9 8 4 5 1 7 0 8 46 0 1168 33062HT Dipper/ACSS 1351 5 45/7 1 386 8036 147HT 4012 377 36AH 12SH 9 8 4 5 0 8 0 4 46 0 1168 33064HT Martin/ACSS 1351 5 54/19 1 424 8038 156HT 4016 500 38AH 16SH 11 0 5 0 1 6 0 7 46 3 1178 33065HT Bobolink/ACSS 1431 0 45/7 1 427 8038 150HT 4012 377 38AH 12SH 11 7 5 3 0 8 0 4 46 3 1178 33067HT Plover/ACSS 1431 0 54/19 1 465 8038 156HT 4016 516 38AH 16SH 11 0 5 0 1 6 0 7 46 3 1178 33068HT Nuthatch/ACSS 1510 0 45/7 1 466 8038 156HT 4012 386 38AH 12SH 11 0 5 0 0 8 0 4 46 3 1178 33070HT Parrot/ACSS 1510 0 54/19 1 505 8040 162HT 4016 531 40AH 16SH 12 6 5 7 1 6 0 7 47 0 1193 33069HT Ratite/ACSS 1590 0 42/7 1 492 8040 162HT 4012 344 40AH 12SH 12 6 5 7 0 7 0 3 47 0 1193 33071HT Lapwing/ACSS 1590 0 45/7 1 504 8040 162HT 4012 397 40AH 12SH 12 6 5 7 0 8 0 4 47 0 1193 33072HT Falcon/ACSS 1590 0 54/19 1 544 8040 162HT 4018 546 40AH 18SH 12 6 5 7 2 1 1 0 47 0 1193 33073HT Chukar/ACSS 1780 0 84/19 1 602 8042 178HT 4014 453 42AH 14SH 13 4 6 1 1 2 0 5 48 2 1225 33074HT Mockingbird/ACSS 2034 5 72/7 1 681 8042 178HT 4014 359 42AH 14SH 13 4 6 1 1 4 0 6 48 2 1225 33075HT Roadrunner/ACSS 2057 0 76/19 1 700 8042 178HT 4014 422 42AH 14SH 13 4 6 1 1 2 0 5 48 2 1225 33076HT Bluebird/ACSS 2156 0 84/19 1 762 8044 184HT 4016 516 44AH 16SH 13 9 6 3 1 6 0 7 44 6 1133 33077HT Kiwi/ACSS 2167 0 72/7 1 735 8044 181HT 4012 377 44AH 12SH 14 9 6 7 0 8 0 4 46 6 1184 33078HT Thrasher/ACSS 2312 0 76/19 1 802 8044 188HT 4014 422 44AH 14SH 13 9 6 3 1 2 0 5 46 6 1184 33079HT Joree/ACSS 2515 0 76/19 1 880 8048 197HT 4014 453 44AH 14SH 16 5 7 5 1 2 0 5 52 3 1330

Features:

Specially tempered aluminum
Standard AH and SH dies

Applications:

Compression joint for ACSS conductors

The 33000HT Series Compression Joint Assembly is specifically designed for ACSS conductors. The HiTemp® Compression Joint is fabricated from a specially tempered aluminum that will will transfer elevated current and dissipate increased heat more
efficiently.

All HiTemp Compression Joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor. Each compression joint assembly comes with an aluminum joint and a steel sleeve.

For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
