The 42000HT Series Compression Joint Assembly is specifically designed for ACSS/TW conductors. The HiTemp Compression Joint is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
1d9d61752401476db24988c745894d24
www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 315 ACSS/TW ACCESSORIES The 420000HT Series Compression Joint Assembly is specifically designed for ACSS/TW conductors The HiTemp Compression Joints are fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently All HiTemp Compression Joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor Each compression joint assembly comes with an aluminum joint and a steel sleeve For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Ordering Instructions HiTemp Compression Joint for ACSS/TW Conductor, 420000HT Series Notes: 1 HiTemp AFL Filler Compound (AFCHT) Requirements are on page 340 2 Installation Instructions for Joints are on page 347 3 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 954 Cardinal ACSS/TW Conductor, the complete catalog number is: 421084HT JOINT ASSEMBLY CATALOG NUMBER CONDUCTOR COMPONENT CATALOG NO. DIE SIZE WEIGHT TOTAL LENGTH L CODE NAME SIZE TYPE STRANDING DIA. ALUMINUM JOINT STEEL SLEEVE ALUMINUM STEEL KCMIL AL/ST IN ALUMINUM STEEL LBS KG LBS KG IN MM 420693HT Oriole/ACSS/TW 336 4 23 18/7 0 693 8020 781HT 4010 332 20AH 10SH 2 6 1 2 0 5 0 2 36 8 937 420776HT Flicker/ACSS/TW 477 13 18/7 0 776 8024 938HT 4010 24 24AH 10SH 3 7 1 7 0 4 0 2 35 1 892 420789HT Hawk/ACSS/TW 477 16 18/7 0 789 8024 938HT 4012 332 24AH 12SH 3 7 1 7 0 8 0 3 35 1 892 420825HT Hen/ACSS/TW 477 23 18/7 0 825 8024 938HT 4012 397 24AH 12SH 3 7 1 7 0 8 0 4 35 1 892 420835HT Parakeet/ACSS/TW 556 5 13 18/7 0 835 8024 969HT 4010 316 24AH 10SH 3 6 1 6 0 5 0 2 35 1 894 420852HT Dove/ACSS/TW 556 5 16 20/7 0 852 8024 969HT 4012 359 24AH 12SH 3 6 1 6 0 7 0 3 35 1 894 420858HT Calumet/ACSS/TW 565 3 16 18/7 0 858 8024 969HT 4012 359 24AH 12SH 3 6 1 6 0 7 0 3 35 1 894 420846HT Mohawk/ACSS/TW 571 7 13 18/7 0 846 8024 969HT 4012 332 24AH 12SH 3 6 1 6 0 8 0 3 35 1 894 420890HT Rook/ACSS/TW 636 13 19/7 0 89 8027 106HT 4012 344 27AH 12SH 5 1 2 3 0 7 0 3 39 991 420908HT Grosbeak/ACSS/TW 636 16 20/7 0 908 8027 106HT 4012 386 27AH 12SH 5 1 2 3 0 8 0 4 39 991 420953HT Scoter/ACSS/TW 636 23 18/7 0 953 8027 106HT 4014 484 27AH 14SH 5 1 2 3 1 2 0 6 39 991 420927HT Oswego/ACSS/TW 664 8 16 20/7 0 927 8027 106HT 4012 391 27AH 12SH 5 1 2 3 0 8 0 4 39 991 420913HT Mystic/ACSS/TW 666 6 13 20/7 0 913 8027 106HT 4012 351 27AH 12SH 5 1 2 3 0 8 0 4 39 991 420990HT Wabash/ACSS/TW 762 8 16 20/7 0 99 8030 116HT 4014 432 30AH 14SH 6 5 3 0 1 3 0 6 40 1 1019 420977HT Maumee/ACSS/TW 768 2 13 20/7 0 977 8030 116HT 4014 381 30AH 14SH 6 5 3 0 1 2 0 6 40 1 1019 420960HT Tern/ACSS/TW 795 7 17/7 0 96 8030 116HT 4010 277 30AH 10SH 6 5 3 0 0 4 0 2 40 1 1019 420980HT Puffin/ACSS/TW 795 10 18/7 0 98 8030 116HT 4012 351 30AH 12SH 6 5 3 0 0 8 0 4 40 1 1019 420993HT Condor/ACSS/TW 795 13 20/7 0 993 8030 116HT 4012 386 30AH 12SH 6 5 3 0 0 8 0 4 40 1 1019 421010HT Drake/ACSS/TW 795 16 20/7 1 01 8030 122HT 4014 432 30AH 14SH 6 5 3 0 1 3 0 6 40 1 1019 421080HT Canary/ACSS/TW 900 13 30/7 1 055 8030 122HT 4014 406 30AH 14SH 6 3 2 9 1 2 0 6 42 1067 421077HT Fraser/ACSS/TW 946 7 10 35/7 1 077 8030 122HT 4012 359 30AH 12SH 6 3 2 9 0 7 0 3 42 1067 421044HT Phoenix/ACSS/TW 954 5 30/7 1 044 8030 122HT 4012 277 30AH 12SH 6 3 2 9 0 8 0 4 42 1067 421061HT Rail/ACSS/TW 954 7 32/7 1 061 8030 122HT 4010 302 30AH 10SH 6 3 2 9 0 5 0 2 42 1067

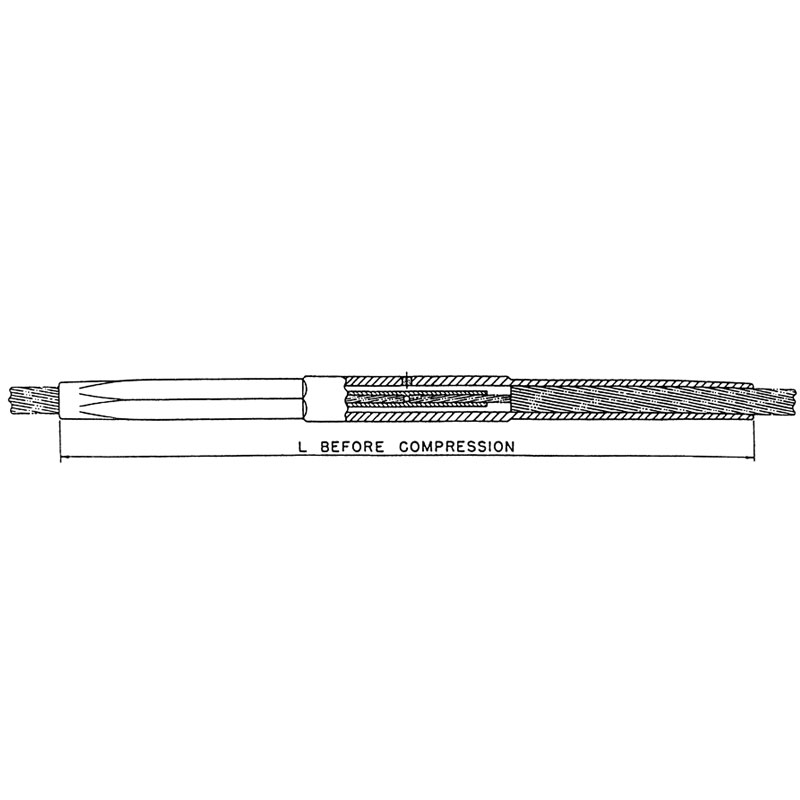

www.AFLglobal.com or 800-866-7385 HiTemp ® © 2003, AFL, all rights reserved. PP-3-00748, Revision 3, 9.13.16 Specifications are subject to change without notice. 316 ACSS/TW ACCESSORIES HiTemp Compression Joint for ACSS/TW Conductor, 420000HT Series (cont.) JOINT ASSEMBLY CATALOG NUMBER CONDUCTOR COMPONENT CATALOG NO. DIE SIZE WEIGHT TOTAL LENGTH L CODE NAME SIZE TYPE STRANDING DIA. ALUMINUM JOINT STEEL SLEEVE ALUMINUM STEEL KCMIL AL/ST IN ALUMINUM STEEL LBS KG LBS KG IN MM 421084HT Cardinal/ACSS/TW 954 13 20/7 1 084 8030 125HT 4014 422 30AH 14SH 6 1 2 8 0 8 0 4 42 1 1072 421060HT Kettle/ACSS/TW 957 2 7 32/7 1 06 8030 122HT 4012 316 30AH 12SH 6 3 2 9 0 8 0 4 42 1067 421108HT Suwannee/ACSS/TW 959 6 16 22/7 1 108 8030 122HT 4014 453 30AH 14SH 6 3 2 9 1 3 0 6 42 1067 421092HT Columbia/ACSS/TW 966 2 13 21/7 1 092 8030 122HT 4014 441 30AH 14SH 6 3 2 9 1 3 0 6 42 1067 421089HT Snowbird/ACSS/TW 1033 5 5 30/7 1 089 8034 128HT 4012 277 34AH 12SH 9 4 1 0 8 0 4 42 1 1070 421102HT Ortolan/ACSS/TW 1033 5 7 32/7 1 102 8034 128HT 4010 324 34AH 10SH 9 4 1 0 5 0 2 42 1 1070 421128HT Curlew/ACSS/TW 1033 5 13 22/7 1 128 8034 134HT 4014 441 34AH 14SH 8 8 4 0 1 3 0 6 44 7 1137 421131HT — 1080 7 20/7 1 131 8034 128HT 4012 332 34AH 12SH 9 4 1 0 8 0 3 42 1 1070 421129HT Avocet/ACSS/TW 1113 5 30/7 1 129 8034 128HT 4012 29 34AH 12SH 9 4 1 0 8 0 4 42 1 1070 421143HT Bluejay/ACSS/TW 1113 7 33/7 1 143 8034 134HT 4012 332 34AH 12SH 8 8 4 0 0 8 0 3 44 7 1137 421185HT Finch/ACSS/TW 1113 13 38/19 1 185 8034 134HT 4014 453 34AH 14SH 8 8 4 0 1 2 0 6 44 7 1137 421165HT Genesee/ACSS/TW 1158 7 33/7 1 165 8034 134HT 4012 351 34AH 12SH 8 8 4 0 0 8 0 4 44 7 1137 421196HT Hudson/ACSS/TW 1158 4 13 26/7 1 196 8034 138HT 4014 484 34AH 14SH 9 4 1 1 2 0 6 45 1143 421155HT Cheyenne/ACSS/TW 1168 1 5 30/7 1 155 8034 134HT 4012 295 34AH 12SH 8 8 4 0 0 8 0 4 44 7 1137 421167HT Oxbird/ACSS/TW 1192 5 5 30/7 1 167 8034 138HT 4012 302 34AH 12SH 9 4 1 0 8 0 4 45 1143 421181HT Bunting/ACSS/TW 1192 5 7 33/7 1 181 8034 138HT 4012 344 34AH 12SH 9 4 1 0 7 0 3 45 1143 421225HT Grackle/ACSS/TW 1192 5 13 38/19 1 225 8036 144HT 4014 484 36AH 14SH 10 4 6 1 2 0 6 45 5 1156 421245HT Yukon/ACSS/TW 1233 6 13 38/19 1 245 8034 138HT 4014 5 34AH 14SH 9 4 1 1 2 0 6 45 1143 421213HT Nelson/ACSS/TW 1257 1 7 35/7 1 213 8034 138HT 4012 351 34AH 12SH 9 4 1 0 8 0 4 45 1143 421202HT Scissortail/ACSS/TW 1272 5 30/7 1 202 8036 144HT 4012 316 36AH 12SH 10 4 6 0 8 0 4 45 5 1156 421203HT Catawba/ACSS/TW 1272 5 30/7 1 203 8034 138HT 4012 316 34AH 12SH 9 4 1 0 8 0 4 45 1143 421220HT Bittern/ACSS/TW 1272 7 35/7 1 22 8036 144HT 4012 351 36AH 12SH 10 4 6 0 8 0 4 45 5 1156 421264HT Pheasant/ACSS/TW 1272 13 39/19 1 264 8036 147HT 4016 5 36AH 16SH 9 8 4 5 1 7 0 8 46 1168 421290HT Thames/ACSS/TW 1334 6 13 39/19 1 29 8036 144HT 4014 516 36AH 14SH 10 4 6 1 2 0 6 45 5 1156 421256HT Dipper/ACSS/TW 1351 5 7 35/7 1 256 8036 147HT 4012 377 36AH 12SH 9 8 4 5 0 8 0 4 46 1168 421300HT Martin/ACSS/TW 1351 5 13 39/19 1 3 8038 150HT 4016 516 38AH 16SH 11 7 5 3 1 6 0 7 46 4 1178 421259HT Mackenzie/ACSS/TW 1359 7 7 36/7 1 259 8036 144HT 4012 359 36AH 12SH 10 4 6 0 7 0 3 45 5 1156 421248HT Truckee/ACSS/TW 1372 5 5 30/7 1 248 8034 138HT 4012 318 34AH 12SH 9 4 1 0 8 0 4 45 1143 421291HT Bobolink/ACSS/TW 1431 7 36/7 1 291 8038 150HT 4012 381 38AH 12SH 11 7 5 3 0 8 0 4 46 4 1178 421337HT Plover/ACSS/TW 1431 13 37/19 1 337 8038 156HT 4016 516 38AH 16SH 11 5 0 1 6 0 7 46 4 1178 421340HT Merrimack/ACSS/TW 1433 6 13 39/19 1 34 8038 156HT 4016 521 38AH 16SH 11 5 0 1 6 0 7 46 4 1178 421302HT Miramichi/ACSS/TW 1455 3 7 36/7 1 302 8038 156HT 4014 397 38AH 14SH 11 5 0 1 3 0 6 46 4 1178 421292HT St Croix/ACSS/TW 1467 8 5 33/7 1 292 8038 156HT 4012 332 38AH 12SH 11 5 0 0 8 0 3 46 4 1178 421382HT Rio Grande/ACSS/TW 1533 3 13 39/19 1 382 8038 156HT 4016 546 38AH 16SH 11 5 0 1 6 0 7 46 4 1178 421345HT Potomac/ACSS/TW 1557 4 7 36/7 1 345 8038 156HT 4014 406 38AH 14SH 11 5 0 1 2 0 6 46 4 1178 421334HT Platte/ACSS/TW 1569 5 33/7 1 334 8038 156HT 4012 337 38AH 12SH 11 5 0 0 8 0 4 46 4 1178 421358HT Lapwing/ACSS/TW 1590 7 36/7 1 358 8040 162HT 4012 397 40AH 12SH 12 6 5 7 0 8 0 4 47 1194 421408HT Falcon/ACSS/TW 1590 13 42/19 1 408 8040 162HT 4018 546 40AH 18SH 12 6 5 7 2 1 1 0 47 1194 421424HT Pecos/ACSS/TW 1622 13 39/19 1 424 8040 162HT 4018 578 40AH 18SH 12 6 5 7 2 0 9 47 1194 421386HT Schuylkill/ACSS/TW 1657 4 7 36/7 1 386 8040 162HT 4014 422 40AH 14SH 12 6 5 7 1 2 0 5 47 1194 421470HT James/ACSS/TW 1730 6 13 34/19 1 47 8042 168HT 4018 578 42AH 18SH 13 6 6 2 2 0 9 48 3 1226 421427HT Pee Dee/ACSS/TW 1758 6 7 37/7 1 427 8040 162HT 4014 432 40AH 14SH 12 4 5 6 1 3 0 6 47 1194 421445HT Chukar/ACSS/TW 1780 8 37/19 1 445 8042 178HT 4014 453 42AH 14SH 13 4 6 1 1 2 0 6 48 3 1226 421545HT Cumberland/ACSS/TW 1926 9 13 54/19 1 545 8042 178HT 4018 609 42AH 18SH 13 4 6 1 2 0 9 48 3 1226 421504HT Athabaska/ACSS/TW 1949 6 7 42/7 1 504 8042 178HT 4014 453 42AH 14SH 13 4 6 1 1 2 0 6 48 3 1226 421602HT Powder/ACSS/TW 2153 8 8 64/19 1 602 8044 184HT 4014 516 44AH 14SH 13 9 6 3 1 2 0 6 44 6 1133 421608HT Bluebird/ACSS/TW 2156 8 64/19 1 608 8044 184HT 4016 516 44AH 16SH 13 9 6 3 1 6 0 7 44 6 1133 421762HT Santee/ACSS/TW 2627 3 8 64/19 1 762 8048 191HT 4016 578 48AH 16SH 19 9 9 1 1 5 0 7 52 5 1334
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression joint for ACSS/TW conductors
The 42000HT Series Compression Joint Assembly is specifically designed for ACSS/TW conductors. The HiTemp® Compression Joint is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
All HiTemp Compression Joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor. Each compression joint assembly comes with an aluminum joint and a steel sleeve.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
Comealongs and HiTemp Comealongs for ACSR AAC AAAC ACAR ACSS and ACSSTW Conductors,AFL Filler Compound,Alnox Electrical Joint Compound,Alnox UG Electrical Joint Compound,HiTemp® AFL Filler Compound (AFCHT™),HiTemp® AFL Universal Compound (HiTUC),No. 2 Electrical Joint Compound,HiTemp® Compression Dead Ends for ACSS Conductors,HiTemp® Compression Dead Ends for ACSS/TW Conductors,HiTemp® Compression Joints for ACSS Conductors,HiTemp® Compression Jumper for ACSS Conductors,HiTemp® Compression Jumper for ACSS/TW Conductors,HiTemp® Compression Repair Sleeve for ACSS Conductors,HiTemp® Compression Repair Sleeve for ACSS/TW Conductors,HiTemp® Compression Tee Connector for ACSS Conductors
683
HiTemp® Compression Joints for ACSS/TW Conductors
Close
HiTemp® Compression Joints for ACSS/TW Conductors
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression joint for ACSS/TW conductors
PRODUCT DESCRIPTION
The 42000HT Series Compression Joint Assembly is specifically designed for ACSS/TW conductors. The HiTemp® Compression Joint is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently.
All HiTemp Compression Joints are designed for full tension use, achieving a minimum of 95% of the ASTM-rated strength of the conductor. Each compression joint assembly comes with an aluminum joint and a steel sleeve.
For die sizes 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish.
