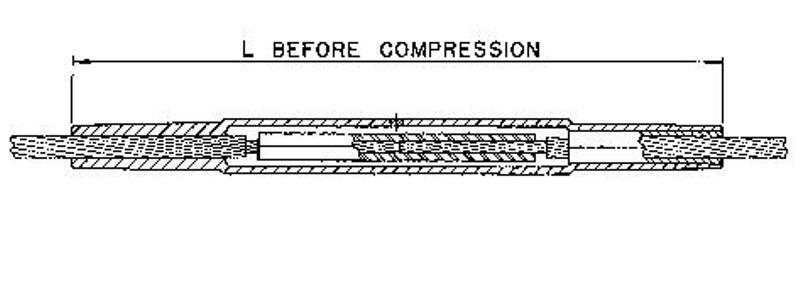

www.AFLglobal.com or 800-866-7385 27 Standard Compression © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. ACSR ACCESSORIES Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Drake ACSR conductor, the complete catalog number is: 33043 Compression Joints—33000 Series for ACSR Conductors The 33000 Series Compression Joint Assembly is specifically designed for ACSR conductors The aluminum body is fabricated from AFL seamless drawn aluminum All compression joints are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor on which they are used Each compression joint assembly comes with an aluminum joint and a steel sleeve For die size sections 30AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish Notes: 1 AFL Filler Compound (AFC) Requirements are on page 115 2 Installation Instructions for Joints are on page 137 JOINT ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM JOINT CATALOG NUMBER STEEL JOINT CATALOG NUMBER DIE SIZE WEIGHT DIMENSION L CODE WORD AWG OR KCMIL STRANDING DIA. ALUMINUM HEX DIE STEEL HEX DIE ALUMINUM STEEL AL/ST IN LBS KG LBS KG IN MM 33006 Raven 1/0 6/1 0 398 8074 438 4074 148 74AH 74SH 0 7 0 31 0 1 0 05 19 3 489 33007 Quail 2/0 6/1 0 447 8074 484 4074 160 74AH 74SH 0 6 0 28 0 1 0 05 19 3 489 33008 Pigeon 3/0 6/1 0 502 8075 547 4075 179 75AH 75SH 1 1 0 50 0 2 0 07 21 5 546 33009 Penguin 4/0 6/1 0 563 8075 609 4075 228 75AH 75SH 1 0 0 44 0 1 0 06 21 5 546 33010 Waxwing 266 8 18/1 0 609 8076 656 4074 132 76AH 74SH 1 9 0 86 0 1 0 04 25 8 654 33011 Owl 266 8 6/7 0 633 8076 688 4076 221 76AH 76SH 1 8 0 82 0 3 0 12 25 8 654 33012 Partridge 266 8 26/7 0 642 8076 688 4076 246 76AH 76SH 1 8 0 82 0 3 0 12 25 8 654 33081 Ostrich 300 0 26/7 0 680 8076 719 4076 261 76AH 76SH 1 7 0 86 0 3 0 11 25 8 654 33013 Merlin 336 4 18/1 0 684 8076 719 4074 148 76AH 74SH 1 7 0 86 0 1 0 05 25 8 654 33014 Linnet 336 4 26/7 0 721 8020 781 4010 277 20AH 10SH 2 0 0 91 0 4 0 19 28 9 734 33015 Oriole 336 4 30/7 0 741 8020 781 4010 332 20AH 10SH 2 0 0 91 0 5 0 21 28 9 734 33016 Chickadee 397 5 18/1 0 743 8020 781 4074 160 20AH 74SH 2 0 0 91 0 1 0 05 28 9 734 33082 Brant 397 5 24/7 0 772 8020 812 4010 261 20AH 10SH 1 9 0 86 0 4 0 20 27 2 691 33017 Ibis 397 5 26/7 0 783 8020 844 4010 302 20AH 10SH 1 7 0 77 0 5 0 23 27 2 691 33018 Lark 397 5 30/7 0 806 8020 844 4012 359 20AH 12SH 1 7 0 77 0 7 0 34 27 2 691 33020 Pelican 477 0 18/1 0 814 8024 875 4075 179 24AH 75SH 2 4 1 09 0 2 0 09 21 0 533 www.AFLglobal.com or 800-866-7385 © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. 28 Standard Compression ACSR ACCESSORIES JOINT ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM JOINT CATALOG NUMBER STEEL JOINT CATALOG NUMBER DIE SIZE WEIGHT DIMENSION L CODE WORD AWG OR KCMIL STRANDING DIA. ALUMINUM HEX DIE STEEL HEX DIE ALUMINUM STEEL AL/ST IN LBS KG LBS KG IN MM 33021 Flicker 477 0 24/7 0 846 8024 938 4010 295 24AH 10SH 2 9 1 32 0 4 0 20 27 1 689 33022 Hawk 477 0 26/7 0 858 8024 938 4012 332 24AH 12SH 2 9 1 32 0 8 0 34 27 1 689 33023 Hen 477 0 30/7 0 883 8024 938 4012 397 24AH 12SH 2 9 1 32 0 8 0 37 27 1 689 33024 Osprey 556 5 18/1 0 879 8024 938 4075 188 24AH 75SH 2 9 1 32 0 1 0 06 27 1 689 33025 Parakeet 556 5 24/7 0 914 8024 969 4010 316 24AH 10SH 2 8 1 27 0 5 0 22 27 2 691 33026 Dove 556 5 26/7 0 927 8024 969 4012 359 24AH 12SH 2 8 1 27 0 7 0 34 27 2 691 33027 Eagle 556 5 30/7 0 953 8027 100 4014 432 27AH 14SH 4 4 2 00 1 3 0 59 30 4 772 33028 Peacock 605 0 24/7 0 953 8027 100 4012 332 27AH 12SH 4 4 2 00 0 8 0 34 30 4 772 33029 Squab 605 0 26/7 0 966 8027 100 4012 377 27AH 12SH 4 4 2 00 0 8 0 38 30 4 772 33030 Teal 605 0 30/19 0 994 8027 106 4014 441 27AH 14SH 4 1 1 86 1 3 0 59 31 0 787 33083 Swift 636 0 36/1 0 930 8027 100 4074 148 27AH 74SH 4 4 2 00 0 1 0 05 30 4 772 33031 Kingbird 636 0 18/1 0 940 8027 100 4075 228 27AH 75SH 4 4 2 00 0 1 0 06 30 4 772 33032 Rook 636 0 24/7 0 977 8027 106 4012 344 27AH 12SH 4 1 1 86 0 7 0 33 31 0 787 33033 Grosbeak 636 0 26/7 0 990 8027 106 4012 386 27AH 12SH 4 1 1 86 0 8 0 37 31 0 787 33034 Egret 636 0 30/19 1 019 8027 106 4014 453 27AH 14SH 4 1 1 86 1 2 0 54 31 0 787 33035 Flamingo 666 6 24/7 1 000 8027 106 4012 351 27AH 12SH 4 1 1 86 0 8 0 35 31 0 787 33084 Stilt 715 5 24/7 1 036 8030 109 4012 359 30AH 12SH 5 1 2 31 0 7 0 34 30 0 762 33037 Starling 715 5 26/7 1 051 8030 109 4014 406 30AH 14SH 5 1 2 31 1 2 0 54 30 0 762 33038 Redwing 715 5 30/19 1 081 8030 116 4016 500 30AH 16SH 5 1 2 31 1 7 0 77 32 1 816 33039 Coot 795 0 36/1 1 040 8030 109 4074 160 30AH 74SH 5 1 2 31 0 1 0 05 30 0 762 33040 Tern 795 0 45/7 1 063 8030 116 4010 277 30AH 10SH 5 1 2 31 0 4 0 19 32 1 816 33042 Condor 795 0 54/7 1 093 8030 116 4012 386 30AH 12SH 5 1 2 31 0 8 0 37 32 1 816 33043 Drake 795 0 26/7 1 108 8030 116 4014 432 30AH 14SH 5 1 2 31 1 3 0 59 32 1 816 33044 Mallard 795 0 30/19 1 140 8030 122 4016 516 30AH 16SH 5 1 2 31 1 6 0 73 34 0 864 33085 Cuckoo 795 0 24/7 1 092 8030 116 4012 386 30AH 12SH 5 1 2 31 0 9 0 39 32 1 816 33047 Ruddy 900 0 45/7 1 131 8030 122 4010 302 30AH 10SH 5 1 2 31 0 5 0 23 34 0 864 33046 Canary 900 0 54/7 1 162 8030 122 4014 406 30AH 14SH 5 1 2 31 1 2 0 54 34 0 864 33086 Catbird 954 0 36/1 1 140 8030 122 4075 179 30AH 75SH 5 1 2 31 0 2 0 07 34 0 864 33047 Rail 954 0 45/7 1 165 8030 122 4010 302 30AH 10SH 5 1 2 31 0 5 0 23 34 0 864 33049 Cardinal 954 0 54/7 1 196 8030 125 4014 422 30AH 14SH 4 9 2 22 1 2 0 54 34 2 868 33087 Tanager 1033 5 36/1 1 186 8030 125 4075 179 30AH 75SH 4 9 2 22 0 2 0 07 34 2 868 33050 0rtolan 1033 5 45/7 1 212 8034 128 4010 316 34AH 10SH 7 2 3 27 0 5 0 22 34 1 867 33052 Curlew 1033 5 54/7 1 244 8034 134 4014 432 34AH 14SH 7 1 3 22 1 3 0 59 36 8 933 33053 Bluejay 1113 0 45/7 1 259 8034 134 4012 332 34AH 12SH 7 1 3 22 0 8 0 34 36 8 933 33055 Finch 1113 0 54/19 1 293 8034 138 4014 453 34AH 14SH 7 4 3 36 1 2 0 54 37 0 940 33056 Bunting 1192 5 45/7 1 302 8034 138 4012 344 34AH 12SH 7 4 3 36 0 7 0 33 37 0 940 33058 Grackle 1192 5 54/19 1 333 8036 144 4014 453 36AH 14SH 8 2 3 72 1 2 0 54 37 5 953 33059 Bittern 1272 0 45/7 1 345 8036 144 4012 351 36AH 12SH 8 2 3 72 0 8 0 35 37 5 953 33061 Pheasant 1272 0 54/19 1 382 8036 147 4016 500 36AH 16SH 8 0 3 63 1 7 0 77 38 0 965 33062 Dipper 1351 5 45/7 1 385 8036 147 4012 377 36AH 12SH 8 0 3 63 0 8 0 36 38 0 965 33064 Martin 1351 5 54/19 1 424 8038 150 4016 500 38AH 16SH 9 5 4 31 1 7 0 77 38 4 975 33065 Bobolink 1431 0 45/7 1 427 8038 150 4012 377 38AH 12SH 9 5 4 31 0 8 0 36 38 4 975 Compression Joints—33000 Series for ACSR Conductors (cont.) www.AFLglobal.com or 800-866-7385 29 Standard Compression © 2004, AFL, all rights reserved. PP-3-00766, Revision 4, 4.19.17 Specifications are subject to change without notice. ACSR ACCESSORIES JOINT ASSEMBLY CATALOG NUMBER CONDUCTOR ALUMINUM JOINT CATALOG NUMBER STEEL JOINT CATALOG NUMBER DIE SIZE WEIGHT DIMENSION L CODE WORD AWG OR KCMIL STRANDING DIA. ALUMINUM HEX DIE STEEL HEX DIE ALUMINUM STEEL AL/ST IN LBS KG LBS KG IN MM 33067 Plover 1431 0 54/19 1 465 8038 156 4016 516 38AH 16SH 9 0 4 08 1 6 0 73 38 4 975 33068 Nuthatch 1510 5 45/7 1 466 8038 156 4012 388 38AH 12SH 9 0 4 08 0 8 0 37 38 4 975 33070 Parrot 1510 5 54/19 1 506 8040 162 4016 531 40AH 16SH 10 4 4 72 1 6 0 73 39 0 991 33071 Lapwing 1590 0 45/7 1 504 8040 162 4012 397 40AH 12SH 10 4 4 72 0 8 0 37 39 0 991 33072 Falcon 1590 0 54/19 1 545 8040 162 4018 546 40AH 18SH 10 4 4 72 2 1 0 95 39 0 991 33073 Chukar 1780 0 84/19 1 602 8042 178 4014 453 42AH 14SH 11 0 4 99 1 2 0 54 40 3 1022 33075 — 2034 0 72/7 1 681 8042 178 4014 359 42AH 14SH 11 0 4 99 1 4 0 64 40 3 1022 33076 Bluebird 2156 0 84/19 1 762 8044 184 4016 516 44AH 16SH 11 3 5 13 1 6 0 73 36 6 930 33077 Kiwi 2167 0 72/7 1 737 8044 181 4012 377 44AH 12SH 12 3 5 58 0 8 0 36 39 3 997 33078 Thrasher 2312 0 76/19 1 802 8044 188 4014 422 44AH 14SH 12 0 5 44 1 2 0 54 40 3 1022 33080 Joree 2515 0 76/19 1 880 8048 197 4014 453 48AH 14SH 17 1 7 76 1 2 0 54 44 5 1130 Compression Joints—33000 Series for ACSR Conductors (cont.)
