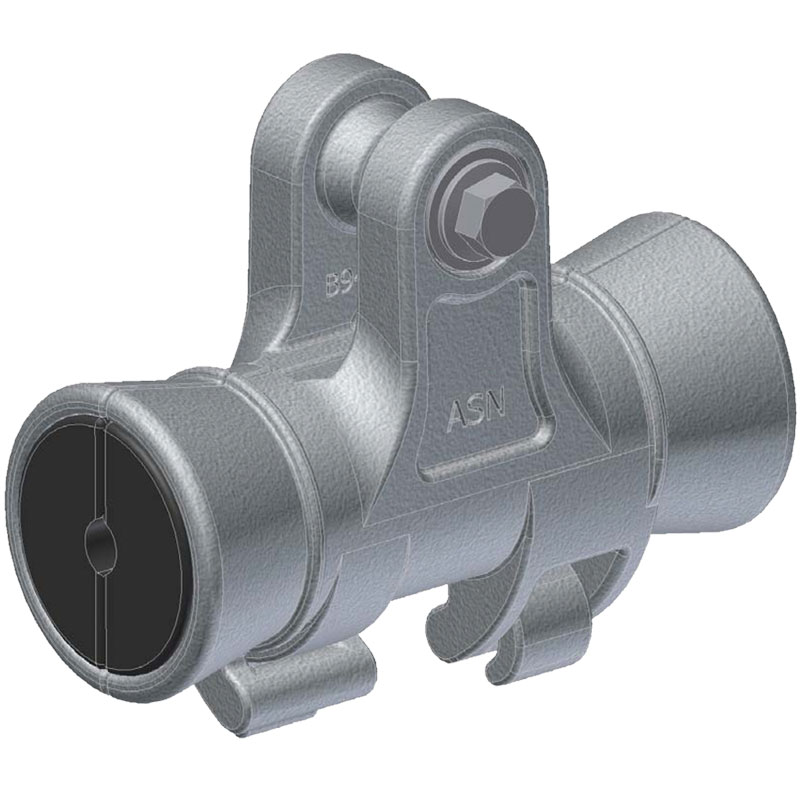

1 AFLglobal.com 1 (800) 235-3423 © 2008, AFL, all rights reserved. PP-3-00004, Revision 6, 6.25.2025 Specifications are subject to change without notice. 1 Fiber Optic Cable Accessories ADSS Suspension Unit AFL’s ADSS suspension unit is used to provide long term performance for spans up to 1200 feet (see span rating below). The interlocking halves of the aluminum body clamp provides positive alignment and utilize our proven EDPM bushings to gently grip the cable. The 3/8" mounting bolt is held captive by an o-ring. This product cannot be used as a stringing device. Specifications Parameter Value Span Length Rating 600 feet (200 meters) NESC Heavy 900 feet (274 meters) NESC Medium 1200 feet (365 meters) NESC Light Vertical Load Rating 5000 lbs Torque Requirement Mounting bolt should be tightened to 25 ft-lb Mounting Hardware 5/8" oval eye nut and anchor shackle (both parts not shown) can be included in the assembly by adding the suffix "AS01" to the part number Line Angle Max line angle is 30 degrees Cable Types Recommended For use on standard polyethylene jackets only DO NOT USE on track resistant cables Slip Strength Contact AFL for specific slip strength requirements EDPM BUSHINGS BELLEVILLE WASHER 3/8" STEEL BOLT Ordering Information AFL No. Cable Range Weight Bushing Color Code inches mm lbs kg ASN325/375 0.325-0.375 8.3-9.5 2.2 1.0 Green + White ASN376/419 0.376-0.419 9.6-10.6 Orange + White ASN420/474 0.420 - 0.474 10.7 - 12.0 Purple + White ASN475/525 0.475 - 0.525 12.1 - 13.3 Blue ASN526/575 0.526 - 0.575 13.4 - 14.6 Orange ASN576/625 0.576 - 0.625 14.6 - 15.9 Brown ASN626/675 0.626 - 0.675 15.9 - 17.1 Green ASN676/725 0.676 - 0.725 17.2 - 18.4 White ASN726/775 0.726 - 0.775 18.4 - 19.7 Red ASN776/825 0.776 - 0.825 19.7 - 21.0 Purple ASN826/875 0.826 - 0.875 21.0 - 22.2 Yellow ASN876/925 0.876 - 0.925 22.3 - 23.5 Pink ASN926/959 0.926 - 0.959 23.5 - 24.4 — ASN960/1045 0.960 - 0.1045 24.4 - 26.5 Gray Application Note: For use with ADSS cables with polyethylene jackets in low voltage environments only. Not for use in high voltage environments where tracking resistant cables are required. C orrect orientation of bushing shown above. * For BABA-compliant part number, add "-BABA" to end of part number. BABA compliant configurations and part numbers indicated where applicable. For complete list of compliant part numbers, see AFL BABA Compliant Equipment List on our website.
