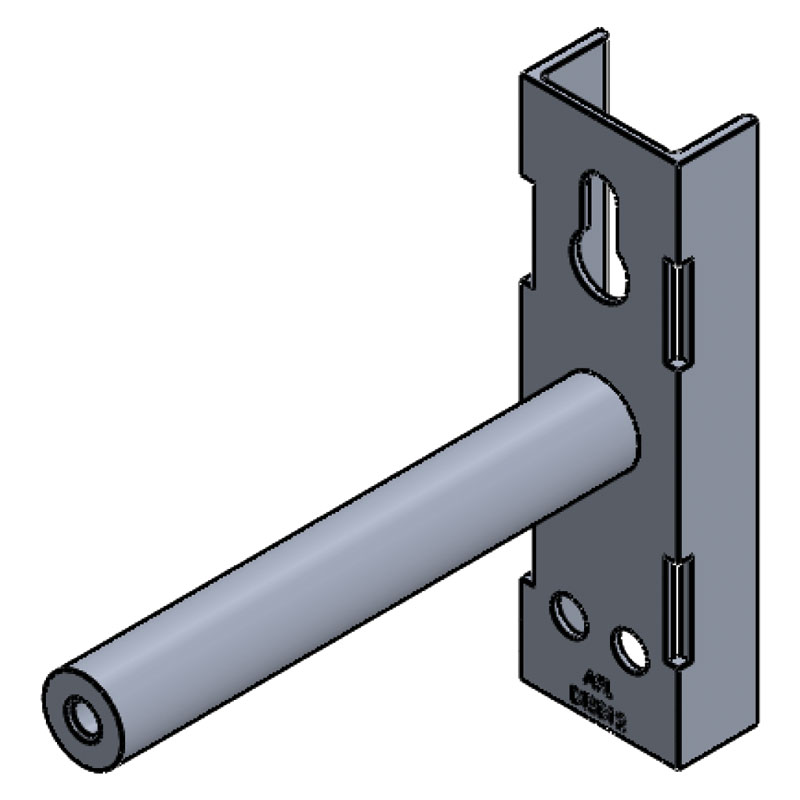

1 Fiber Optic Cable Hardware Fiber Optic Cable Hardware © 2016, AFL, all rights reserved. PP-3-00815, Revision 1, 2.8.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 C L MOUNTING POINT FOR ADSS TRUNNION OR SUSPENSION C L 5/8-11 THD 1.50 11.37 1.75 TYP. BANDING SLOTS Ordering Information AFL NO. DESCRIPTION WEIGHT DTSB12 14" Standoff Bracket for AFL's ATGN Trunnion Clamp or ASN Suspension Clamp for use with ADSS Fiber Optic Cable 2.5 lbs. Standoff Bracket for ADSS Hardware Clamps Features • Aluminum material • Positions the AFL ADSS trunnion or AFL ADSS suspension 14” off of structure • Vertical load rating 1,250 lbs, horizontal load rating 1,250 lbs • Attachment hardware supplied by customer • Recommended hardware: – ATGN trunnion attachment to bracket:  5/8-11 x 1-1/2” long hex head bolt – ASN suspension attachment to bracket:  5/8-11 eyebolt and anchor shackle – Standoff bracket attachment to structure:  5/8 bolt in top attachment hole  1/2 or 5/8 lag screw in bottom hole(s)  1-1/2 or 1-5/8 banding through both top and bottom banding slots Dimensions C L 10.00 A SYM. 5.00 3.00 ∅ 0.68 1.18 ∅ 0.69 ∅ 1.10 DETAIL A
