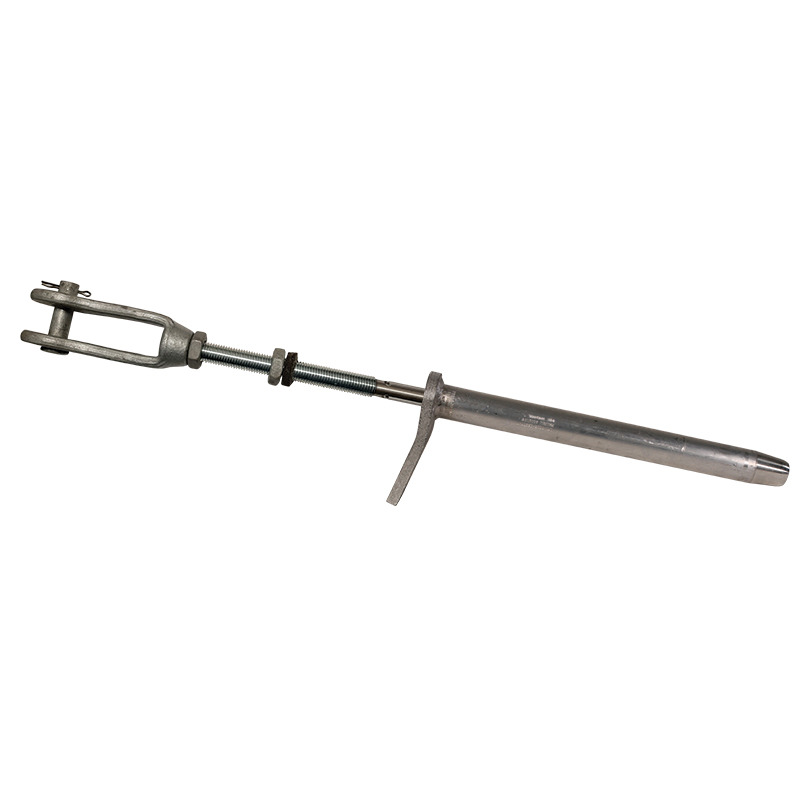

© 2020, AFL, all rights reserved. PP-3-00868, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 1 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Adjustable Clevis, Single Tongue The SDACS-AS Series Dead End Assembly is specifically designed for use on both ACSR and ACSS conductors. The body of the SOLO HD Dead End is fabricated from a specially tempered aluminum that will transfer elevated current and dissipate increased heat more efficiently. The tongue and terminal pad are constructed with a 15º angle, which permits the terminal connector to be bolted in the straight or 30º position. Its innovative design provides a solid, void-free compression through the complete unit with once set of dies, reducing the total quantity of compressions and installation time by almost ½ when compared to the of the ones required by the two die compression systems while keeping the same reliable and proven performance. All Solo HD Dead Ends are designed for full tension use, achieving a minimum of 95% of the ASTM rated strength of the conductor. Each dead end assembly comes with terminal and aluminum hardware. For die sizes 30 AH and above, the end tapers of the compression portions of all compression accessories are supplied with a high voltage finish. Corona bolts are furnished as standard on 15º terminals for these die sizes. The square edges of the bolted pads of the compression accessories could cause Corona. Pads with edges and corners rounded can be supplied by adding the catalog suffix “EHV”. continued continued Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE ANSI C119.4 Benefits • Half the Installation Time Using an innovative core gripping system that allows a single die to compress the outer aluminum barrel to grip both the steel core as well as the aluminum strands, utilizing the same Aluminum Hex (AH) die set. • No Filler Compount Required By creating a practically void-free compression, eliminating ingress of water, and using steels that eliminate the exposure of raw steel after, thereby eliminating rust and corrosion, AFL has removed variability of the amount of compound being placed in each connector. • Joints Travel Over Sheaves Enhancing speed of installation, full tension joints can travel through sheaves without impact to the performance of the connector, allowing for more conductor to be strung from a single location. • Same Install Method With no new tools required, installation crews do not require training on new compression tools. • One Connector Assembly can be used for both ACSS and ACSR type conductors, eliminating the need for multiple part numbers. • Same Compression Die Set The Aluminum Hex (AH) die size remains the same as that of the standard AFL two-die system used today and eliminates the need for the Steel Hex (SH) dies altogether. • Same Compression Tools By using the same compression pumps and presses, AFL does not require the need for a large investment in both the tools and training. © 2020, AFL, all rights reserved. PP-3-00868, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 2 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Adjustable Clevis, Single Tongue ASSEMBLY CATALOG NO. CONDUCTORS ALUMINUM HEX DIES CODE NAME SIZE KCMIL STRAND DIAMETER AL ST SDACS-AS109HT WOODCOCK 336.4 22 7 0.701 20AH SDACS-AS113HT LINNET 336.4 26 7 0.720 20AH SDACS-AS114HT ORIOLE 336.4 30 7 0.741 20AH SDACS-AS185HT CHICKADEE 397.5 18 1 0.743 20AH SDACS-AS115HT PTARMIGAN 397.5 20 7 0.752 20AH SDACS-AS116HT BRANT 397.5 24 7 0.772 20AH SDACS-AS117HT IBIS 397.5 26 7 0.783 20AH SDACS-AS118HT LARK 397.5 30 7 0.806 20AH SDACS-AS186HT PELICAN 477.0 18 1 0.814 24AH SDACS-AS119HT TAILORBIRD 477.0 20 7 0.823 20AH SDACS-AS120HT FLICKER 477.0 24 7 0.846 24AH SDACS-AS121HT HAWK 477.0 26 7 0.858 24AH SDACS-AS122HT HEN 477.0 30 7 0.883 24AH SDACS-AS187HT OSPREY 556.5 18 1 0.879 24AH SDACS-AS123HT SAPSUCKER 556.5 22 7 0.901 24AH SDACS-AS124HT PARAKEET 556.5 24 7 0.914 24AH SDACS-AS125HT DOVE 556 5 26 7 0.927 27AH SDACS-AS126HT EAGLE 556.5 30 7 0.953 27AH SDACS-AS127HT PEACOCK 605.0 24 7 0.953 27AH SDACS-AS128HT SQUAB 605.0 26 7 0.966 27AH SDACS-AS130HT WOOD/DUCK 605.0 30 7 0.994 27AH SDACS-AS129HT TEAL 605.0 30 19 0.994 27AH SDACS-AS188HT SWIFT 636.0 36 1 0.930 27AH SDACS-AS189HT KINGBIRD 636.0 18 1 0.940 27AH SDACS-AS131HT GOLDFINCH 636.0 22 7 0.963 27AH SDACS-AS132HT ROOK 636.0 24 7 0.977 27AH SDACS-AS133HT GROSBEAK 636.0 26 7 0.990 27AH SDACS-AS182HT SCOTER 636.0 30 7 1.019 27AH SDACS-AS134HT EGRET 636.0 30 19 1.019 27AH continued Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used. Step 2: Terminal Connector For an assembly without a terminal connector, use “NT”. For an assembly with a terminal connector, leave blank. Step 3: Extra High Voltage Finish For Extra High Voltage Finish, use “EHV”. (> 345 kV) For Standard Finish, leave blank. (< 345 kV) For bolt, nut and cotter pin add BNC at the END Assembly Catalog No. Terminal Connector EHV Finish Ordering Information Step 4: Assemble Catalog Number EXAMPLE: For 795 Drake ACSS Conductor with no terminal and EHV finish, the complete catalog number is: SDACS-AS142HTNTEHV Notes – For instructions, see Solo HD ACSR/ACSS/ACSS-TW Adjustable Clevis Dead End installation instructions INS-ACA125 © 2020, AFL, all rights reserved. PP-3-00868, Revision 1, 4.9.2024 Specifications are subject to change without notice. AFLglobal.com | 800.866.7385 3 Solo HD ® Compression Solo HD ACSR & ACSS Solo HD ® Compression Dead End for ACSR and ACSS Conductor, Adjustable Clevis, Single Tongue ASSEMBLY CATALOG NO. CONDUCTORS ALUMINUM HEX DIES CODE NAME SIZE KCMIL STRAND DIAMETER AL ST SDACS-AS135HT FLAMINGO 666.6 24 7 1.000 27AH SDACS-AS183HT GANNET 666.6 26 7 1.014 27AH SDACS-AS136HT STILT 715.5 24 7 1.036 30AH SDACS-AS137HT STARLING 715.5 26 7 1.051 30AH SDACS-AS138HT REDWING 715.5 30 19 1.081 30AH SDACS-AS190HT COOT 795.0 36 1 1.040 30AH SDACS-AS141HT CUCKOO 795.0 24 7 1.092 30AH SDACS-AS142HT DRAKE 795.0 26 7 1.108 30AH SDACS-AS144HT MACAW 795.0 42 7 1.055 30AH SDACS-AS140HT TERN 795.0 45 7 1.063 30AH SDACS-AS141HT CONDOR 795.0 54 7 1.092 30AH SDACS-AS143HT MALLARD 795.0 30 19 1.140 30AH SDACS-AS145HT RUDDY 900.0 45 7 1.131 30AH SDACS-AS146HT CANARY 900.0 54 7 1.162 30AH SDACS-AS191HT CATBIRD 954.0 36 1 1.140 30AH SDACS-AS147HT CORNCRAKE 954.0 20 7 1.165 30AH SDACS-AS184HT REDBIRD 954.0 24 7 1.196 30AH SDACS-AS148HT RAIL 954.0 45 7 1.165 30AH SDACS-AS149HT TOWHEE 954.0 48 7 1.175 30AH SDACS-AS150HT CARDINAL 954.0 54 7 1.196 30AH SDACS-AS151HT CANVASBACK 954.0 30 19 1.248 34AH SDACS-AS192HT TANAGER 1033.5 36 1 1.186 30AH SDACS-AS153HT SNOWBIRD 1033.5 42 7 1.203 34AH SDACS-AS152HT ORTOLAN 1033.5 45 7 1.212 34AH SDACS-AS154HT CURLEW 1033.5 54 7 1.245 34AH SDACS-AS155HT BLUEJAY 1113.0 45 7 1.259 34AH SDACS-AS157HT FINCH 1113.0 54 19 1.293 34AH SDACS-AS158HT BUNTING 1192.5 45 7 1.302 34AH SDACS-AS159HT GRACKLE 1192.5 54 19 1.338 36AH SDACS-AS161HT BITTERN 1272.0 45 7 1.345 36AH SDACS-AS162HT DIVER 1272.0 48 7 1.357 36AH SDACS-AS163HT PHEASANT 1272.0 54 19 1.382 36AH SDACS-AS164HT DIPPER 1351.5 45 7 1.386 36AH SDACS-AS166HT MARTIN 1351.5 54 19 1.424 38AH SDACS-AS167HT BOBOLINK 1431.0 45 7 1.427 38AH SDACS-AS169HT PLOVER 1431.0 54 19 1.465 38AH SDACS-AS170HT NUTHATCH 1510.0 45 7 1.466 38AH SDACS-AS172HT PARROT 1510.0 54 19 1.505 40AH SDACS-AS171HT RATITE 1590.0 42 7 1.492 40AH SDACS-AS173HT LAPWING 1590.0 45 7 1.504 40AH SDACS-AS174HT FALCON 1590.0 54 19 1.544 40AH SDACS-AS175HT CHUKAR 1780.0 84 19 1.602 42AH SDACS-AS176HT MOCKINGBIRD 2034.5 72 7 1.681 42AH SDACS-AS177HT ROADRUNNER 2057.0 76 19 1.700 42AH SDACS-AS178HT BLUEBIRD 2156.0 84 19 1.762 44AH SDACS-AS179HT KIWI 2167.0 72 7 1.735 44AH SDACS-AS180HT THRASHER 2312.0 76 19 1.802 44AH SDACS-AS181HT JOREE 2515.0 76 19 1.880 48AH
