Straight Adapter Tube to Cable Adapter is designed to make inline connection between pipe and stranded cable. Cable is “puddle” welded to connector and connector is then welded to tube. Not recommended for use on ACSR conductors due to difficulty welding steel core.
3973c3309c1c4f8fb011f100d22695ce
Features:
- Aluminum alloy
- External bus pipe fit for SCH 40 and SCH 80 bus pipe
- Meets NEMA CC1 standards
Applications:
- Rated for 230 kV
- Substation
- Aluminum bus pipe to aluminum cable

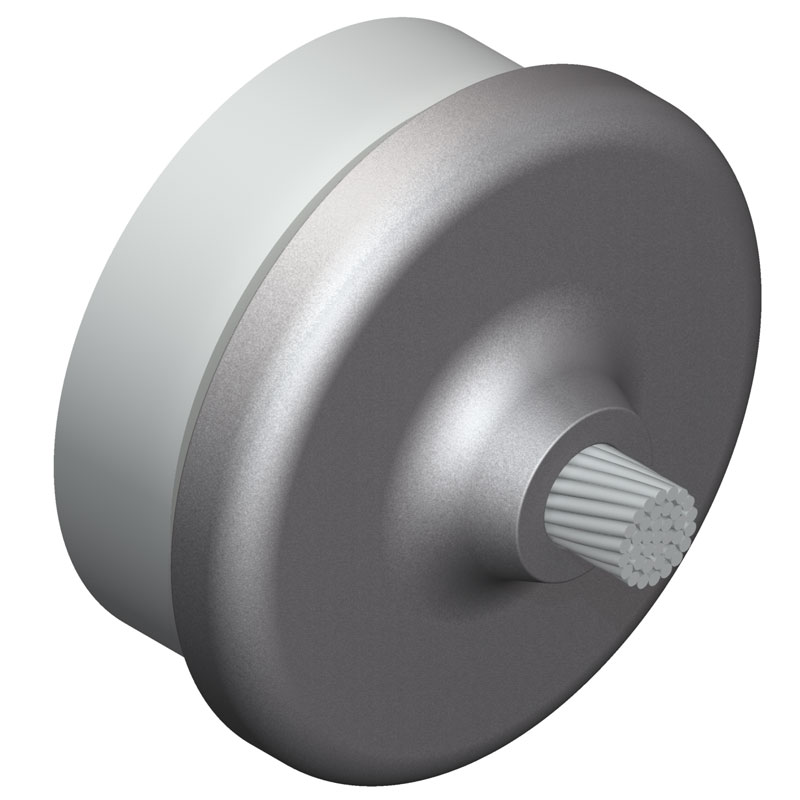

Straight Adapter Tube to Cable
Adapter is designed to make inline connection between pipe and stranded cable. Cable is
“puddle” welded to connector and connector is then welded to tube. Not recommended for
use on ACSR conductors due to difficulty welding steel core.
