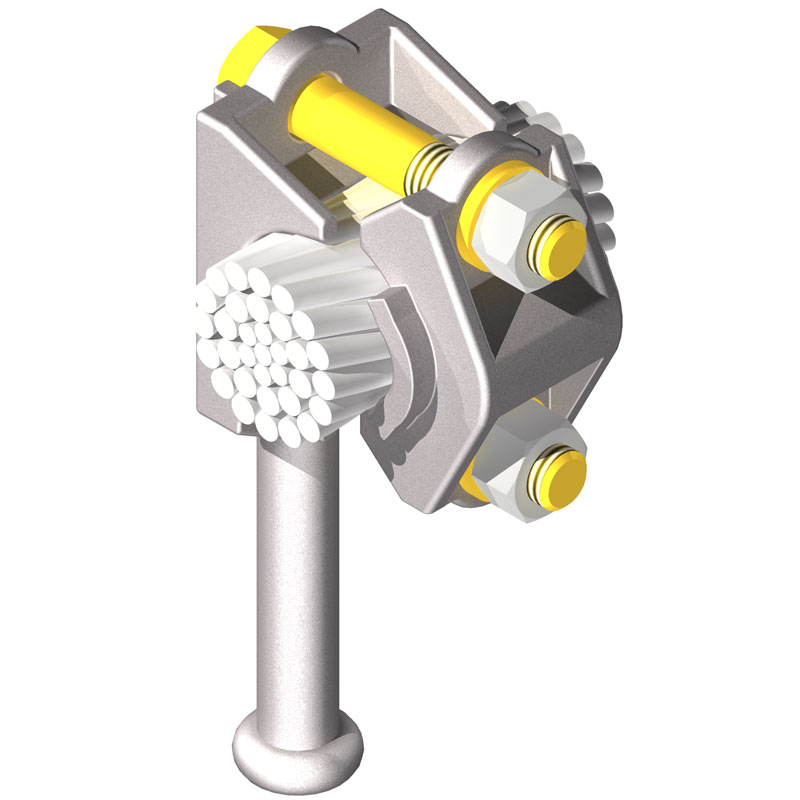

230 kV Aluminum Bolted Grounding Stud

Designed to de-energize cable for maintenance.

ab1cb471c90847f3b11358cd68bb682e

306 230 kV Aluminum Bolted Ground Clamps © 2011, AFL, all rights reserved. PP-3-00339. Revision 0, 1.19.11 Specifications are subject to change without notice. 230 kV Aluminum Bolted Ground Clamps www.AFLglobal.com or 800-890-8878 TYPE GCHV-AA Cable Grounding Clamp Ordering Information CATALOG NUMBER CABLE RANGE DIMENSIONS MIN MAX A B L W GCHV-40-62R-AA 1/0 STR 400 MCM 4 11/16 1 1/2 5 13/16 2 1/4 GCHV-159A-62R-AA 477 MCM 1590 ACSR 5 1/8 2 6 3/4 3 1/4 GCHV-287A-62R-AA 1780 ACSR 2870 ACSR 5 3/8 2 7 1/4 3 3/4 Designed to de-energize cable for maintenance. Material Aluminum Alloy Hardware Yellow anodized aluminum bolts, nuts, and lockwashers. B A L 3 5/8 1/2 W www.AFLglobal.com or 800-890-8878 307 230 kV Aluminum Bolted Ground Clamps © 2011, AFL, all rights reserved. PP-3-00354, Revision 4, 11.29.18 Specifications are subject to change without notice. 230 kV Aluminum Bolted Ground Clamps TYPE GPH-AA Ground Clamp Designed to de-energize bus tube for maintenance. Stud is designed with tee shape for use on different bus sizes. Material Aluminum Alloy Hardware Aluminum bolts, nuts, and lockwashers. Ordering Information CATALOG NO. FIGURE NO. SPS DIMENSIONS BOLT SIZE A L T W GPH150-AA 1 1 1/2 2 6 9/16 1 1/4 3 11/16 1/2 GPH200-AA 1 2 2 7 1/4 1 1/4 4 5/16 1/2 GPH250-AA 1 2 1/2 2 7 9/16 1 1/4 4 3/4 1/2 GPH300-AA 1 3 2 8 1/4 1 1/4 5 3/8 1/2 GPH350-AA 1 3 1/2 2 8 15/16 1 1/4 5 7/8 1/2 GPH400-AA 1 4 2 9 1/4 1 1/4 6 3/8 1/2 GPH500-AA 2 5 3 3/4 13 3/4 3/4 7 11/16 5/8 GPH600-AA 2 6 4 14 11/16 3/4 8 3/4 5/8 FIGURE 1 A W ∅ T L A W ∅ T L FIGURE 2 308 230 kV Aluminum Bolted Ground Clamps © 2011, AFL, all rights reserved. PP-3-00355, Revision 2, 10.23.17 Specifications are subject to change without notice. 230 kV Aluminum Bolted Ground Clamps www.AFLglobal.com or 800-890-8878 TYPE GPH-N-AA Terminal pad to grounding stud. Ordering Information CATALOG NUMBER FIGURE NUMBER DIMENSIONS D L T X Y GPH-2N-AA 1 1 1/4 8 5/8 1/2 — — GPH-4N-AA 2 1 3/4 9 1/8 3/4 3 5/8 GPH-4N4-AA 2 1 3/4 10 1/8 3/4 4 1 1/8 Material Aluminum Alloy Note Other pad configurations can be ordered by contacting Customer Service. L T D ∅ 9/16 FIG. 1 FIG. 2 1 3/4 3/4 1 1/2 3 5/8 X X 1 3/4 1 3/4 Y ∅ 9/16

Features:

Aluminum alloy
Anodized aluminum hardware
5/8 inch diameter stud

Applications:

Rated for 230 kV
Substation
Aluminum conductors

Designed to de-energize cable for maintenance.
