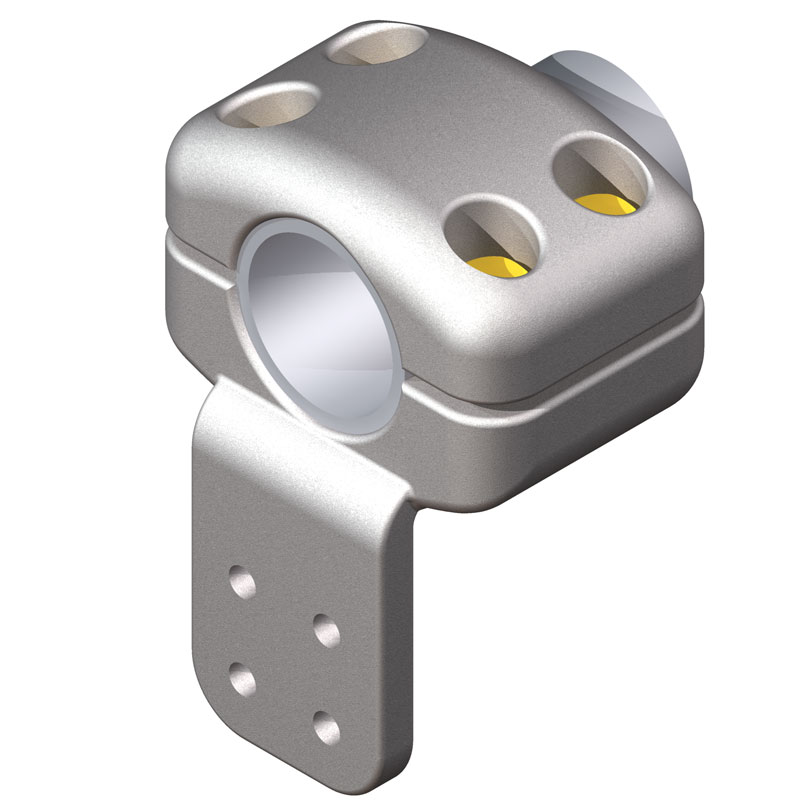

1 345/500 kV Terminal Connectors © 2011, AFL, all rights reserved. PP-3-00479, Revision 4, 9.20.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 345/500 kV Terminal Connectors TYPE TP-N-V-AA, TPA-N-90-V-AA Bolted Terminal to Pipe Rated for 500 kV Bolted terminal for installation to pipe. TP-N-V-AA Material Aluminum Alloy Hardware Yellow anodized aluminum nuts, bolts, and lockwashers. Notes For a 3" pipe with a 4" terminal pad, at 90°, high voltage, use TPA300-4N4-90-V-AA. TPA-N-90-V-AA TP-N-V-AA TPA-N-90-V-AA T ∅ 9 / 16 S 4 A 1 3 / 4 1 1 / 8 4 L B CUSTOMER PIPE 1 3 / 4 Fig. 1 Fig. 2 1 1 / 8 6 1 3 / 4 1 3 / 4 4 1 3 / 4 ∅ 9 / 16 © 2011, AFL, all rights reserved. PP-3-00479, Revision 4, 9.20.2023 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 2 345/500 kV Terminal Connectors 345/500 kV Terminal Connectors Ordering Information CATALOG NUMBER SPS FIG. NO. DIMENSIONS IN INCHES STANDARD 90 DEG A B L S T TP250-4N4-V-AA TPA250-4N4-90-V-AA 2 1/2 1 5 3/4 4 1/2 9 1/2 3/4 TP300-4N4-V-AA TPA300-4N4-90-V-AA 3 1 7 3/8 5 9 1/2 5/8 3/4 TP350-4N4-V-AA TPA350-4N4-90-V-AA 3 1/2 1 7 7/8 5 9 1/2 5/8 7/8 TP400-4N4-V-AA TPA400-4N4-90-V-AA 4 1 8 3/8 5 10 1/2 5/8 7/8 TP400-6N4-V-AA TPA400-6N4-90-V-AA 4 2 8 3/8 5 10 1/2 5/8 7/8 TP500-4N4-V-AA TPA500-4N4-90-V-AA 5 1 10 1/4 5 3/4 10 1/8 5/8 1 1/4 TP500-6N4-V-AA TPA500-6N4-90-V-AA 5 2 9 9/16 6 1/4 10 5/8 5/8 1 1/8 TP600-4N4-V-AA TPA600-4N4-90-V-AA 6 1 10 3/8 5 9 1/4 5/8 1 1/8 TP600-6N4-V-AA TPA600-6N4-90-V-AA 6 2 10 5/8 6 1/4 10 1/2 5/8 1 1/4 TP800R-4N4-V-AA TPA800R-4N4-90-V-AA 8 OD 1 11 1/4 6 10 1/2 5/8 1 1/2 TP800-4N4-V-AA TP800-4N4-90-V-AA 8 1 11 6 10 1/2 5/8 1 1/2 TYPE TP-N-V-AA, TPA-N-90-V-AA Bolted Terminal to Pipe Rated for 500 kV
