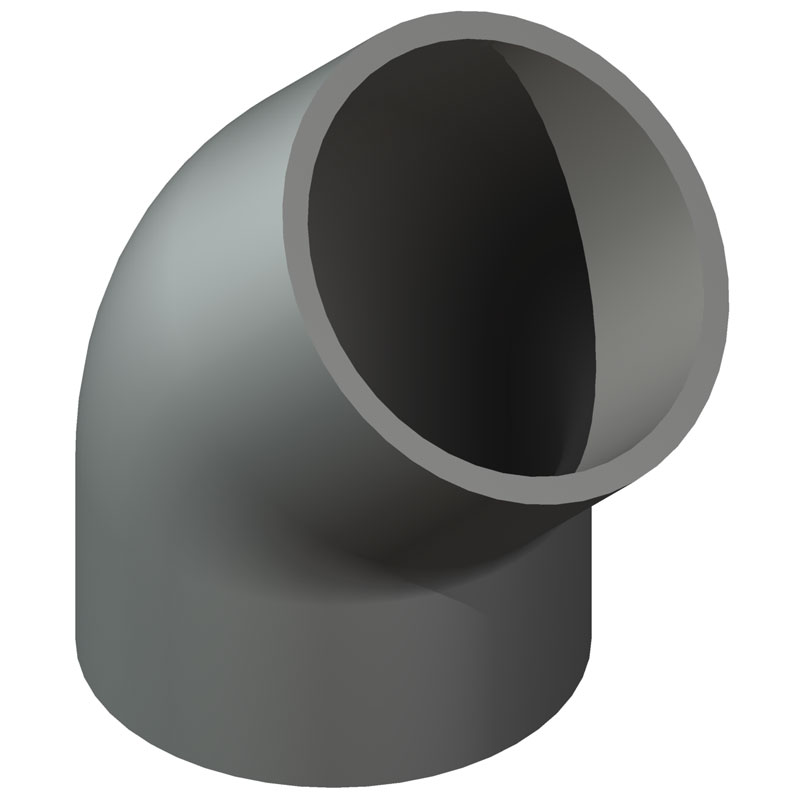

Welded elbows offer economical method for field fabrication where angular turns are required. Designed for 500 kV service.
d9129f85ff21470796d9cab7fa2ee741
538 © 2011, AFL, all rights reserved. PP-3-00194, Revision 0, 3.4.11 Specifications are subject to change without notice. 345/500 kV Elbows www.AFLglobal.com or 800-890-8878 345/500 kV Elbows TYPE 35400, 35500 WeldElbows are designed to be corona free for 345 kV and 500 kV service. Elbow is designed to be welded on outside of pipe allowing use on both schedule 40 and schedule 80 pipe. Socket design allows for slight inaccuracies in field cut length of pipe. Ordering Information CATALOG NUMBER CONDUCTOR SIZE SPS/EPHS DIMENSIONS IN INCHES NOMINAL WEIGHT LBS 45 DEG 90 DEG A B C 45 DEG 90 DEG 35408EHV 35508EHV 3 4.16 1.75 2.75 1.8 2.4 35409EHV 35509EHV 3 1/2 4.72 2.00 3.12 2.6 3.6 35410EHV 35510EHV 4 5.28 2.25 3.50 3.6 4.8 35412EHV 35512EHV 5 6.44 2.75 4.28 5.8 7.8 35413EHV 35513EHV 6 7.59 3.25 5.05 9.4 12.8 35400 Material Aluminum Alloy 35500 B C A C B B A B
Features:
- Aluminum alloy
- Avalible with different angles
Applications:
- Rated for 500 kV
- Substation
- Aluminum bus pipe
Welded elbows offer economical method for field fabrication where angular turns are required. Designed for 500 kV service.
