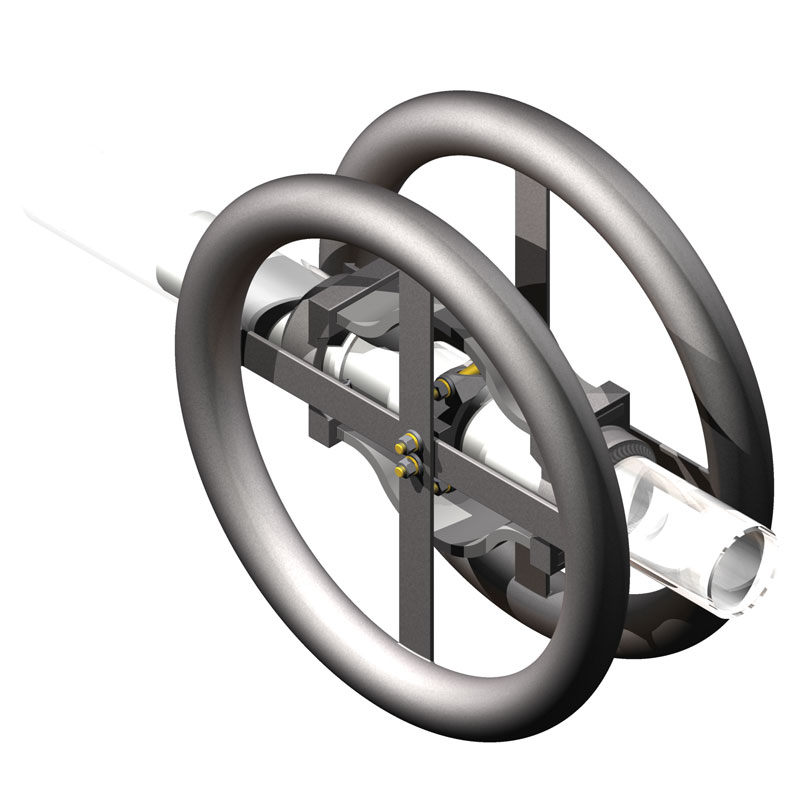

www.AFLglobal.com or 800-890-8878 474 345/500 kV Couplers © 2011, AFL, all rights reserved. Revision 0, 3.3.11 Specifications are subject to change without notice. 345/500 kV Couplers Expansion coupler is designed to be corona free for 500 kV service. Rope lay expansion provides for 2.6" of expansion or contraction. TYPE 35300 EHV Welded Expansion Coupler (Tube) Ordering Information CATALOG NUMBER CONDUCTOR SIZE DIMENSIONS IN INCHES NOMINAL WEIGHT LBS SPS & EPHS A B C D 35308 EHV 3 SPS 21.38 15.38 6.56 3.25 30.3 35328 EHV 3 EHPS 21.38 15.38 6.56 3.25 31.1 35309 EHV 3 1/2 SPS 21.38 15.38 6.81 3.25 29.3 35329 EHV 3 1/2 EHPS 21.38 15.38 6.81 3.25 30.6 35310 EHV 4 SPS 21.38 15.38 7.25 3.25 30.0 35330 EHV 4 EHPS 21.38 15.38 7.25 3.25 32.0 35312 EHV 5 SPS 22.00 15.00 8.00 3.25 35.3 35332 EHV 5 EHPS 22.00 15.00 8.00 3.25 38.7 35313 EHV 6 SPS 24.25 17.25 8.88 3.25 45.0 35333 EHV 6 EHPS 24.25 17.25 8.88 3.25 49.4 Material Aluminum Alloy B A C D 0.12 IN. CUSTOMER PIPE www.AFLglobal.com or 800-890-8878 472 345/500 kV Couplers © 2011, AFL, all rights reserved. Revision 0, 3.3.11 Specifications are subject to change without notice. 345/500 kV Couplers Expansion coupler for aluminum pipe connections. Part is designed to be corona free from 345 kV to 500 kV. Provided with alignment guide for field weld. TYPE XWWCT-HV-AA Expansion Coupler Ordering Information CATALOG NUMBER SPS / EPHS DIMENSIONS IN INCHES SCHEDULE 40 SCHEDULE 80 D F L XWWCT200-HV-AA XWWCT200E-HV-AA 2 10 1/4 6 17 3/8 XWWCT250-HV-AA XWWCT250E-HV-AA 2 1/2 10 1/4 6 17 1/2 XWWCT300-HV-AA XWWCT300E-HV-AA 3 11 1/4 6 17 1/2 XWWCT350-HV-AA XWWCT350E-HV-AA 3 1/2 11 1/4 6 17 1/2 XWWCT400-HV-AA XWWCT400E-HV-AA 4 12 1/8 7 18 XWWCT500-HV-AA XWWCT500E-HV-AA 5 13 1/8 7 18 XWWCT600-HV-AA XWWCT600E-HV-AA 6 14 1/4 7 18 XWWCT800-HV-AA XWWCT800E-HV-AA 8 18 7 18 Material Aluminum Alloy Hardware Aluminum bolts, nuts, and lockwashers. D F PIN CUSTOMER PIPE L 471 345/500 kV Couplers © 2011, AFL, all rights reserved. Revision 0, 3.3.11 Specifications are subject to change without notice. 345/500 kV Couplers www.AFLglobal.com or 800-890-8878 Expansion coupler for aluminum pipe connections. Provided with alignment guide for field weld. TYPE XWWC-V-AA, XWWC-HV-AA Expansion Coupler Ordering Information CATALOG NUMBER SPS / EPHS DIMENSIONS IN INCHES 345 kV 500 kV SCHEDULE 40 SCHEDULE 80 SCHEDULE 40 SCHEDULE 80 F XWWC250-V-AA XWWC250E-V-AA XWWC250-HV-AA XWWC250E-HV-AA 2 1/2 10 1/4 XWWC300-V-AA XWWC300E-V-AA XWWC300-HV-AA XWWC300E-HV-AA 3 11 1/4 XWWC400-V-AA XWWC400E-V-AA XWWC400-HV-AA XWWC400E-HV-AA 4 12 1/8 XWWC500-V-AA XWWC500E-V-AA XWWC500-HV-AA XWWC500E-HV-AA 5 13 1/8 XWWC600-V-AA XWWC600E-V-AA XWWC600-HV-AA XWWC600E-HV-AA 6 14 1/4 XWWC800-V-AA XWWC800E-V-AA XWWC800-HV-AA XWWC800E-HV-AA 8 15 1/4 Material Aluminum Alloy Hardware Aluminum bolts, nuts, and lockwashers. F 29 1/4 DIA. CORONA RING 27 1/4 DIA. CORONA RING 12 1/8 12 1/8 16 1/4 16 1/4 XWWC-V-AA 345 k V XWWC-HV-AA 500 k V F CUSTOMER PIPE
