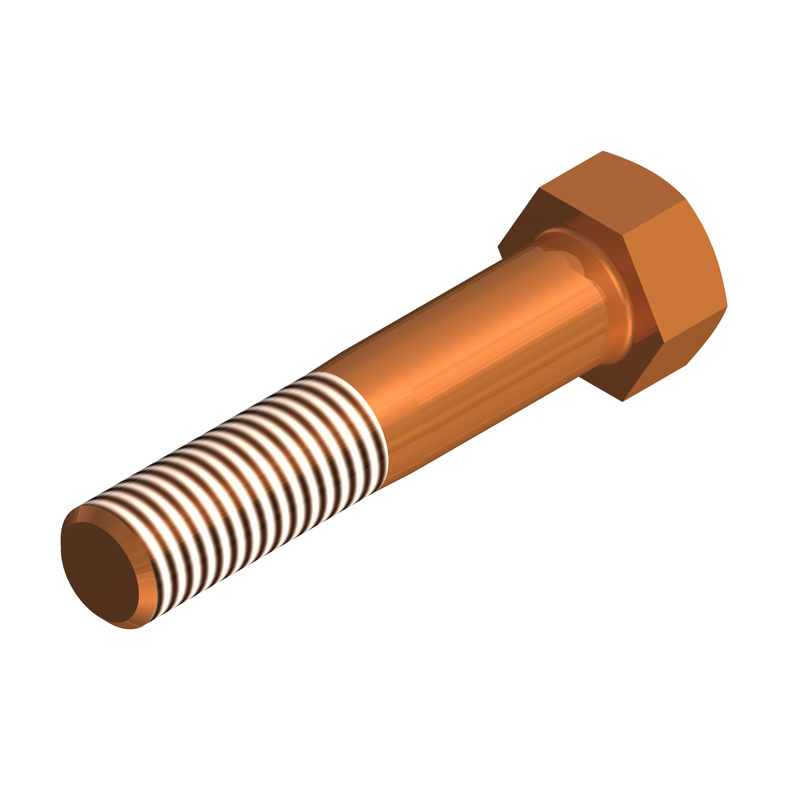

131 Bronze Grounding Connectors and Everdur Hardware Bronze Grounding Connectors and Everdur Hardware www.AFLglobal.com or 800-890-8878 © 2011, AFL, all rights reserved. 3.3.11 Specifications are subject to change without notice. Dossert Everdur Machine bolts are cold headed and roll threaded They exhibit tensile strengths equal to or greater than mild steels. Their high resistance to corrosion and non- magnetic properties make them extremely useful in electrical work. TYPE EB Everdur Bolts Ordering Information BOLT DIAMETER AND THREADS PER INCH L IN INCHES 1/4 - 20 5/16 - 18 3/8 - 16 1/2 - 13 5/8 - 11 3/4 - 10 1/2 EB2550 EB3150 EB3750 EB5050 – – 5/8 EB2562 EB3162 EB3762 EB5062 – – 3/4 EB2575 EB3175 EB3775 EB5075 – – 7/8 EB2587 EB3187 EB3787 EB5087 – – 1 EB25100 EB31100 EB37100 EB50100 EB62100 – 1 1/4 EB25125 EB31125 EB37125 EB50125 EB62125 EB75125 1 1/2 EB25150 EB31150 EB37150 EB50150 EB62150 EB75150 1 3/4 EB25175 EB31175 EB37175 EB50175 EB62175 EB75175 2 EB25200 EB31200 EB37200 EB50200 EB62200 EB75200 2 1/4 EB25225 EB31225 EB37225 EB50225 EB62225 EB75225 2 1/2 EB25250 EB31250 EB37250 EB50250 EB62250 EB75250 2 3/4 EB25275 EB31275 EB37275 EB50275 EB62275 EB75275 3 EB25300 EB31300 EB37300 EB50300 EB62300 EB75300 3 1/4 EB25325 EB31325 EB37325 EB50325 EB62325 EB75325 3 1/2 EB25350 EB31350 EB37350 EB50350 EB62350 EB75350 4 EB25400 EB31400 EB37400 EB50400 EB62400 EB75400 4 1/2 – EB31450 EB37450 EB50450 EB62450 EB75450 5 – – EB37500 EB50500 EB62500 EB75500 5 1/2 – – EB37550 EB50550 EB62550 EB75550 6 – – EB37600 EB50600 EB62600 EB75600 W 3/8 1/2 9/16 3/4 15/16 1 1/8 T 5/32 3/16 15/64 19/64 25/64 15/32 T L W www.AFLglobal.com or 800-890-8878 132 Bronze Grounding Connectors and Everdur Hardware Bronze Grounding Connectors and Everdur Hardware © 2011, AFL, all rights reserved. 3.3.11 Specifications are subject to change without notice. Dossert Everdur nuts, EN, are made to the American Standard National course thread Class 2 Semifinished, cold punched. Dossert Everdur spring type lockwasher, ELW, is a tough and durable unit which prevents the loosening of the nut under severe conditions of vibration. Dossert Everdur flat washers, EW, are stamped from cold drawn Everdur sheet and are tumbled to a smooth finish with rounded edges. Dossert Everdur internal lock washer EILW. TYPE EN, EW, ELW, EILW Everdur Nuts, Spring Washer, and Flat Washer Material Everdur EN EW ELW EILW EN EILW ELW EW TYPE EW CATALOG NUMBER BOLT SIZE THICKNESS EW25 1/4 1/16 EW31 5/16 1/16 EW37 3/8 3/32 EW50 1/2 1/8 EW62 5/8 5/32 EW75 3/ 4 3/16 TYPE EILW CATALOG NUMBER BOLT SIZE THICKNESS MAJOR DIAMETER EILW25 1/4 .040 11/16 EILW31 5/16 .064 7/8 EILW37 3/8 .064 1 EILW50 1/2 .091 1 1/4 EILW62 5/8 .091 1 1/2 EILW75 3/ 4 .102 1 7/8 Ordering Information TYPE EN CATALOG NUMBER DIAMETER OF THREADS THREADS PER INCH WIDTH ACROSS FLATS THICKNESS EN25 1/2 20 7/`6 13/64 EN31 5/16 18 9/16 1/4 EN37 3/8 16 5/8 5/16 EN50 1/2 13 13/16 27/64 EN62 5/8 11 1 17/32 EILW75 3/ 4 .102 1 7/8 TYPE ELW CATALOG NUMBER BOLT SIZE ELW25 1/4 ELW31 5/16 ELW37 3/8 ELW50 1/2 ELW62 5/8 ELW75 3/ 4
