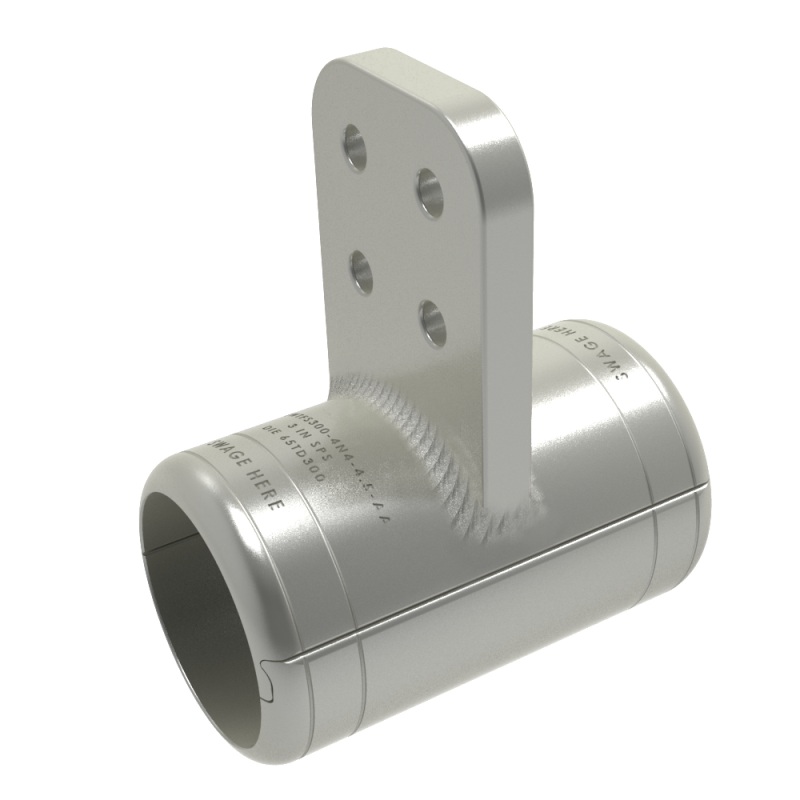

Swage Aluminum Bus Terminal Taps are designed to connect to a bus pipe and carry the full current of the bus pipe using Swage Technology. Terminal Tap pads conform to NEMA standards. These accessories vary from 230-500kV. SWTC-AA, SW2TC-AA, SWTCS-AA, SW2TCS-AA, SWTF-AA, SW2TF-AA, SWTFS-AA, SW2TFS-AA
1bcc2ec2c7d1476d92fd17b2fc5258bc
77 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00655, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTC-AA Swage Bus to NEMA Pad A Swage type bus tap with a NEMA pad. Pad Detail 1 A B Pad Detail 2 F C D E 1.75 C D E 1.75 1.75 ∅ 0.56 ∅ 0.56 —Machine Finish C L C L C L ∅ 0.56 Pad Detail 3 C D E 1.75 1.75
© 2013, AFL, all rights reserved. PP-3-00655, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 78 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SWTC-AA Swage Bus to NEMA Pad Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V)* A F 2N 4N 4N4 5N4 6N4 SWTC100-YY-ZZ-AA 1 6.00 10.00 10.00 10.00 12.00 0.38 65TD100 230 SWTC150-YY-ZZ-AA 1.5 6.00 10.00 10.00 10.00 12.00 0.50 65TD150 230 SWTC200-YY-ZZ-AA 2 6.00 10.00 10.00 10.00 12.00 0.50 65TD200 230 SWTC250-YY-ZZ-AA 2.5 6.00 10.00 10.00 10.00 12.00 0.63 65TD250 230 SWTC300-YY-ZZ-AA 3 7.25 12.00 12.00 12.00 12.00 0.75 65TD300 SEE TABLE 2 SWTC350-YY-ZZ-AA 3.5 8.25 12.00 12.00 12.00 12.00 0.75 65TD350 SEE TABLE 2 SWTC400-YY-ZZ-AA 4 9.25 12.00 12.00 12.00 12.00 0.75 65TD400 SEE TABLE 2 SWTC400-YY-T1-ZZ-AA 4 9.25 12.00 12.00 12.00 12.00 1.00 65TD400 SEE TABLE 2 SWTC500-YY-ZZ-AA 5 — — 17.00 17.00 17.00 1.00 85TD500 SEE TABLE 2 SWTC600-YY-ZZ-AA 6 — — 19.00 19.00 19.00 1.00 115TD600 SEE TABLE 2 TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES VOLTAGE RATING ( k V)* C D E SWTCXXX-2N-ZZ-AA 1 2.00 1.00 0.63 230 SWTCXXX-4N-ZZ-AA 2 3.00 0.63 0.63 500 SWTCXXX-4N4-ZZ-AA 2 4.00 1.13 1.13 500 SWTCXXX-5N4-ZZ-AA 3 5.00 0.75 1.13 500 SWTCXXX-6N4-ZZ-AA 3 6.00 1.25 1.13 500 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SWTCXXX-YY-4.5-AA 4.50 SWTCXXX-YY-5.5-AA 5.50 SWTCXXX-YY-7-AA 7.00 SWTCXXX-YY-8-AA 8.00 * Pipe size 2.5 S.P.S. and smaller are rated for 230 kV. Pipe size 3 S.P.S. and larger, voltage rating is determined by pad size. Pad Length See Table 3 ZZ AFL No. Designation SWTC Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
79 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00626, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SW2TC-AA Swage Bus to Two NEMA Pads A Swage type bus with two NEMA pads. A ∅ 0.56 C B SYM. D D E 1.75 1.75 —Machine Finish
© 2013, AFL, all rights reserved. PP-3-00626, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 80 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SW2TC-AA Swage Bus to Two NEMA Pads Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A E SW2TC100-YY-ZZ-AA 1 10.00 0.38 65TD100 230 SW2TC150-YY-ZZ-AA 1.5 10.00 0.50 65TD150 230 SW2TC200-YY-ZZ-AA 2 10.00 0.50 65TD200 230 SW2TC250-YY-ZZ-AA 2.5 10.00 0.63 65TD250 230 SW2TC300-YY-ZZ-AA 3 12.00 0.75 65TD300 500 SW2TC500-YY-ZZ-AA 3.5 12.00 0.75 65TD500 500 SW2TC400-YY-ZZ-AA 4 12.00 0.75 65TD400 500 SW2TC500-YY-ZZ-AA 5 17.00 1.00 85TD500 500 SW2TC600-YY-ZZ-AA 6 19.00 1.00 115TD600 500 TABLE 2 AFL NO. DIMENSIONS IN INCHES C D SW2TCXXX-4N-ZZ-AA 3.00 0.63 SW2TCXXX-4N4-ZZ-AA 4.00 1.13 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SW2TCXXX-YY-4.5-AA 4.50 SW2TCXXX-YY-5.5-AA 5.50 SW2TCXXX-YY-7-AA 7.00 SW2TCXXX-YY-8-AA 8.00 AFL No. Designation SW2TC Pad Length See Table 3 ZZ SW2TC Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
81 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00656, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTCS-AA Swage Split Bus to NEMA Pad A Swage type split bus tap with a NEMA pad. —Machine Finish C L C L Pad Detail 1 A B Pad Detail 2 F C D E 1.75 C D E 1.75 1.75 ∅ 0.56 ∅ 0.56 C L C L C L ∅ 0.56 Pad Detail 3 C D E 1.75 1.75
© 2013, AFL, all rights reserved. PP-3-00656, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 82 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SWTCS-AA Swage Split Bus to NEMA Pad Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V)* A F 2N 4N 4N4 5N4 6N4 SWTCS100-YY-ZZ-AA 1 6.00 10.00 10.00 10.00 12.00 0.38 65TD100 230 SWTCS150-YY-ZZ-AA 1.5 6.00 10.00 10.00 10.00 12.00 0.50 65TD150 230 SWTCS200-YY-ZZ-AA 2 6.00 10.00 10.00 10.00 12.00 0.50 65TD200 230 SWTCS250-YY-ZZ-AA 2.5 6.00 10.00 10.00 10.00 12.00 0.63 65TD250 230 SWTCS300-YY-ZZ-AA 3 7.25 12.00 12.00 12.00 12.00 0.75 65TD300 SEE TABLE 2 SWTCS350-YY-ZZ-AA 3.5 8.25 12.00 12.00 12.00 12.00 0.75 65TD350 SEE TABLE 2 SWTCS400-YY-ZZ-AA 4 9.25 12.00 12.00 12.00 12.00 0.75 65TD400 SEE TABLE 2 SWTCS400-YY-T1-ZZ-AA 4 9.25 12.00 12.00 12.00 12.00 1.00 65TD400 SEE TABLE 2 SWTCS500-YY-ZZ-AA 5 — — 17.00 17.00 17.00 1.00 85TD500 SEE TABLE 2 SWTCS600-YY-ZZ-AA 6 — — 19.00 19.00 19.00 1.00 115TD600 SEE TABLE 2 TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES VOLTAGE RATING ( k V)* C D E SWTCSXXX-2N-ZZ-AA 1 2.00 1.00 0.63 230 SWTCSXXX-4N-ZZ-AA 2 3.00 0.63 0.63 230 SWTCSXXX-4N4-ZZ-AA 2 4.00 1.13 1.13 500 SWTCSXXX-5N4-ZZ-AA 3 5.00 0.75 1.13 500 SWTCSXXX-6N4-ZZ-AA 3 6.00 1.25 1.13 500 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SWTCSXXX-YY-4.5-AA 4.50 ¹ SWTCSXXX-YY-5.5-AA 5.50 SWTCSXXX-YY-7-AA 7.00 SWTCSXXX-YY-8-AA 8.00 * Pipe size 2.5 S.P.S. and smaller are rated for 230 kV. Pipe size 3 S.P.S. and larger, voltage rating is determined by pad size. Pad Length See Table 3 ZZ AFL No. Designation SWTCS Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
83 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00627, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SW2TCS-AA Swage Split Bus to Two NEMA Pads A Swage type split bus tap with two NEMA pads. A ∅ 0.56 C B SYM. D D E 1.75 1.75 —Machine Finish
© 2013, AFL, all rights reserved. PP-3-00627, Revision 2, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 84 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SW2TCS-AA Swage Split Bus to Two NEMA Pads Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A E SW2TCS100-YY-ZZ-AA 1 10.00 0.38 65TD100 230 SW2TCS150-YY-ZZ-AA 1.5 10.00 0.50 65TD150 230 SW2TCS200-YY-ZZ-AA 2 10.00 0.50 65TD200 230 SW2TCS250-YY-ZZ-AA 2.5 10.00 0.63 65TD250 230 SW2TCS300-YY-ZZ-AA 3 12.00 0.75 65TD300 500 SW2TCS350-YY-ZZ-AA 3.5 12.00 0.75 65TD350 500 SW2TCS400-YY-ZZ-AA 4 12.00 0.75 65TD400 500 SW2TCS500-YY-ZZ-AA 5 17.00 1.00 85TD500 500 SW2TCS600-YY-ZZ-AA 6 19.00 1.00 115TD600 500 TABLE 2 AFL NO. DIMENSIONS IN INCHES C D SWTCXXX-2N-ZZ-AA 2.00 1.00 SW2TCSXXX-4N-ZZ-AA 3.00 0.63 SW2TCSXXX-4N4-ZZ-AA 4.00 1.13 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SW2TCSXXX-YY-4.5-AA 4.50 SW2TCSXXX-YY-5.5-AA 5.50 SW2TCSXXX-YY-7-AA 7.00 SW2TCSXXX-YY-8-AA 8.00 Pad Length See Table 3 ZZ AFL No. Designation SW2TCS Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
85 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00657, Revision 3, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued C L C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTF-AA Swage Bus to Transverse NEMA Pad A Swage type bus tap with a single transverse NEMA pad. Pad Detail 2 C D E 1.75 1.75 ∅ 0.56 —Machine Finish C L A B F C L C L Pad Detail 3 C SYM. D E 1.75 1.75 ∅ 0.56 Pad Detail 1 C D 1.75 ∅ 0.56 E
© 2013, AFL, all rights reserved. PP-3-00657, Revision 3, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 86 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SWTF-AA Swage Bus to Transverse NEMA Pad Ordering Information TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES VOLTAGE RATING ( k V)* C D E SWTFXXX-2N-ZZ-AA 1 2.00 1.00 0.63 230 SWTFXXX-4N-ZZ-AA 2 3.00 0.63 0.63 500 SWTFXXX-4N4-ZZ-AA 2 4.00 1.13 1.13 500 SWTFXXX-5N4-ZZ-AA 3 5.00 0.75 1.13 500 SWTFXXX-6N4-ZZ-AA 3 6.00 1.25 1.13 500 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SWTFXXX-YY-4.5-AA 4.50 SWTFXXX-YY-5.5-AA 5.50 SWTFXXX-YY-6.5-AA 6.50 SWTFXXX-YY-7-AA 7.00 SWTFXXX-YY-8-AA 8.00 SWTFXXX-YY-9-AA 9.00 Pad Length See Table 3 ZZ AFL No. Designation SWTF Pad Size See Table 2 YY XXX Bus Size See Table 1 AA * Pipe size 2.5 S.P.S. and smaller are rated for 230 kV. Pipe size 3 S.P.S. and larger, voltage rating is determined by pad size. TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V)* A F SWTF100-YY-ZZ-AA 1 6.00 0.38 65TD100 230 SWTF150-YY-ZZ-AA 1.5 6.00 0.50 65TD150 230 SWTF200-YY-ZZ-AA 2 6.00 0.50 65TD200 230 SWTF250-YY-ZZ-AA 2.5 6.00 0.63 65TD250 230 SWTF300-YY-ZZ-AA 3 7.25 0.75 65TD300 See Table 2 SWTF350-YY-ZZ-AA 3.5 8.25 0.75 65TD350 See Table 2 SWTF400-YY-ZZ-AA 4 9.25 0.75 65TD400 See Table 2 SWTF500-YY-ZZ-AA 5 13.00 1.00 85TD500 See Table 2 SWTF600-YY-ZZ-AA 6 15.00 1.00 115TD600 See Table 2
87 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00628, Revision 3, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 SWAGE360 ® Bus Accessories continued C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SW2TF-AA Swage Bus to Two Transverse NEMA Pads A Swage type bus tap with two transverse NEMA pads. A C F B SYM. D E 1.75 ∅ 0.56 1.75 —Machine Finish Pad Detail 2 Pad Detail 1 C D E 1.75 ∅ 0.56 1.75 SYM.
© 2013, AFL, all rights reserved. PP-3-00628, Revision 3, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.890.8878 88 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SW2TF-AA Swage Bus to Two Transverse NEMA Pads Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A F SW2TF100-YY-ZZ-AA 1 6.00 0.38 65TD100 230 SW2TF150-YY-ZZ-AA 1.5 6.00 0.50 65TD150 230 SW2TF200-YY-ZZ-AA 2 6.00 0.50 65TD200 230 SW2TF250-YY-ZZ-AA 2.5 6.00 0.63 65TD250 230 SW2TF300-YY-ZZ-AA 3 7.25 0.75 65TD300 500 SW2TF350-YY-ZZ-AA 3.5 8.25 0.75 65TD350 500 SW2TF400-YY-ZZ-AA 4 9.25 0.75 65TD400 500 SW2TF500-YY-ZZ-AA 5 13.00 1.00 85TD500 500 SW2TF600-YY-ZZ-AA 6 15.00 1.00 115TD600 500 TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES C D E SW2TFXXX-4N-ZZ-AA 1 3.00 0.63 0.63 SW2TFXXX-4N4-ZZ-AA 1 4.00 1.13 1.13 SW2TFXXX-5N4-ZZ-AA 2 5.00 0.75 0.63 SW2TFXXX-6N4-ZZ-AA 2 6.00 1.25 1.13 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SW2TFXXX-YY-4.5-AA 4.50 SW2TFXXX-YY-5.5-AA 5.50 SW2TFXXX-YY-7-AA 7.00 SW2TFXXX-YY-8-AA 8.00 AFL No. Designation SW2TC Pad Length See Table 3 ZZ SW2TF Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
89 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00659, Revision 3, 10.5.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 SWAGE360 ® Bus Accessories continued C L C L Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SWTFS-AA Swage Split Bus to Transverse NEMA Pad A Swage type split bus tap with a transverse NEMA pad. Pad Detail 1 Pad Detail 2 Pad Detail 3 C D E 1.75 ∅ 0.56 C D E 1.75 1.75 ∅ 0.56 C D E 1.75 1.75 ∅ 0.56 A B F —Machine Finish SYM.
© 2013, AFL, all rights reserved. PP-3-00659, Revision 3, 10.5.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 90 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SWTFS-AA Swage Split Bus to Transverse NEMA Pad Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V)* A F SWTFS100-YY-ZZ-AA 1 6.00 0.38 65TD100 230 SWTFS125-YY-ZZ-AA 1.25 6.00 0.50 65TD150 230 SWTFS150-YY-ZZ-AA 1.5 6.00 0.50 65TD150 230 SWTFS200-YY-ZZ-AA 2 6.00 0.50 65TD200 230 SWTFS250-YY-ZZ-AA 2.5 6.00 0.63 65TD250 230 SWTFS300-YY-ZZ-AA 3 7.25 0.75 65TD300 SEE TABLE 2 SWTFS350-YY-ZZ-AA 3.5 8.25 0.75 65TD350 SEE TABLE 2 SWTFS400-YY-ZZ-AA 4 9.25 0.75 65TD400 SEE TABLE 2 SWTFS500-YY-ZZ-AA 5 13.00 1.00 85TD500 SEE TABLE 2 SWTFS600-YY-ZZ-AA 6 15.00 1.00 115TD600 SEE TABLE 2 TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES VOLTAGE RATING ( k V)* C D E SWTFSXXX-2N-ZZ-AA 1 2.00 1.00 0.63 230 SWTFSXXX-4N-ZZ-AA 2 3.00 0.63 0.63 500 SWTFSXXX-4N4-ZZ-AA 2 4.00 1.13 1.13 500 SWTFSXXX-5N4-ZZ-AA 3 5.00 0.75 1.13 500 SWTFSXXX-6N4-ZZ-AA 3 6.00 1.25 1.13 500 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SWTFSXXX-YY-4.5-AA 4.50 SWTFSXXX-YY-5.5-AA 5.50 SWTFSXXX-YY-6.5-AA 6.50 SWTFSXXX-YY-8-AA 8.00 SWTFSXXX-YY-7-AA 7.00 SWTFSXXX-YY-9-AA 9.00 * Pipe size 2.5 N.P.S. and smaller are rated for 230 kV. Pipe size 3 N.P.S. and larger, voltage rating is determined by pad size. Pad Length See Table 3 ZZ AFL No. Designation SWTFS Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
89 SWAGE360 ® Bus Accessories © 2013, AFL, all rights reserved. PP-3-00629, Revision 4, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 SWAGE360 ® Bus Accessories continued Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. • 5" and 6" SPS parts require double swages. TYPE SW2TFS-AA Swage Split Bus to Two Transverse NEMA Pads A Swage type split bus tap with two transverse NEMA pads. C SYM. D 1.75 ∅ 0.56 E 1.75 —Machine Finish C L C L Pad Detail 2 Pad Detail 1 A F B C D 1.75 ∅ 0.56 E 1.75
© 2013, AFL, all rights reserved. PP-3-00629, Revision 4, 6.23.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 90 SWAGE360 ® Bus Accessories SWAGE360 ® Bus Accessories TYPE SW2TFS-AA Swage Split Bus to Two Transverse NEMA Pads Ordering Information TABLE 1 AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) A F SW2TFS100-YY-ZZ-AA 1 6.00 0.38 65TD100 230 SW2TFS150-YY-ZZ-AA 1.5 6.00 0.50 65TD150 230 SW2TFS200-YY-ZZ-AA 2 6.00 0.50 65TD200 230 SW2TFS250-YY-ZZ-AA 2.5 6.00 0.63 65TD250 230 SW2TFS300-YY-ZZ-AA 3 7.25 0.75 65TD300 500 SW2TFS350-YY-ZZ-AA 3.5 8.25 0.75 65TD350 500 SW2TFS400-YY-ZZ-AA 4 9.25 0.75 65TD400 500 SW2TFS500-YY-ZZ-AA 5 13.00 1.00 85TD500 500 SW2TFS600-YY-ZZ-AA 6 15.00 1.00 115TD600 500 TABLE 2 AFL NO. PAD DETAIL DIMENSIONS IN INCHES C D E SW2TFSXXX-4N-ZZ-AA 1 3.00 0.63 0.63 SW2TFSXXX-4N4-ZZ-AA 1 4.00 1.13 1.13 SW2TFSXXX-5N4-ZZ-AA 2 5.00 0.75 1.13 SW2TFSXXX-6N4-ZZ-AA 2 6.00 1.25 1.13 TABLE 3 AFL NO. DIMENSIONS IN INCHES B SW2TFSXXX-YY-4.5-AA 4.50 SW2TFSXXX-YY-5.5-AA 5.50 SW2TFSXXX-YY-6.5-AA 6.50 SW2TFSXXX-YY-7-AA 7.00 SW2TFSXXX-YY-8-AA 8.00 AFL No. Designation SW2TC Pad Length See Table 3 ZZ SW2TFS Pad Size See Table 2 YY XXX Bus Size See Table 1 AA
Features:
- Aluminum
- Swage compression fitting
- Pads conform to NEMA standards
Applications:
- Ratings vary from 230 kV to 500 kV
- Substation
- Aluminum bus pipe
Swage Aluminum Bus Terminal Taps are designed to connect to a bus pipe and carry the full current of the bus pipe using Swage Technology. Terminal Tap pads conform to NEMA standards. These accessories are available in solid or split run pipe and vary from 230-500kV.
230 kV Aluminum Compression Couplers,230 kV Aluminum Compression Tee Connectors,230 kV Aluminum Compression Tee Terminal Connectors,230 kV Aluminum Compression Terminal Connectors,230 kV Aluminum Welded Bus Pipe Couplers,230 kV Aluminum Welded Bus Pipe Elbows,230 kV Aluminum Welded Bus Pipe Supports,230 kV Aluminum Welded Bus Pipe Tee and Vee Connectors,230 kV Aluminum Welded Bus Pipe Terminal Connectors,230 kV Aluminum Welded Bus Pipe to Cable Couplers,230 kV Aluminum Welded Bus Pipe to Cable Tee,230 kV Aluminum Welded Cable Terminal,230 kV Aluminum Welded End Plugs,230 kV Aluminum Welded Grounding Rod,230 kV Aluminum Welded Pipe Taps
1086
Swage Bus Terminal Taps
Close
Swage Bus Terminal Taps
Features:
- Aluminum
- Swage compression fitting
- Pads conform to NEMA standards
Applications:
- Ratings vary from 230 kV to 500 kV
- Substation
- Aluminum bus pipe
PRODUCT DESCRIPTION
Swage Aluminum Bus Terminal Taps are designed to connect to a bus pipe and carry the full current of the bus pipe using Swage Technology. Terminal Tap pads conform to NEMA standards. These accessories are available in solid or split run pipe and vary from 230-500kV.
