Swage Cable Couplers

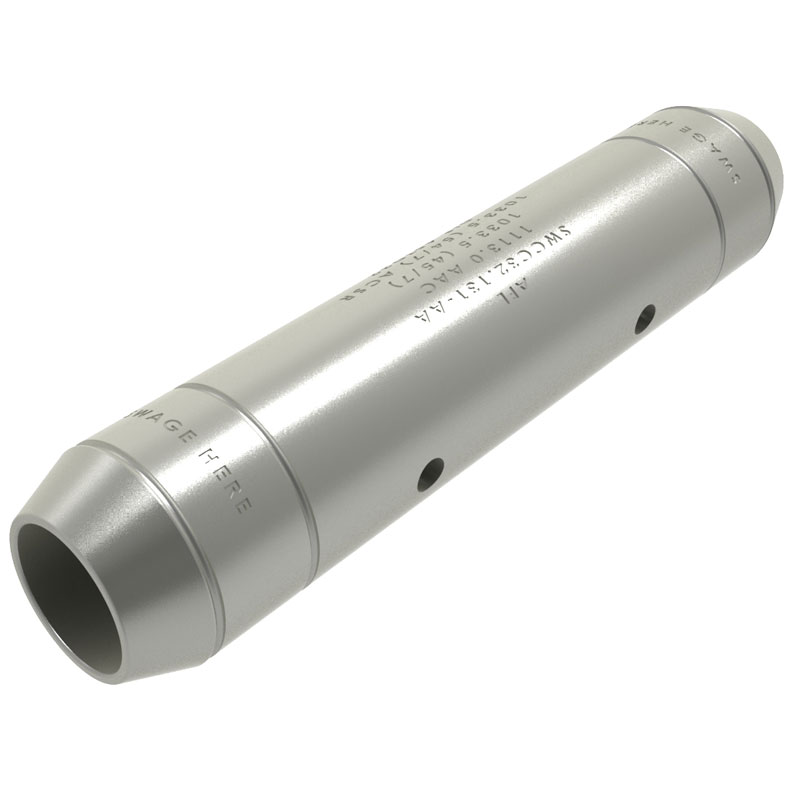

Swage Aluminum Cable Couplers are designed to connect two cable runs and carry the full current of the cable using Swage Technology. AFL offer a Swage cable to cable splice. These accessories vary from 345-500 kV. SWCC-AA

513f4e540caa4d03a9e569970e68e5a1

www.AFLglobal.com or 800-890-8878 124 Swage Cable Accessories © 2014, AFL, all rights reserved. PP-3-00522, Revision 3, 6.4.18 Specifications are subject to change without notice. CABLE COUPLERS Material Aluminum Alloy Note • Prefilled with AFL Filler Compound (AFC) and capped. TYPE SWCC-AA Swage Cable Coupler A swage type cable coupler designed to connect two aluminum cables. Ordering Information AFL NO. CABLE RANGE DIMENSIONS (INCHES) DIE SIZE VOLTAGE RATING ( k V) AAC ACSR A B SWCC1613-AA 2/0 1/0 (6/1) 1.00 9.00 45TD16 345 SWCC1617-AA 3/0 2/0 (6/1) 1.00 9.00 45TD16 345 SWCC1621-AA 4/0 3/0 (6/1) 1.00 9.00 45TD16 345 SWCC1625-AA 250 4/0 (6/1) 1.00 9.00 45TD16 345 SWCC2026-AA 266.8 266.8 (18/1) 1.25 9.00 45TD20 345 SWCC2030-AA 300 266.8 (26/7) 1.25 9.00 45TD20 345 SWCC2035-AA 336.4, 350 300 (26/7), 336.4 (18/1) 1.25 9.00 45TD20 345 SWCC2039-AA 397.5 336.4 (26/7), 336.4 (30/7), 397.5 (18/1) 1.25 9.00 45TD20 345 SWCC2445-AA 450 397.5 (24/7), 397.5 (26/7) 1.50 9.13 45TD24 345 SWCC2447-AA 477 397.5 (30/7) 1.50 9.13 45TD24 345 SWCC2450-AA 500 477 (18/1) 1.50 9.13 45TD24 345 SWCC2455-AA 556.5 477 (24/7), 477 (26/7) 1.50 9.13 45TD24 345 SWCC2860-AA 600 477 (30/7), 556.5 (18/1) 1.75 10.00 45TD28 345 SWCC2863-AA 636 556.5 (24/7), 556.5 (26/7) 1.75 10.00 45TD28 345 SWCC2871-AA 700, 715.5 556.5 (30/7), 605 (24/7), 605 (26/7), 636 (18/1), 636 (36/1) 1.75 10.00 45TD28 345 SWCC3075-AA 750 605 (30/7), 605 (30/19), 636 (24/7), 636 (26/7) 1.88 10.00 45TD30 345 SWCC3079-AA 795 636 (30/7), 636 (30/19), 715.5 (24/7), 715.5 (54/7), 795 (36/1) 1.88 10.00 45TD30 345 SWCC3087-AA 874.5 715.5 (26/7), 715.5 (30/19), 795 (45/7) 1.88 10.00 45TD30 345 SWCC3290-AA 900 795 (24/7), 795 (54/7), 795 (26/7) 2.00 10.00 45TD32 345 SWCC3295-AA 954 795 (30/19), 900 (45/7) 2.00 10.00 45TD32 345 SWCC32100-AA 1000 874.5 (54/7), 900 (54/7), 954 (45/7) 2.00 10.00 45TD32 345 SWCC32103-AA 1033.5 954 (54/7) 2.00 10.00 45TD32 345 SWCC32111-AA 1113 1033.5 (45/7), 1033.5 (54/7) 2.00 10.00 45TD32 345 SWCC36119-AA 1192.5 1113 (45/7) 2.25 10.50 45TD36 500 SWCC36127-AA 1272 1113 (54/19), 1192.5 (45/7) 2.25 10.50 45TD36 500 SWCC36135-AA 1351.5 1192.5 (54/19), 1272 (45/7) 2.25 10.50 45TD36 500 SWCC36143-AA 1431 1272 (54/19), 1351.5 (45/7) 2.25 10.50 45TD36 500 SWCC36151-AA 1510.5 1351.5 (54/19), 1431 (45/7) 2.25 10.50 45TD36 500 SWCC36159-AA 1590 1431 (54/19), 1510.5 (45/7) 2.25 10.50 45TD36 500 SWCC36175-AA 1750 1510.5 (54/19), 1590 (45/7) 2.25 10.50 45TD36 500 SWCC36180-AA 1800 1590 (54/19) 2.25 10.50 45TD36 500 SWCC44200-AA 2000 1780 (84/19) 2.75 11.50 65TD44 500 SWCC44230-AA 2250 2156 (84/19), 2167 (72/7) 2.75 11.50 65TD44 500 SWCC44250-AA 2500 2312 (76/19) 2.75 11.50 65TD44 500 B ∅ A

Features:

Aluminum
Swage compression fitting

Applications:

Ratings vary from 230 kV to 345 kV
Substation
Aluminum Cable Accessories

Swage Aluminum Cable Couplers are designed to connect two cable runs and carry the full current of the cable using Swage Technology. AFL offer a Swage cable to cable splice. These accessories vary from 345-500 kV. SWCC-AA
