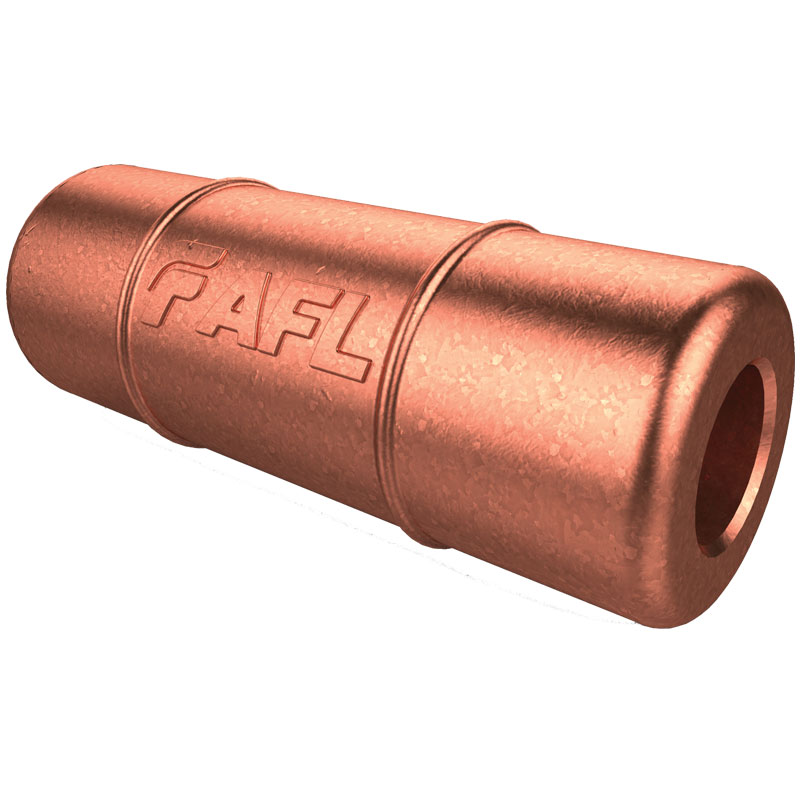

SWGC Swage Couplers join two cable or rod runs together.
eecceab84d074950b1dd0abaf536634c
4 Swage Grounding Accessories www.AFLglobal.com or 800-890-8878 © 2016, AFL, all rights reserved. PP-3-00721, Revision 2, 3.11.2020 Specifications are subject to change without notice. GROUNDING Material Copper Alloy TYPE SWGC Swage Coupler A Swage type coupler that joins two cable or rod runs together. A TAP 2 TAP 1 Ø OD Die Code comes from maximum connector OD from Table below. • EX: Tin plated coupler for 250MCM Cu to 500MCM Cu is SWGC2450-2425-SN • EX: Coupler for 250MCM Cu to 250MCM is SWGC2025 SW2TC XX SWGC Tap 1 Cable Code for Largest Conductor YYY XX Die Code ZZZ Ordering Information Part Family (Leave blank if same as Run) Tap 2 Cable Code Die Code AFL NO. COPPER CABLE (AWG OR KCMIL) DIMENSIONS IN INCHES DIE SIZE TAP 1 TAP 2 OD A SWGC204 #4 #4 1.25 3.45 45TD20 SWGC206 #2 #2 1.25 3.45 45TD20 SWGC2013-204 1/0-2/0 #4 1.25 3.45 45TD20 SWGC2013-206 1/0-2/0 #2 1.25 3.45 45TD20 SWGC2013 1/0-2/0 1/0-2/0 1.25 3.45 45TD20 SWGC2017 3/0 3/0 1.25 3.45 45TD20 SWGC2021-206 4/0 #2 1.25 3.45 45TD20 SWGC2021-2013 4/0 1/0-2/0 1.25 3.45 45TD20 SWGC2021 4/0 4/0 1.25 3.45 45TD20 SWGC2025-204 250 #4 1.25 3.45 45TD20 SWGC2025-206 250 #2 1.25 3.45 45TD20 SWGC2025-2013 250 1/0-2/0 1.25 3.45 45TD20 SWGC2025-2017 250 3/0 1.25 3.45 45TD20 SWGC2025-2021 250 4/0 1.25 3.45 45TD20 SWGC2025 250 250 1.25 3.45 45TD20 SWGC2030-2025 300 250 1.25 3.45 45TD20 SWGC2035-2013 350 1/0-2/0 1.25 3.45 45TD20 SWGC2035-2017 350 3/0 1.25 3.45 45TD20 SWGC2035-2021 350 4/0 1.25 3.45 45TD20 SWGC2035-2025 350 250 1.25 3.45 45TD20 SWGC2413 1/0-2/0 1/0-2/0 1.50 3.65 45TD24 SWGC2430 300 300 1.50 3.65 45TD24 SWGC2435 350 350 1.50 3.65 45TD24 SWGC2450-246 500 #2 1.50 3.65 45TD24 SWGC2450-2421 500 4/0 1.50 3.65 45TD24 SWGC2450-2425 500 250 1.50 3.65 45TD24 SWGC2450 500 500 1.50 3.65 45TD24 SWGC2450-242050F 500 500 FLEX 1.50 3.65 45TD24, 45TD20 Notes • For tin plating add "-SN" to catalog number. EX: SWGC2013-SN. • For detailed conductor range information, please see page 35 (L11557).
Features:
- Copper Alloy
- Swage compression fitting for grounding application
- Installs faster and more efficiently with lower installation costs over the welding process
Applications:
- Substation
- Copper Alloy Grounding Accessories
SWGC Swage Couplers join two cable or rod runs together.
