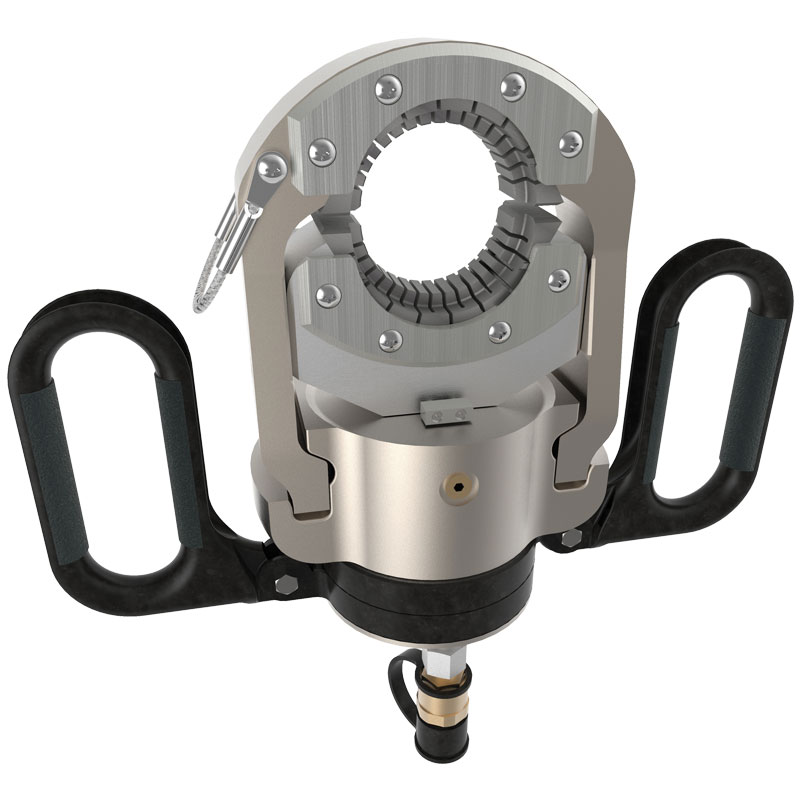

The Swage 65 Ton Press Assembly is a portable construction and maintenance tool designed to Swage bus accessories onto a bus pipe or cable. The power unit works with all sizes of head assemblies (1", 1.5", 2", 2.75" O.D., 2.5", 3", 3.5" and 4"). The catalog number provided includes everything needed for each pipe size. For more sizes, order extra press heads and dies from the head and dies section. The power unit is compatible with all press head sizes.
fa2007c267fb4047bdbf88bf01db0248
SWAGE TOOLING www.AFLglobal.com or 800-890-8878 36 © 2013, AFL, all rights reserved. PP-3-00065, Revision 5, 10.12.18 Speci cations are subject to change without notice. Swage Tooling 65TPUHAD Swage 65 Ton Press Assembly A Swage 65 Ton Press Assembly is a portable construction and maintenance tool designed to Swage bus and cable accessories onto a bus pipe or cable. The power unit works with 1" through 4" Head Assemblies. The Catalog Number below provides everything needed for each pipe size. For more sizes, order extra press heads and dies from the Head and Dies section. HEAD ASSEMBLY (ITEM 1) 360 ° QUICK DISCONNECT SWIVEL POWER UNIT (ITEM 2) SWAGE DIES (ITEM 3) Ordering Information AFL NO. S.P.S. ITEM 1 ITEM 2 ITEM 3 ITEM 4 PRESS HEAD POWER UNIT DIE INSPECTION GAUGE 65TPUHAD100 1 65THA200-L 65TPU-L 65TD100 SWGGB100 65TPUHAD150 1.5 65TD150 SWGGB150 65TPUHAD200 2 65TD200 SWGGB200 65TPUHAD44 2.75 O.D. 65TD44L SWGGC44 65TPUHAD250 2.5 65THA300 65TD250 SWGGB250 65TPUHAD300 3 65TD300 SWGGB300 65TPUHAD350 3.5 65THA400 65TD350 SWGGB350 65TPUHAD400 4 65TD400 SWGGB400
Features:
- Interchangable press head
- Interchangable press dies
- 360 degree quick disconnect swivel
Applications:
- Swage bus accessories
- Substation
- Aluminum bus pipe
The Swage 65 Ton Press Assembly (65TPUHAD) is a portable construction and maintenance tool designed to Swage bus accessories onto a bus pipe or cable. The power unit works with all sizes of head assemblies (1", 1.5", 2", 2.75" O.D., 2.5", 3", 3.5" and 4"). The catalog number provided includes everything needed for each pipe size. For more sizes, order extra press heads and dies from the head and dies section. The power unit is compatible with all press head sizes.
