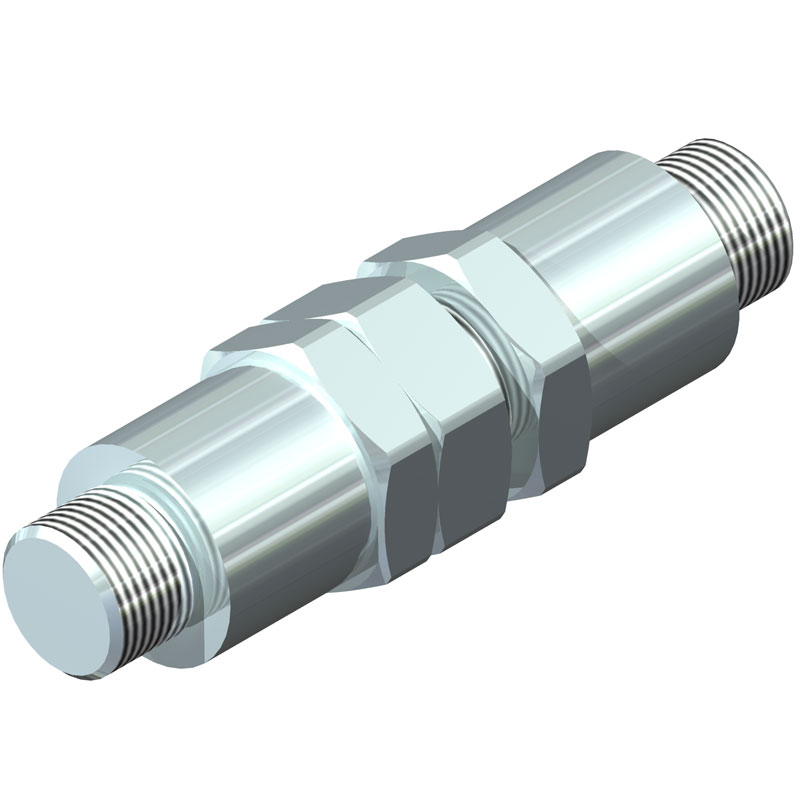

A coupling for joining Micon connectors on end. The engaging feature of the coupling permits the outlets of each unit to assume any position about the center axis.
52a8df1c09764d8682f3d27d16f0da42
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00108, Revision 2, 11.5.2025 Specifications are subject to change without notice. 1 Network Underground A coupling for joining Micon connectors on end. The special engaging feature of the coupling permits the outlets of each unit, when joined in series, to assume any position about the center axis. The small exposed area makes possible a neatly taped junction. Coupling may also be used on side outlets for different assembled configurations. MICON Coupling Type MIC Ordering Information Catalog Number Current Rating Amperes Number of Outlets Stud Size (S) Dimensions in Inches L H* MIC63 63 1275 5/8 - 18 NF-2 4 3/16 1 5/16 MIC88 88 1700 7/8 - 14 NF-2 4 5/16 1 5/8 MIC112 112 2125 1 1/8 - 12 NF-2 4 11/16 2 1/8 L LOCK NUT S H S * Across hexagonal flats. AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
Applications:
- Network Underground
- Copper cable
A coupling for joining Micon connectors on end. The special engaging feature of the coupling permits the outlets of each unit, when joined in series, to assume any position about the center axis. The small exposed area makes possible a neatly taped junction. Coupling may also be used on side outlets for different assembled configurations.
