A cable coupler which serves as both a fuse and connector.
52a8df1c09764d8682f3d27d16f0da42

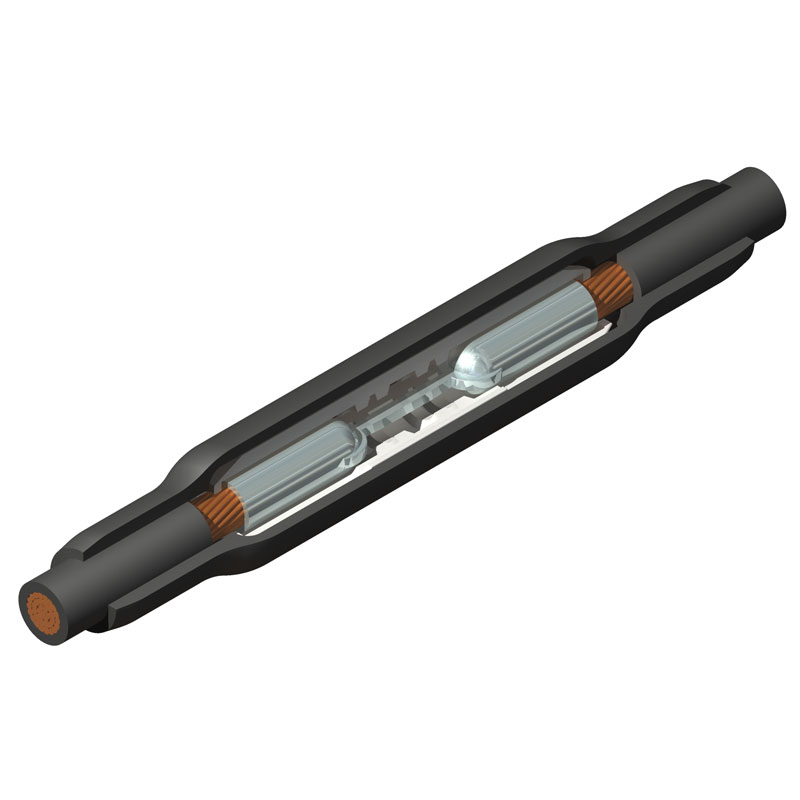

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00108, Revision 2, 11.5.2025 Specifications are subject to change without notice. 1 Network Underground A cable coupler which serves as both a fuse and connector. The fusible element will clear the line on faults or overloads servere enough to cause cable damage. The longer cable sockets offer greater taping area for establishing an oil sealed joint.* Type NRLA-PL123 Long Limiter Link Assembly for Paper Insultated Cable Ordering Information Catalog Number Cable Size iIndents in Cable Socket Dia. over Cable Insulation Dimensions in inches L O.D. NRLA21-PL123 4/0 1 Diameter over cable insulation to be specified on order. 12 7/8 2 NRLA25-PL123 250 MCM 1 12 7/8 2 NRLA30-PL123 300 MCM 2 13 5/8 2 1/4 NRLA35-PL123 350 MCM 2 13 5/8 2 1/4 NRLA40-PL123 400 MCM 2 13 5/8 2 1/4 NRLA50-PL123 500 MCM 2 16 2 7/16 NRLA75-PL123 750 MCM 2 16 2 5/8 L O.D. 1 2 3 * Closed end of sockets are sealed to make sockets oil tight. Elements Type No. Name NRLA -1 1 Insulating Sleeve NRLA-P2 2 Shell NRLA-PL3 3 Limiter Link AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
Applications:
- Network Underground
- Copper cable
A cable coupler which serves as both a fuse and connector. The fusible element will clear the line on faults or overloads servere enough to cause cable damage. The longer cable sockets offer greater taping area for establishing an oil sealed joint.
C Tapered Compression Sleeve,CKS Compression Receptacle,LLA 2P1 Limiter Terminal Insulating Sleeve,CBR Insulated Crab Connector,LLA 2P2 Limiter Terminal Shell,LLA 2PL123 Long Limiter Terminal Assembly,LLA 2PL3 Long Limiter Terminal,LLA2R123 LLA2P123 Limiter Terminal Assembly,LLA2R3 LLA2P3 Limiter Terminal,MA Cable Receptacle,MICON Coupling MIC,MICON Outlet Plugs P
