For use with Limiter Link Types NRLA-R3, NRLA-P3, and NRLA-PL3. An arc proof shell of molded composition provided with a system of cavities and heat confining barriers.
52a8df1c09764d8682f3d27d16f0da42

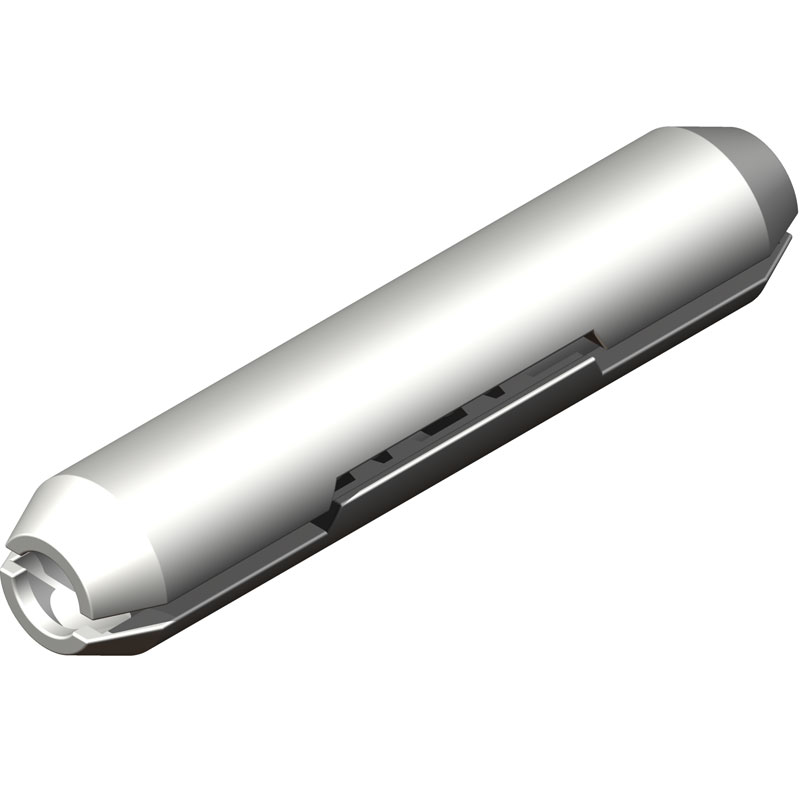

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00117, Revision 4, 11.12.2025 Specifications are subject to change without notice. 1 Network Underground An arc proof shell of molded composition provided with a system of cavities and heat confining barriers. The shell assembly permits fusible section of limiter to melt and clear line without causing damage to surrounding insulation by restraining and confining the arc and insolating the resulting heat. Types NRLA-R2, NRLA-P2 Limiter Shell for Use with Limiter Link Types NRLA-R3, NRLA-P3, and NRLA-PL3 Ordering Information Catalog Number Cable Range Dimensions in inches For Rubber Insulated Cable For Paper* Insulated Cable A L NRLA25-R2 NRLA25-P2 4/0 STR-250 MCM 1 1/2 6 13/16 NRLA40-R2 NRLA40-P2 300 MCM - 400 MCM 1 3/4 7 9/16 NRLA50-R2 NRLA50-P2 500 MCM 1 7/8 9 7/16 NRLA75-R2 NRLA75-P2 750 MCM 2 1/8 8 7/8 * For use with regular or long limiter link types NRLA-P3 and NRLA-PL3. Material Asbestite Cement, Varnish Coated L A AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
An arc proof shell of molded composition provided with a system of cavities and heat confining barriers. The shell assembly permits fusible section of limiter to melt and clear line without causing damage to surrounding insulation by restraining and confining the arc and insolating the resulting heat.
