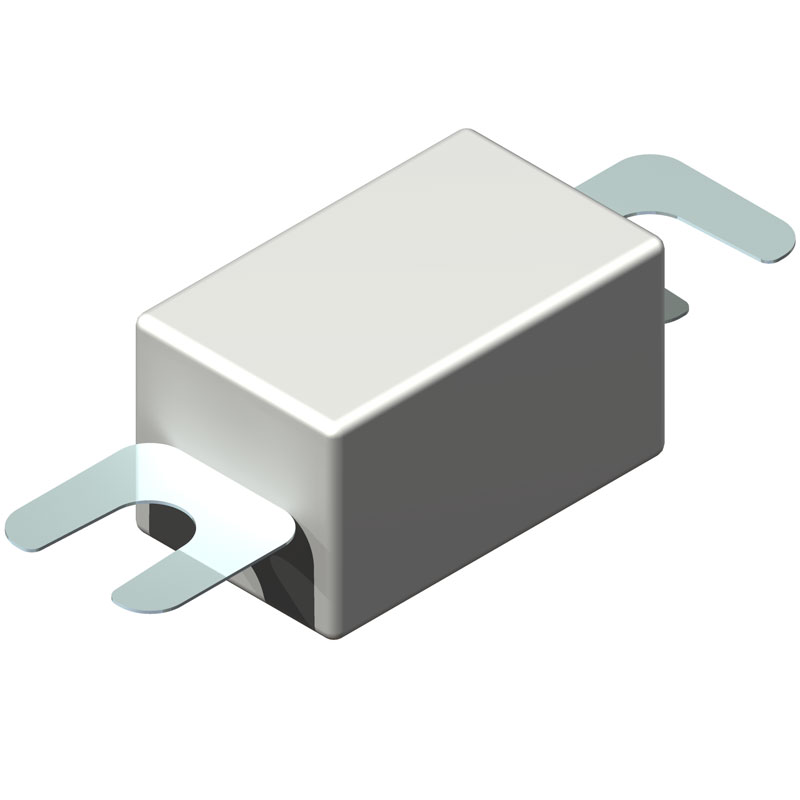

A pure copper fusible link with a predetermined time-current characteristic cemented into a shell to make a complete arc proof limiter assembly.
e520e1308f3c4559a79cbdf2a1f5869f
www.AFLglobal.com or 800-890-8878 54 © 2011, AFL, all rights reserved. Revision 0, 4.5.11 Specifications are subject to change without notice. Underground Underground A pure copper fusible link with a predetermined time-current characteristic cemented into a shell to make a complete arc proof limiter assembly A close control of tolerance of the dimensions of the fusible section assures accurate and uniform performance of each rated size Type F Limiter Link for Renewable Limiters Ordering Information c ATALO g NUM b ER c A b LE siz E F50 50 F75 75 F100 100 F150 150 F200 200 F250 250 F300 300 F400 400 F500 500 7 / 16 1 5 / 32 4 1 / 8 3 1 / 16 1 1 15 / 16 1 1 / 4
