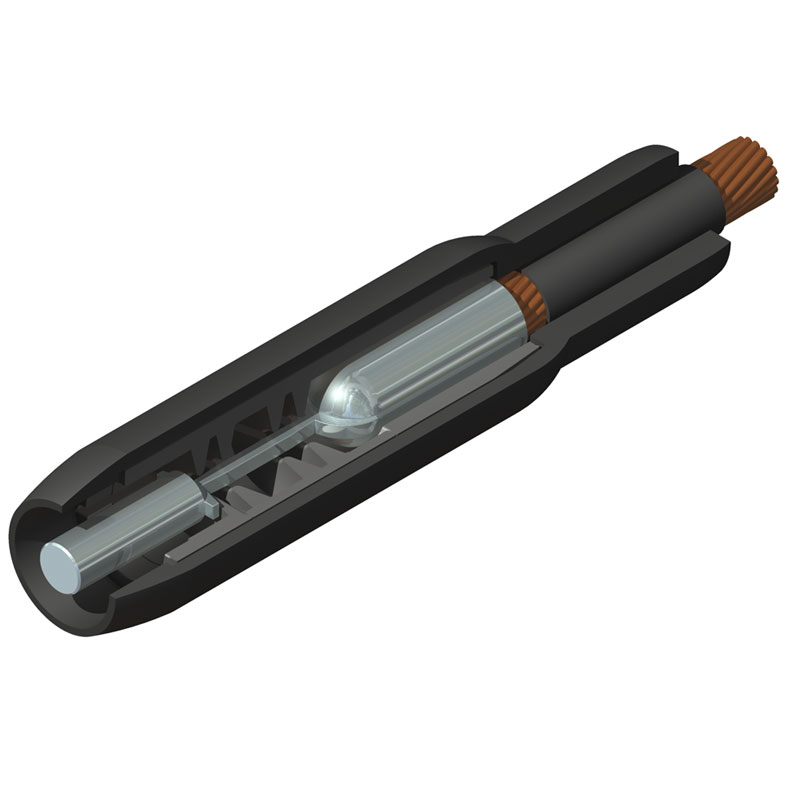

The MICON limiter assembly is designed to establish a fusible connecting point at a MICON outlet.
e520e1308f3c4559a79cbdf2a1f5869f
1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00143, Revision 2, 11.13.2025 Specifications are subject to change without notice. 1 Network Underground The MICON limiter assembly is designed to establish a fusible connecting point at a MICON outlet. The cable is simply installed by making a compression connection on the socket end. The MICON connecting end is then secured through use of the cable receptacle Type MA and tapered compression sleeve Type C. MICON limiters which have cleared a faulted or over loaded circuit can be readily replaced. Types ML-R123, ML-P123 MICON Limiter Assembly Ordering Information Catalog Number Cable Size Recommended MICON Outlet Connection Indents in Cable Socket Dimensions in inches For Rubber Insulated Cable* For Paper Insulated Cable Cable Receptacle Compression Sleeve D L O.D. ML21-R123 ML21-P123 4/0 STR MA-21 C21-21 1 Diameter over cable insulation to be specified on order. 9 7/8 1 7/8 ML25-R123 ML25-P123 250 MCM MA-25 C25-25 1 9 7/8 1 7/8 ML30-R123 ML30-P123 300 MCM MA-30 C30-30 2 10 3/8 2 3/16 ML35-R123 ML35-P123 350 MCM MA-40 C40-35 2 10 3/8 2 3/16 ML40-R123 ML40-P123 400 MCM MA-40 C40-40 2 10 3/8 2 3/16 ML50-R123 ML50-P123 500 MCM MA-50 C50-50 2 11 3/4 2 3/8 ML75-R123 ML75-P123 750 MCM MA-50-88 C50-50 2 12 1/4 2 9/16 * Closed end of sockets are sealed to make sockets oil tight. Elements Type No. Name ML-1 1 Insulating Sleeve ML-R2 2 Shell ML-P2 ML-R3 3 Limiter ML-P3 L D 2 1 3 O.D. AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
The MICON limiter assembly is designed to establish a fusible connecting point at a MICON outlet. The cable is simply installed by making a compression connection on the socket end. The MICON connecting end is then secured through use of the cable receptacle Type MA and tapered compression sleeve Type C. MICON limiters which have cleared a faulted or over loaded circuit can be readily replaced.
C Tapered Compression Sleeve,CKS Compression Receptacle,LLA 2P1 Limiter Terminal Insulating Sleeve,CBR Insulated Crab Connector,LLA 2P2 Limiter Terminal Shell,LLA 2PL123 Long Limiter Terminal Assembly,LLA 2PL3 Long Limiter Terminal,LLA2R123 LLA2P123 Limiter Terminal Assembly,LLA2R3 LLA2P3 Limiter Terminal,MA Cable Receptacle,MICON Coupling MIC,MICON Outlet Plugs P
