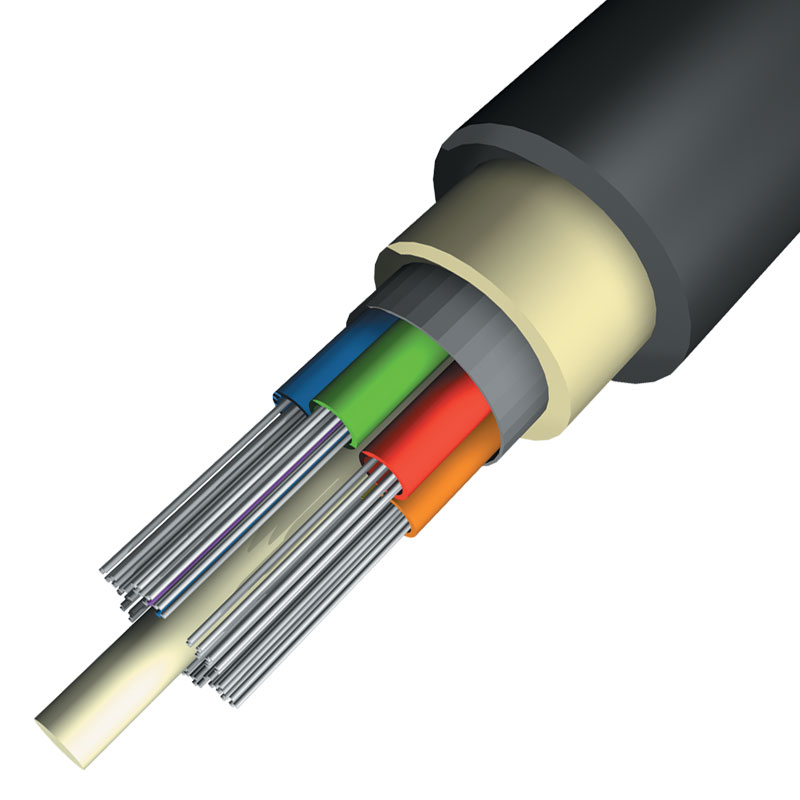

1 AFLglobal.com 1 (800) 866-7385 © 2015, AFL, all rights reserved. PP-1-00117, Revision 6, 8.15.2024 Specifications are subject to change without notice. Fiber Optic Cable 1 Applications • Industrial • Electric utility • Mining • Mass transit Features • 6 to 144 fibers • Gel-free buffer tubes for ease of fiber prep • Reverse-oscillated (SZ stranded) core to allow slack for mid-span fiber access • UV-stabilized outer jacket Listed Gel-Free, LSZH, Loose Tube Cable (LL Series) AFL’s LL-Series Gel-Free fiber optic cables are designed for use in traditional network communication infrastructures deployed in environments requiring the performance of outside plant cabling with the safety of a listed low smoke zero halogen solution. Applications in confined spaces such as tunnels and mine shafts require low smoke zero halogen materials to enhance life safety and minimize damage to sensitive electronic equipment in the event of a fire. continued Cable Components Optical Information FIBER TYPE MAXIMUM ATTENUATION (dB/km) OVERFILL LAUNCH MIN. BANDWIDTH (MHz•km) GIGABIT ETHERNET MIN. LINK Distance (meters) 850 nm 1300 nm 1310 nm 1550 nm 850 nm 1300 nm 850 nm 1300 nm (9) Single-mode N/A N/A 0.35 0.25 N/A N/A N/A 5000 (AZ) Corning Single-mode N/A N/A 0.35 0.25 N/A N/A N/A 5000 Gigabit Ethernet Minimum Link Distances are based on “bandwidth”/modal dispersion constraints. Actual link distances may be constrained by attenuation, depending on specific loss budget. LSZH Jacket Optical fiber Gel-free loose buffer tube FRP central member Rip cord Water-blocking system 2 AFLglobal.com 1 (800) 866-7385 © 2015, AFL, all rights reserved. PP-1-00117, Revision 6, 8.15.2024 Specifications are subject to change without notice. Fiber Optic Cable 2 Listed Gel-Free, LSZH, Loose Tube Cable (LL Series) Mechanical Data AFL NO. FIBER COUNT NO. OF TUBES NOMINAL DIAMETER NOMINAL WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND RADIUS lbs (N) inches (cm) FIBERS/TUBE inches (mm) lbs/1,000ft (kg/km) SHORT TERM LONG TERM SHORT TERM LONG TERM LL012  C5101N1D 12 1/12 (4 fillers) 0.39 (9.8) 49 (73) 600 (2670) 180 (800) 7.8 (20) 3.9 (10) LL024  C5101N1D 24 2/12 (3 fillers) 0.39 (9.8) 49 (72) 600 (2670) 180 (800) 7.8 (20) 3.9 (10) LL036  C5101N1D 36 3/12 (2 fillers) 0.39 (9.8) 48 (72) 600 (2670) 180 (800) 7.8 (20) 3.9 (10) LL048  C5101N1D 48 4/12 (1 filler) 0.39 (9.8) 48 (71) 600 (2670) 180 (800) 7.8 (20) 3.9 (10) LL060  C5101N1D 60 5/12 (no fillers) 0.39 (9.8) 48 (71) 600 (2670) 180 (800) 7.8 (20) 3.9 (10) LL072  C6101N1D 72 6/12 (no fillers) 0.42 (10.6) 55 (82) 600 (2670) 180 (800) 8.4 (21) 4.2 (11) LL096  C8101N1D 96 8/12 (no fillers) 0.48 (12.3) 75 (118) 600 (2670) 180 (800) 9.6 (25) 4.8 (12) LL144  CC101N1D 144 12/12 (no fillers) 0.62 (15.8) 119 (178) 600 (2670) 180 (800) 12.4 (32) 6.2 (16) Note: Diameter and weight subject to change without notice  Fiber Types – Replace asterisk (  ) in AFL number with number corresponding to desired fiber type from table on previous page. Contact AFL for more details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE Cable ICEA S-104-696 Cable IEEE 1202 Cable UL 1685 (OFNG-LS) Cable CSA 22.2 (FT4) Cable NFPA 130 and 502 Cable TIA 598-D Fiber Temperature Specifications TEMPERATURE RANGE Operation -40ºC to +70ºC Storage -40ºC to +70ºC Installation -30ºC to +70ºC Recommended Products for LSZH Loose Tube Cable DESCRIPTION AFL NO. Extreme Low Temp LSZH Double Jacket I/O Loose Tube (LA Series) See specification sheet for AFL No.
