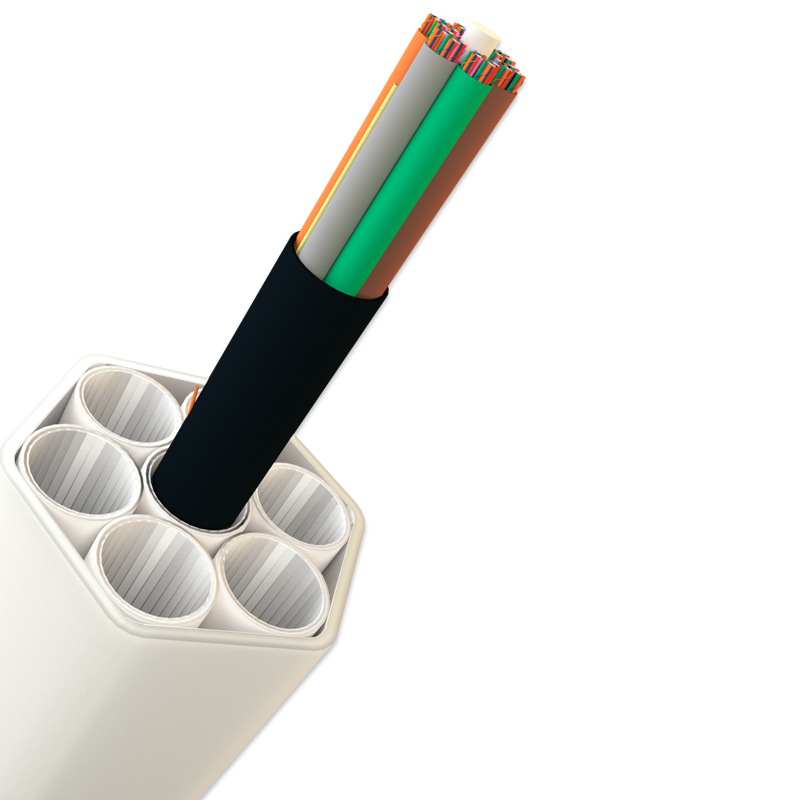

1 FIBER OPTIC CABLE Premise Cable © 2018, AFL, all rights reserved. PP-1-00146, Revision 3, 10.6.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 LMZ-Series OFNG-LS I/O MicroCore ® AFL's LMZ-Series Indoor/Outdoor OFNG-LS MicroCore product line is a flame-rated Low Smoke Zero Halogen (LSZH) cable optimized for mass transit metro rail communications networks. The product line meets NFPA 130 requirements for transit and passenger rail systems making it ideal for trackside and station-to-station air-jetting applications by eliminating the need to put contractors on the track to perform installations. The LMZ-Series is available in 24 to 432 fibers. Features • Low-smoke, zero-halogen construction reduces harmful toxic gases emitted when combusted • Optimized air-jetting cable design is ideally suited for low-cost micro-duct installation • Ruggedized Indoor/Outdoor Rated cable structure • Can be routed throughout network without a need for separate OSP and ISP cables • Loose buffer tube core construction using 200 μm single-mode fiber Ordering Information and Fiber Specifications AFL NO. FIBER COUNT FIBERS/ NO. OF TUBES** NOMINAL DIAMETER MIN. MICRODUCT INNER DIAMETER WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND lbs (N) inches (cm) inches (mm) inches (mm) lbs/1000 ft (kg/km) INSTALLATION OPERATION INSTALLATION OPERATION LMZ024*O6101NS 24 24/1 (5 fillers) 0.346 (8.8) 0.512 (13) 58 (87) 200 (890) 60 (267) 7 (18) 6 (14) LMZ048*O6101NS 48 24/2 (4 fillers) 0.346 (8.8) 0.512 (13) 59 (88) 200 (890) 60 (267) 7 (18) 6 (14) LMZ072*O6101NS 72 24/3 (3 fillers) 0.346 (8.8) 0.512 (13) 60 (90) 200 (890) 60 (267) 7 (18) 6 (14) LMZ096*O6101NS 96 24/4 (2 fillers) 0.346 (8.8) 0.512 (13) 61 (91) 200 (890) 60 (267) 7 (18) 6 (14) LMZ144*O6101NS 144 24/6 0.346 (8.8) 0.512 (13) 63 (94) 200 (890) 60 (267) 7 (18) 6 (14) LMZ288*R6101NS 288 48/6 0.413 (10.5) 0.590 (15) 85 (126) 300 (1334) 90 (400) 8.5 (21) 6.5 (16) LMZ432*T6101NS 432 72/6 0.512 (13.0) 0.787 (20) 126 (188) 600 (2670) 180 (801) 10.5 (26) 8 (20) * Fiber Types – Replace asterisk (*) in AFL number with letters in the Fiber Specifications table below. For example, LMZ024BCO6101NS. ** Fibers are arranged in buffer tubes using 12-fiber sets. Each set is identified by colored binder threads. Temperature Specifications TEMPERATURE RANGE INSTALLATION -10ºC to +40ºC OPERATING -30ºC to +70ºC STORAGE -30ºC to +55ºC Applications • Metro-rail station-to-station tunnel networks • Airport terminal-to-terminal connections • Industrial complex communications infrastructure Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE Cable* ICEA S-104-696 Cable UL 1685 (OFNG-LS) Cable CSA 22.2 (FT4) Cable NFPA 130 12.2 Cable TIA 598-D Fiber * Temperature range as specified Optical Fiber Specifications FIBER TYPE STANDARD MODE FIELD DIAMETER 1310 nm ATTENUATION 1310 nm 1550 nm (BC) 200 μm Single-mode ITU-T G.652.D / 657.A1 9.2 μm nominal 0.35 0.25 (BA) Corning 200 μm Single-mode ITU-T G.652.D / 657.A1 9.2 μm nominal 0.35 0.25
