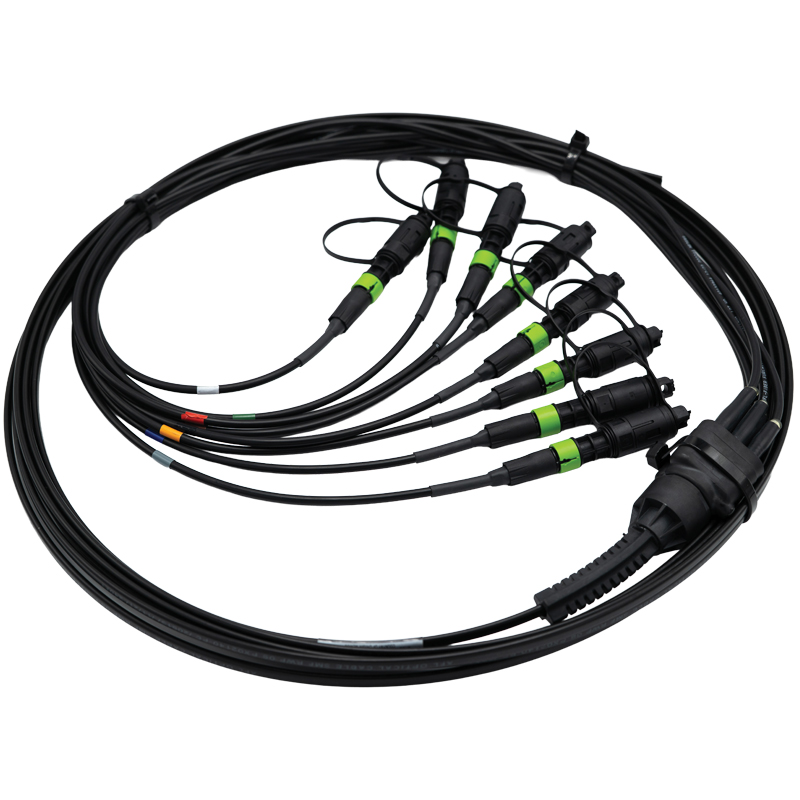

AFL FTD™ Terminal – Powered by Prodigy®
Features
- Uses AFL FTD Terminal Hardened Connector Ports for quick customer connections
- Options include 6, 8 or 12 ports as well as a variety of cable
options including flat drop, ADSS or armored drop
– Available as a 4-port using AFL RTD™ Drop Connectors – Powered by Prodigy® (see specification sheet) - 1M breakout length
- Terminated with OptiTap®-compatible female full size connectors that allow for quick termination to OptiTap compatible male connectors
- Mounting bracket option available
- Note: Prodigy® connectors under license from CommScope
Applications
- Below grade vault
- Pole mount, pedestal mount, wall mount and aerial mount
PRODUCT DESCRIPTION
The AFL FTD Terminal is a factory-terminated compact OSP fiber terminal designed for quick and easy subscriber connections anywhere in the OSP network. This is a flexible solution which would allow the terminal to fit in a small size handhole (8" flowerpot) where traditional multiport terminals will not fit. The AFL FTD Terminal also uses customizable lengths for flexible and easy installations.
