AFL RTD™ Distributed Tap Terminal – Powered by Prodigy®
Features
- Reduced size ~40% smaller than full size hardened fiber optic connectors
- Output port range from 2–8 hardened connector ports
- Distributed Tap terminals offered with up to 8 ports supporting 1x2, 1x4, and 1x8 optical splitters with wide band couple ratios from 97/3 to 50/50
- Color coded placards for easy identification
– Distributed Tap- Orange Placard - Designed and tested to IEC-61573, category G (outdoor ground level environment)
- Versatile mounting options including, Pole, Pedestal, Strand, and Handhole/vault
- Made under license from Commscope utilizing the Prodigy Hardened SC/APC adapter
- Patent Information: www.AFLglobal.com/patents
Applications
- Below grade vault
- Pole mount, pedestal mount, wall mount and aerial mount
PRODUCT DESCRIPTION

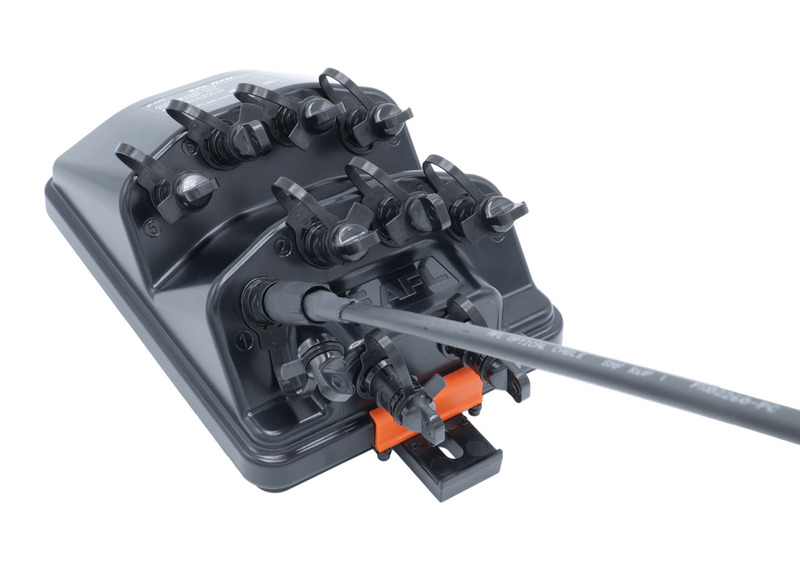

The AFL RTD Distributed Tap Terminal powered by Prodigy is the latest offering from AFL to support FTTx deployments. This product features the reduced size Prodigy hardened fiber optic adapters with a large selection of cable types and lengths.
The AFL RTD Distributed Tap Terminal features a wide variety of optical splitter options and wide band coupler ratios to support even complex system designs. The AFL RTD Distributed Tap Terminal is factory sealed to withstand the harsh outside plant application environments.
