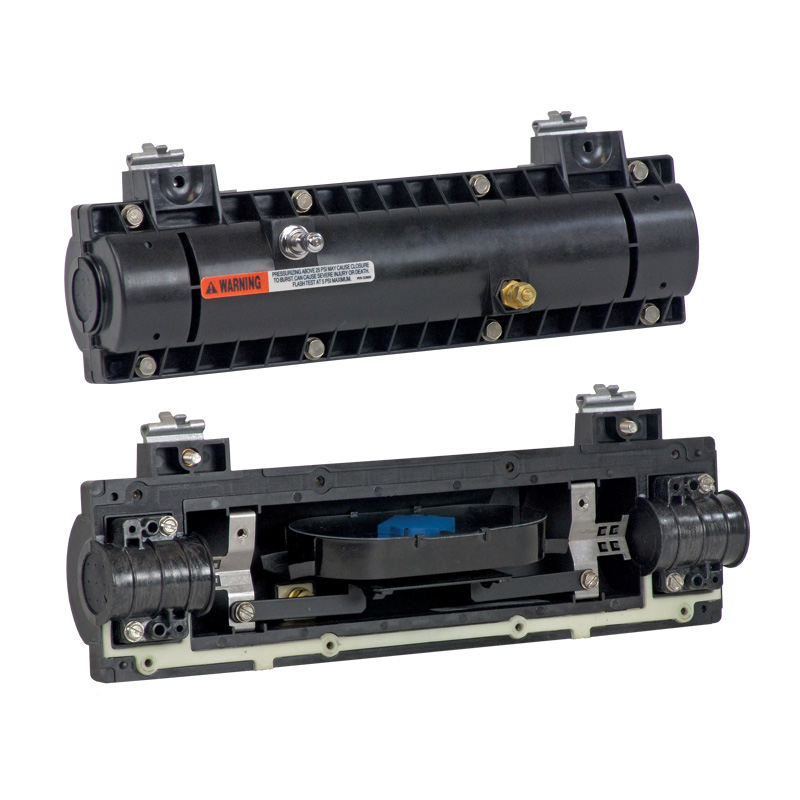

© 2002, AFL, all rights reserved. PP-2-00003, Revision 10, 6.30.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Optical Connectivity Specifications PARAMETER VALUE Splice Capacity (Max.)—Single, Mass, Mechanical 24, n/a, 24 Number of Splice Trays (Max.)—Single, Mass, Mechanical* 1, n/a, 1 Cable Entrance Configuration Butt or In-line Cable Sizes (Min. O.D. - Max. O.D.) Included Grommets Single in. (mm) Double Express Port Only in. (mm) Additional Grommets Quad Express Port Only in. (mm) (2) Express Ports 0.40" - 0.70" (10.0 - 25.4) 0.26" - 0.44" (6.6 - 11.2) 0.26" - 0.38" (6.6 - 9.7) Dimensions—(L x D) in. (mm) 14.0" x 4.0" (343.0 x 101.6) Weight—lbs. (kg) 3.0 (1.36) Ordering Information DESCRIPTION MODEL NO. AFL NO. LG-55 FC000034-PS Fiber Optic Splice Closure—Stores up to 32 single fusion, includes 2 single cable grommets and 1 dual cable grommet kit for sealing/retention and 2 ground terminals. Splice tray and hanger brackets included. Not included: Cable Grounding Kits LG55-U-1 FC000034-PS LL-2425 Single Splice Tray—Stores (32) single fusion splices. Maximum of 1 trays in the LG55. Tray Included. LL-2425 FC000053 LG-350 Single Grommet Kit (Min. 0.40" - Max. 1.00") For use in LG-55 on Express Port side. LG-350 Exp Single Kit FC000726 LG-350 Dual Grommet Kit (Min. 0.26" - Max. 0.44") For use in LG-55 on Express Port side. LG-350 Exp Dual Kit FC000337 LG-350 Quad Grommet Kit (Min. 0.26" - Max. 0.38") For use in LG-55 on Express Port side. LG-350 Exp Quad Kit FC000421 LG-55 Grommet Kit (1) 3 flat drop grommet (flat drop 0.31" or round cable up to 0.25") and (1) dual grommet (Min. 0.26" - Max. 0.44"). LG-55 Drop Kit FC000807 Cable Grounding Kit (pack of 5)—Clamp-On Ground Cable Only CGK-5 FC001091 *Mechanical Splice Kit. Includes 10 pieces of VHB tape. Used in all splice trays. Each piece holds 12 splices. VHB Tape FA000089 Designed with versatility in mind, the LightGuard (LG) 55 sealed closure from AFL offers a variety of solutions including repair and distribution splicing, grounding for Fiber-in-the-Loop applications, and for use as an isolation gap with armored cables. This closure accepts stranded loose tube or ribbon fiber cables in either armored or dielectric configurations and can be utilized in a butt or in-line configuration. The LG-55 closure incorporates a unique cable clamp design sealing the cable, allowing both of the cover halves to be removed without disturbing the contents. In addition, AFL’s Peel & Seal Grommet System ™ is incorporated to ensure a tight fit on various cable diameters, fully sealing the closure and protecting the fiber while eliminating cumbersome tape and washers—making installation fast and easy. LightGuard ® 55 Sealed Fiber Optic Splice Closure Features • Accommodates cables to 0.70" O.D for splicing and grounding/bonding • Incorporates the Peel and Seal Grommet System, fully sealing the closure • Includes removable, integral central splicing module and individual cable retention clamps • Requires only a common can wrench for installation In-line Repair Closure (IRC) for repair of flat or round drop cables
