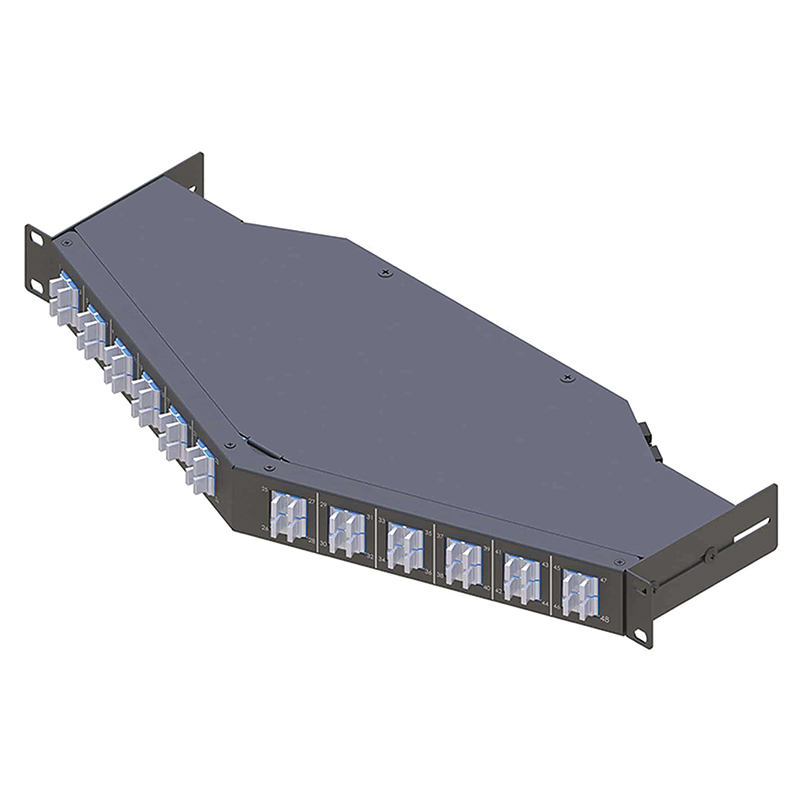

The UltraSlim 1RU V-Panel BASE-8 with 96 Fibers is designed to allow connection of Base-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX).
36bb035f6eb349288207cb8b202b9da4
© 2021, AFL, all rights reserved. PP-2-00348, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Fiber Management UltraSlim 1RU V-Panel BASE-8 with 96 Fibers The UltraSlim 1RU V-Panel BASE-8 with 96 Fibers is designed to allow connection of Base-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX). Fixed panel offers fast installation and cost effectiveness against typical high-density modular systems. The shallow depth of the UltraSlim profile uniquely makes it suitable for low-depth cabinet or racking systems. The V-shape profile front, together with cable management accessories, facilitates managing front and rear cabling. Low loss MPO and LC Premium terminations are offered featuring significantly improved low insertion losses for demanding low power budget, high-speed networks. Features • Dedicated Base-8 configuration for 96 x Fibers • UltraSlim profile suitable for low-depth racks or cabinet • Optimized front space for extraction-free LC port finger access • Improved installation time and cost effectiveness of single panel • V-shape design improves patching management • Optimized Performance – Low loss MPO, discrete premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget, high-speed network environments • Reliability – 100% Tested – Combination of high-quality components and manufacturing quality control guarantees product to the highest standards • Rapid Deployment – Factory pre-populated panel saves installation time – 1 x click to connect 12 fibers using MPO interface Applications • Data Communication Applications • Data Center Infrastructure • Storage Area Network – Fiber Channel • 40 and 100 Gbps Protocols Ordering Information CODE FIBER TYPE CODE END B CODE A – 4 (OM4) – US96BPV – A (LC) – -05DP 7 (G.657A1) B (LCA)
© 2021, AFL, all rights reserved. PP-2-00348, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Fiber Management UltraSlim 1RU V-Panel BASE-8 with 96 Fibers Technical Drawings Specifications PARAMETER VALUE Fiber Types SM G.657A1, MM OM4 Fiber Count 96 MPO Adapters IEC 61754 and EIA/TIA 604-5 Body Color: Black LC Adapter LC Quad Body Color: Aqua (MM)(OM4), Blue (SM/UPC), Green (SM/APC) Terminations 12xMPO Low Loss Premium (12 Fiber Ferrule) and 96xLC Low Loss Premium Dimensions (W x D x H) Packaged (W x D x H) 464 x 193 x 44 mm 545 x 260 x 70 mm Weight Packaged Weight 2 kg 2.2 kg 441 mm 83 mm 145 mm 464 mm 44 mm Temperature Specifications TEMPERATURE RANGE STORAGE -20°C to +60°C INSTALLATION -20°C to +60°C OPERATING -20°C to +60°C Qualifications GOVERNING BODY STANDARD CODES IEC 61300-3-4, 61300-3-34, 61300-3-6, 61754 EIA/TIA 604-5
© 2021, AFL, all rights reserved. PP-2-00348, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Fiber Management Connector Performance CONNECTOR MATING INSERTION LOSS (IL) AVERAGE IL MAX RETURN LOSS (RL) MPO Premium (MM) 0.10 dB 0.35 dB N/A NA NA NA N/A MPO Premium (SM) 0.10 dB 0.35 dB >60 dB NA NA NA N/A OPTICAL PERFORMANCE MM PREMIUM NA SM PREMIUM NA IL Max/Master (Acceptance) 0.15 dB NA 0.15 dB NA Ave/Master 0.08 dB NA 0.12 dB NA Ave/Random 0.10 dB NA 0.12 dB NA RL (Min Acceptance) NA NA 55/65 dB* NA *UPC/APC UltraSlim 1RU V-Panel BASE-8 with 96 Fibers
Features:
- Dedicated Base-8 configuration for 96 x Fibers
- UltraSlim profile suitable for low-depth racks or cabinet
- Optimized front space for extraction-free LC port finger access
- Improved installation time and cost effectiveness of single panel
- V-shape design improves patching management
- Optimized Performance – Low loss MPO, discrete premium connectors and OM4 fiber assures low insertion losses and power penalties in tight power budget, high-speed network environments
- Reliability – 100% Tested – Combination of high-quality components and manufacturing quality control guarantees product to the highest standards
- Rapid Deployment – Factory pre-populated panel saves installation time – 1 x click to connect 12 fibers using MPO interface
Applications:
- Data Communication Applications
- Data Center Infrastructure
- Storage Area Network – Fiber Channel
- 40 and 100 Gbps Protocols
The UltraSlim 1RU V-Panel BASE-8 with 96 Fibers is designed to allow connection of Base-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX). Fixed panel offers fast installation and cost effectiveness against typical high-density modular systems. The shallow depth of the UltraSlim profile uniquely makes it suitable for low-depth cabinet or racking systems. The V-shape profile front, together with cable management accessories, facilitates managing front and rear cabling. Low loss MPO and LC Premium terminations are offered featuring significantly improved low insertion losses for demanding low power budget, high-speed networks.
