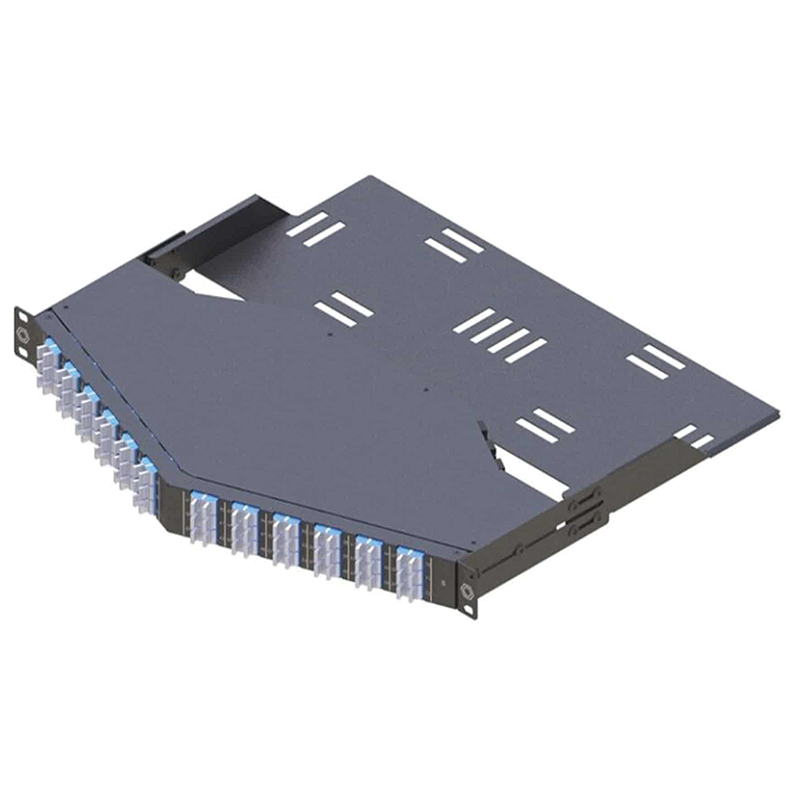

The UltraSlim 1RU V-Panel BASE-8 with 144 Fibers is designed to allow connection of BASE-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX).
36bb035f6eb349288207cb8b202b9da4
© 2021, AFL, all rights reserved. PP-2-00351, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 1 Optical Connectivity Fiber Management UltraSlim 1RU V-Panel BASE-8 with 144 Fibers (with Rear Manager) The UltraSlim 1RU V-Panel BASE-8 with 144 Fibers is designed to allow connection of BASE-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX). High-density design offers optimal space management with tool-free extraction, finger access to LC ports. Fixed panel offers both installation speed and cost effectiveness against legacy high-density modular systems. The shallow depth of UltraSlim profile is unique making it suitable for low depth cabinet or racking systems. The V-shape front profile, together with cable management accessories, facilitates managing front and rear cabling. Low loss MPO and LC Premium terminations are offered featuring significantly improved low insertion losses for demanding low power budget, high-speed networks. Features • Dedicated BASE-8 configuration for 144 x Fibers • UltraSlim profile suitable for low depth racks or cabinet • Extraction-free LC port finger access • Improved installation time and cost effectiveness of single panel • V-shape profile improves patching management • Optimized Performance – Low loss MPO and LC terminations assure low insertion losses and power penalties in tight power budget, high-speed network environments • Rapid Deployment – Factory pre-populated panel saves installation time – 1 x click to connect 12 fibers using MPO interface Applications • Data Communication Applications • Data Center Infrastructure • Storage Area Network – Fiber Channel • 40 and 100 Gbps BASE-8 Ordering Information CODE FIBER TYPE CODE END B CODE A – 4 (OM4) – USABBPV – A (LC) – -05DN (STANDARD) W (OM5) B (LCA) -05XX (CUSTOM) 7 (G.657A1)
© 2021, AFL, all rights reserved. PP-2-00351, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 Optical Connectivity Fiber Management UltraSlim 1RU V-Panel BASE-8 with 144 Fibers (with Rear Manager) Technical Drawings Specifications PARAMETER VALUE Fiber Types SM G.657A1, MM OM4 Fiber Count 144 MPO Adapters IEC 61754 and EIA/TIA 604-5 Body Color: Black Polarity: A/C – Keyway up-Keyway down Body Color: Grey Polarity: B – Keyway up-Keyway up LC Adapter LC Quad Body Color: Aqua (MM)(OM4), Blue (SM/UPC), Green (SM/APC) Terminations MPO Low Loss Premium (12 Fiber Ferrule) with LC Low Loss Premium Dimensions (W x D x H) Packaged 464 mm x 196 mm x 44 mm 545 mm x 260 mm x 70 mm Weight Packaged 2 kg 2.2 kg 412 mm 239 mm 482 mm A 157 mm 44 mm 173 mm Temperature Specifications TEMPERATURE RANGE STORAGE -20°C to +60°C INSTALLATION -20°C to +60°C OPERATING -20°C to +60°C Qualifications GOVERNING BODY STANDARD CODES COMPONENT IEC 61754 61300-3-4, 61300-3-34, 61300-3-6 MPO Adapters LC Adapters EIA/TIA 604-5 MPO Adapters
© 2021, AFL, all rights reserved. PP-2-00351, Revision 0, 4.7.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 3 Optical Connectivity Fiber Management UltraSlim 1RU V-Panel BASE-8 with 144 Fibers (with Rear Manager) Connector Performance CONNECTOR MATING INSERTION LOSS (IL) AVERAGE IL MAX RETURN LOSS (RL) MPO Premium (MM) 0.10 dB 0.35 dB N/A NA NA NA N/A MPO Premium (SM) 0.10 dB 0.35 dB >60 dB NA NA NA N/A OPTICAL PERFORMANCE MM PREMIUM NA SM PREMIUM NA IL Max/Master (Acceptance) 0.15 dB NA 0.15 dB NA Ave/Master 0.08 dB NA 0.12 dB NA Ave/Random 0.10 dB NA 0.12 dB NA RL (Min Acceptance) NA NA 55/65 dB* NA *UPC/APC
Features:
- Dedicated BASE-8 configuration for 144 x Fibers
- UltraSlim profile suitable for low depth racks or cabinet
- Extraction-free LC port finger access
- Improved installation time and cost effectiveness of single panel
- V-shape profile improves patching management
- Optimized Performance – Low loss MPO and LC terminations assure low insertion losses and power penalties in tight power budget, high-speed network environments
- Rapid Deployment – Factory pre-populated panel saves installation time – 1 x click to connect 12 fibers using MPO interface
Applications:
- Data Communication Applications
- Data Center Infrastructure
- Storage Area Network – Fiber Channel
- 40 and 100 Gbps Protocols
The UltraSlim 1RU V-Panel BASE-8 with 144 Fibers is designed to allow connection of BASE-8 100/40G (MPO) with lower-speed 25/10G interfaces (LC DX). High-density design offers optimal space management with tool-free extraction, finger access to LC ports. Fixed panel offers both installation speed and cost effectiveness against legacy high-density modular systems. The shallow depth of UltraSlim profile is unique making it suitable for low depth cabinet or racking systems. The V-shape front profile, together with cable management accessories, facilitates managing front and rear cabling. Low loss MPO and LC Premium terminations are offered featuring significantly improved low insertion losses for demanding low power budget, high-speed networks.
