AFL’s ROGUE OLTS Certifier measures insertion loss, return loss, and length bi-directionally to industry standards on both multimode and singlemode networks.
9c8e32f834094db7ac818a7ca75a00cc
1 ROGUE ® OLTS Certifier Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing ©2022-2023, AFL, all rights reserved. RG-OLTS-2000 Revision AD, 2023-05-02 Specifications are subject to change without notice. Features • Bi-directional testing on up to 2 fibers at once • Pass/Fail certification to ISO/IEC/TIA/IEEE and custom test limits • Automatic dual-wavelength identification (Wave ID) • Test cord reference wizard and built-in encircled flux compliance • Integrated power meter and visual fault identifier • 12-fiber MPO certification with optional Multi-fiber switch (MFS) • Reporting with TRM ® PC software and optional cloud-based workflow integration with aeRos ® Applications • Certify Tier 1 networks to industry standards • Test LAN structured cabling and data center networks with single fiber (LC, SC, FC, ST) and multi-fiber (MTP/MPO) connectivity • Test access, metro and core networks • Document network installations Measure insertion loss, return loss and length on multimode and single-mode fiber optic networks AFL’s ROGUE OLTS Certifier measures insertion loss, return loss, and length bi-directionally to industry standards on both multimode and single- mode networks. ROGUE OLTS Certifier is offered as a matched pair of units, with each unit featuring 4 test ports. Two of the ports combine a light source and power meter to enable bi-directional testing on single or dual fibers. The other two ports are a dedicated power meter and a visual fault identifier (VFI) to help troubleshoot networks. ROGUE OLTS Certifier is available as an intelligent base (iB1) model with an integrated display. It can provide either single-fiber testing on quad SM/MM wavelengths (850/1300/1310/1550 nm) or single and dual-fiber testing at 1310/1550 nm. Test Management and Reporting Software: All ROGUE OLTS Certifier kits include a basic license for Test Result Manager (TRM ® 3.0) providing data processing and reporting locally via a PC. The optional aeRos ® Pro test management software provides cloud-based workflow integration to remotely build projects, assign jobs, collect results, track progress and generate reports.
2 ROGUE ® OLTS Certifier Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing ©2022-2023, AFL, all rights reserved. RG-OLTS-2000 Revision AD, 2023-05-02 Specifications are subject to change without notice. Specifications a OLTS MULTIMODE SINGLE-MODE Emitter Type LED Laser Wavelengths 850 ±30 nm; 1300 ±20 nm 1310, 1550 ±20 nm Safety Class Class I FDA 21 CFR 1040.10 and 1040.11, IEC EN60825-1: 2007-03 Detector Type InGaAs InGaAs Launch Condition Encircled Flux Compliant b N/A Length Measurement Range 5 km 200 km ( SMF28e) Power Measurement Range +3 to -60 dBm +3 to -60 dBm Output Power -24/-23 dBm, 62.5/50 μm -3 dBm, 9 μm Stability c ±0.1 dB over 1 hour ±0.15 dB over 8 hours ±0.1 dB over 1 hour ±0.15 dB over 8 hours Wave ID Transmit Yes Yes Tone Generation 330 Hz, 1 kHz, 2 kHz 330 Hz, 1 kHz, 2 kHz Input Connector Interchangeable connector adapter (LC standard, SC, ST, FC optional) OPTICAL POWER METER (OPM) Calibrated Wavelengths 850, 1300, 1310, 1490, 1550, 1625, 1650 nm Detector Type InGaAs PIN, 2 mm diameter Measurement Range +3 to -70 dBm Wave ID Automatically synchronizes and measures 1, 2 or 3 λ Wave ID combinations Range +3 to -40 dBm @ 850 nm; +3 to -50 dBm @ 1300, 1310, 1550 nm Tone Detect Auto-detects 270, 330 Hz; 1, 2 kHz tones; Accuracy ±5% @-10 dBm Linearity ±0.1 dB (-3 to -40 dBm); ±0.25 dB (-40 to -50 dBm) Measurement Units Power in dBm, nW, μW, mW; Loss in dB; 0.01 dB resolution VISUAL FAULT LOCATOR (VFL) Emitter Type Visible red laser, 650 ±20 nm Safety Class Class II FDA 21 CFR 1040.10 and 1040.11, IEC EN60825-1: 2007-03 Output Power (nominal) 0.8 mW into single-mode fiber Modes CW and 2 Hz flashing GENERAL iB1 Size 23.5 x 13.3 x 7.6 cm (9.25 x 5.25 x 3.0 in) Weight 1.56 kg (3.46 lb) Operating Temperature -10 °C to +50 °C, 0 to 90 % RH (non-condensing) Storage Temperature -20 °C to +60 °C, 0 to 90 % RH (non-condensing) Power Rechargeable Li-Ion or AC power adapter Battery Life >8 hours continuous testing Notes: a. All specifications valid at 23°C ±2°C (73.4°F ±3.6°F) unless otherwise specified. b. TIA-526-14-B,ISO/IEC 14763-3 and IEC 61280-4-1. c. After 15 minutes warm-up.
3 ROGUE ® OLTS Certifier Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing ©2022-2023, AFL, all rights reserved. RG-OLTS-2000 Revision AD, 2023-05-02 Specifications are subject to change without notice. Ordering Information Each ROGUE OLTS Certifier kit includes two (2) of each: ROGUE iB1 Base, kit-specific ROGUE Modules, battery, AC charger, carry strap, carry case. Each ROGUE OLTS Certifier kit includes (1) One-Click Cleaner SC/2.5 mm, (1) One-Click Cleaner LC/1.25 mm, switchable test port adapters and test accessories. DESCRIPTION CONTAINS (two of each) AFL NO. ROGUE OLTS Certifier kit with iB1 Base, Quad SM/MM ROGUE iB1 Base, Quad SM/MM Module, battery, AC charger, adjustable carry strap, carry case RGK-CERT01B1 ROGUE OLTS Certifier kit with iB1 Base, Dual SM ports ROGUE iB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap, carry case RGK-CERT03B1 ROGUE Hardware and Accessories DESCRIPTION AFL NO. ROGUE OLTS with iB1 Base; contains ROGUE iB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap RGK-OLTS03B1 ROGUE iB1, Intelligent Base; contains ROGUE iB1 Base, battery, AC charger, adjustable carry strap RG-B01 ROGUE OLTS Certifier Quad Module; contains Quad Module; test port adapters: (2) SC for OLS port, SC and LC for OPM port RG-1100-Q01 ROGUE OLTS Certifier SM Module; contains SM Module; test port adapters (2) SC for OLS port, SC and LC for OPM port RG-1100-S01-D ROGUE Kit Carry Case RGA-CASE-01 ORL Referencing Mandrel 5400-00-0200 Adjustable Carry Strap RGA-STRAP-01 AC charger for cB1 Base 4050-00-0132PR AC charger for iB1 Base 4050-00-0918PR Reference cable, SC/UPC-LC/UPC, SMF28E/E+, 2 m 8700-00-0081 Reference cable, SC/APC-LC/UPC, SMF, 2 m 8700-00-0050 Reference grade cable, SC/UPC-LC/UPC, MMF, 50 μ m, OM4, 2 mm, Red, 2 m 8700-04-0007MR ROGUE OLTS Certifier kit with iB1 Bases
4 ROGUE ® OLTS Certifier Test & Inspection AFLglobal.com | 800.235.3423 Optical Loss Testing ©2022-2023, AFL, all rights reserved. RG-OLTS-2000 Revision AD, 2023-05-02 Specifications are subject to change without notice. Qualificati ons CATEGORY REGULATION/STANDARD QUALIFICATION CE Marking EU Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking Safety /EMC /EMI IEC Compliant to IEC 61010-1 for safety requirements for electrical equipment EN Compliant to EN 61010-1 for safety requirements for electrical equipment IEC Compliant to IEC 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 61326-1 for EMC requirements for electrical equipment EN Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment FCC Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions FDA Compliant to code of federal regulations FDA 21 CFR 1040.10 and 1040.11 on laser products IEC Compliant to IEC 60825-1 for safety of laser products RoHS EU Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) Test Method TIA Compliant to TIA-568.3-D for test and measurement requirements for premises optical fiber cabling and components IEC Compliant to IEC 11801 for test and measurement requirements for optical fiber cabling for use within premises EN Compliant to EN 50173 for test and measurement requirements for optical fiber cabling for use within premises AS/NZS Compliant to AS/NZS 3080 for test and measurement requirements for optical fiber cabling for use within premises TIA Compliant to TIA-526-7 for test procedures for installed optical fiber cable plant TIA Compliant to TIA-526-14 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 14763-3 for systems and methods for the inspection and testing of installed optical fiber cabling AS/NZS Compliant to AS/NZS 14763.3 for systems and methods for the inspection and testing of installed optical fiber cabling IEC Compliant to IEC 61280-4-1 for test procedures for installed optical fiber cable plant IEC Compliant to IEC 61280-4-2 for test procedures for installed optical fiber cable plant Contact Sales@AFLglobal.com to schedule a demonstration or learn how to buy. Visit www.AFLglobal.com/Test to learn more about ROGUE OLTS Certifier. International Sales and Service Contact Information available at www.AFLglobal.com/Test/Contacts Recommended Products Cloud-based Test Management and Reporting • Se amless interaction with Android™ applications • Run reports at the push of a button ROGUE OLTS Certifier Adapters DESCRIPTION TEST PORT USAGE AFL NO. FC OLS 2900-50-0002MR SC OLS 2900-50-0003MR ST OLS 2900-50-0004MR LC OLS 2900-50-0006MR FC OPM 2900-52-0001MR SC OPM 2900-52-0002MR DESCRIPTION TEST PORT USAGE AFL NO. ST OPM 2900-52-0003MR LC OPM 2900-52-0004MR 2.5 mm Universal OPM 2900-52-0005MR 1.25 mm Universal OPM 2900-52-0006MR 2.5 mm Universal VFL 2900-50-0007MR 1.25 mm Universal VFL 2900-50-0010MR Test Management and Reporting Software DESCRIPTION AFL NO. TRM 3.0 upgrade from Basic to Advanced software TRM3-UGRADE TURBO App (Android Google play) Free Download
Features:
- Bi-directional testing on up to 2 fiber's at once
- Pass/Fail certification to ISO/IEC/TIA/IEEE and custom test limits
- Automatic dual-wavelength identification (Wave ID)
- Reporting with FlexReporter software and optional cloud-based workflow integration with aeRos® Pro
Applications:
- Certify Tier 1 networks to industry standards
- Test LAN structured cabling and data center networks with single fibre (LC, SC, FC, ST) and multi-fibre (MTP/MPO) connectivity
- Test access, metro and core networks
- Document network installations

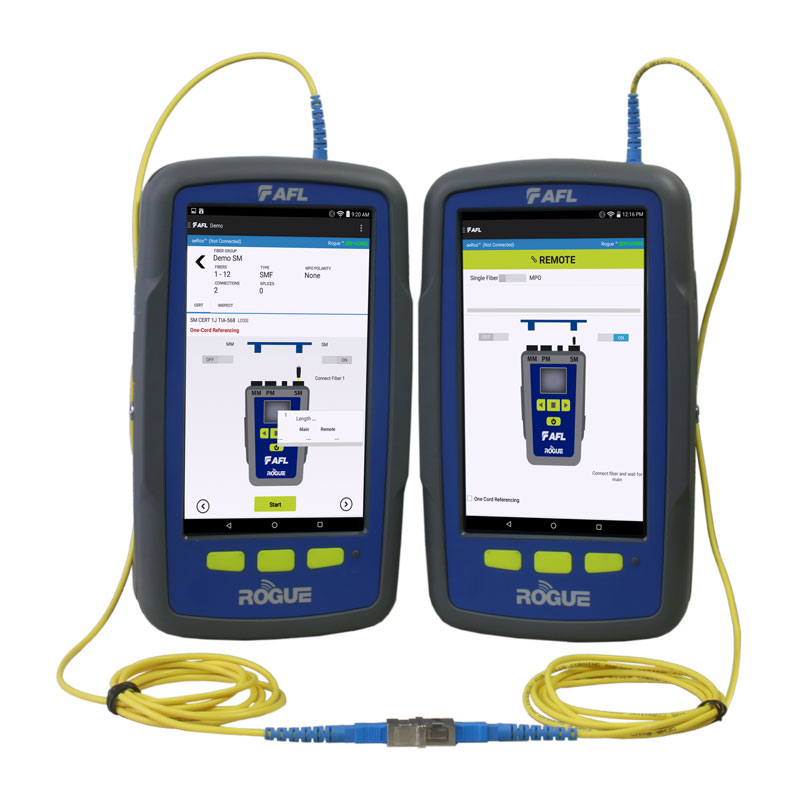

ROGUE® OLTS Certifier
AFL’s ROGUE OLTS Certifier measures insertion loss, return loss, and length bi-directionally to industry standards on both multimode and singlemode networks. ROGUE OLTS Certifier is offered as a matched pair of units, with each unit featuring 4 test ports. Two of the ports combine a light source and power meter to enable bi-directional testing on single or dual fibers. The other two ports are a dedicated power meter and a visual fault identifier (VFI) to help troubleshoot networks.
ROGUE OLTS Certifier is available in two models: an intelligent base (iB1) model with an integrated display and compact base (cB1) model that requires a paired smart device. Both models, depending on the chosen configuration, can provide either single-fiber testing on quad SM/MM wavelengths (850/1300/1310/1550 nm) or single and dual-fiber testing at 1310/1550 nm.
ROGUE OLTS Certifier can also be connected to AFL’s Multi-Fiber Switch (MFS) for certifying both 8- and 12-fiber MPO terminated cables bi-directionally to IEEE 40 and 100G test limits. An optional MFS add-on kit contains two Multi-Fiber Switches for either multimode or single mode testing. The MFS communicates to ROGUE OLTS Certifier via a 30 cm test cord connected to the optical test port.
All ROGUE OLTS Certifier kits include a basic license for Test Result Manager (TRM® 3.0) providing data processing and reporting locally via a PC. The optional aeRos® Pro test management software provides cloud-based workflow integration to remotely build projects, assign jobs, collect results, track progress and generate reports.
The mobile App, TURBO, which is used on the paired smart devices required for cB1 models, is available for free download from Google Play.
Ordering Information:
Each ROGUE OLTS Certifier kit includes two (2) of each: ROGUE cB1 or iB1 Base, kit-specific ROGUE Modules, battery, AC charger, carry strap, carry case. Each ROGUE OLTS Certifier kit includes (1) One-Click Cleaner SC/2.5 mm, (1) One-Click Cleaner LC/1.25 mm, switchable test port adapters and test accessories.
| DESCRIPTION |
CONTAINS (two of each) |
AFL NO.
|
| ;ROGUE OLTS Certifier kit with cB1 Base, Quad SM/MM
|
;ROGUE cB1 Base, Quad SM/MM Module, battery, AC charger, adjustable carry strap, carry case |
;RGK-CERT01 |
| ROGUE OLTS Certifier kit with cB1 Base, Dual SM ports
|
ROGUE cB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap, carry case
|
;RGK-CERT0
|
| ROGUE OLTS Certifier kit with iB1 Base, Quad SM/MM
|
ROGUE iB1 Base, Quad SM/MM Module, battery, AC charger, adjustable carry strap, carry case
|
RGK-CERT01B1
|
| ROGUE OLTS Certifier kit with iB1 Base, Dual SM ports
|
ROGUE iB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap, carry case
|
RGK-CERT03B1
|
ROGUE Hardware and Accessories:
| DESCRIPTION |
AFL NO. |
| ROGUE OLTS with cB1 Base; contains ROGUE cB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap
|
RGK-OLTS03
|
| ROGUE OLTS with iB1 Base; contains ROGUE iB1 Base, Dual Ports SM Module, battery, AC charger, adjustable carry strap
|
RGK-OLTS03B1
|
| ROGUE cB1, Compact Base; contains ROGUE cB1 Base, battery, AC charger, adjustable carry strap
|
RG-C01
|
| ROGUE iB1, Intelligent Base; contains ROGUE iB1 Base, battery, AC charger, adjustable carry strap
|
RG-B01
|
| ROGUE OLTS Certifier Quad Module; contains Quad Module; test port adapters: (2) SC for OLS port, SC and LC for OPM port
|
RG-1100-Q01
|
| ROGUE OLTS Certifier SM Module; contains SM Module; test port adapters (2) SC for OLS port, SC and LC for OPM port
|
RG-1100-S01-D
|
| ROGUE cB1 Base Kickstand
|
RGA-STND-01
|
| ROGUE Kit Carry Case
|
RGA-CASE-01
|
| ORL Referencing Mandrel
|
5400-00-0200
|
| Adjustable Carry Strap
|
RGA-STRAP-01
|
| AC charger for cB1 Base
|
4050-00-0132PR
|
| AC charger for iB1 Base
|
4050-00-0918PR
|
| Reference cable, SC/UPC-LC/UPC, SMF28E/E+, 2 m
|
8700-00-0081
|
| Reference cable, SC/APC-LC/UPC, SMF, 2 m
|
8700-00-0050
|
| Reference grade cable, SC/UPC-LC/UPC, MMF, 50 μm, OM4, 2 mm, Red, 2 m
|
8700-04-0007MR
|
