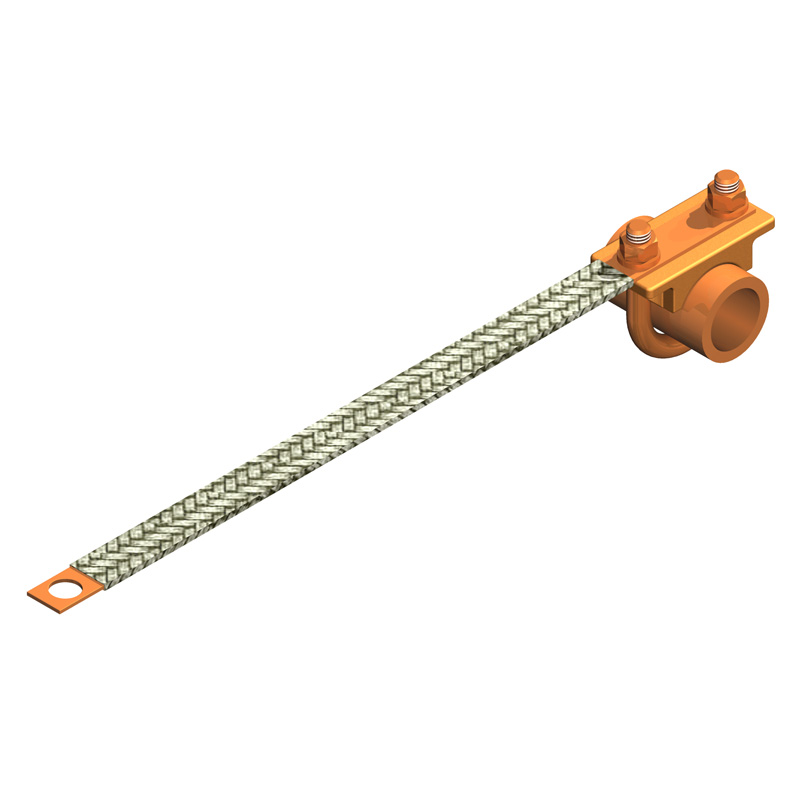

230 kV Bronze Bolted Pipe Ground Clamp

Ground connectors are designed to ground copper pipe.

0404a973ff1249859851295871ad551c

137 Bronze Grounding Connectors and Everdur Hardware Bronze Grounding Connectors and Everdur Hardware www.AFLglobal.com or 800-890-8878 © 2011, AFL, all rights reserved. Revision 1, 12.28.11 Specifications are subject to change without notice. A flexible ground connector for grounding a rotating pipe or rod to a flat surface. Finds wide application in grounding switch operating pipes and fence gates. TYPE GCG modification is for grounding one pipe or rod to another. Material • Copper Alloy • Braid is tin plated copper wire, terminated at each end by a non-plated pad. Hardware Everdur bolts, nuts and lockwashers Note Braid may be custom made for any configuration of length, pad size or hole diameter. TYPE GCF Ground Connector For Rotating Pipe To A Flat Surface Ordering Information CATALOG NUMBER GROUNDING SPS AMP CAPACITY OF BRAID DIMENSIONS IN INCHES BOLT SIZE A B L GCF75-771 3/4 180 1 2 11/16 24 15/16 3/8 GCF75-2301 3/4 350 1 1/2 2 11/16 24 15/16 3/8 GCF75-3021 3/4 410 1 1/2 2 11/16 24 15/16 3/8 GCF100-771 1 180 1 2 15/16 25 3/16 3/8 GCF100-2301 1 350 1 1/2 2 15/16 25 3/16 3/8 GCF100-3021 1 410 1 1/2 2 15/16 25 3/16 3/8 GCF125-771 1 1/4 180 1 3 1/4 25 1/2 3/8 GCF125-2301 1 1/4 350 1 1/2 3 1/4 25 1/2 3/8 GCF125-3021 1 1/4 410 1 1/2 3 1/4 25 1/2 3/8 GCF150-771 1 1/2 180 1 3 1/2 25 3/4 3/8 GCF150-2301 1 1/2 350 1 1/2 3 1/2 25 3/4 3/8 GCF150-3021 1 1/2 410 1 1/2 3 1/2 25 3/4 3/8 GCF200-771 2 180 1 4 26 1/4 3/8 GCF200-2301 2 350 1 1/2 4 26 1/4 3/8 GCF200-3021 2 410 1 1/2 4 26 1/4 3/8 GCF250-771 2 1/2 180 1 4 1/2 26 3/4 3/8 GCF250-2301 2 1/2 350 1 1/2 4 1/2 26 3/4 3/8 GCF250-3021 2 1/2 410 1 1/2 4 1/2 26 3/4 3/8 L B A GCG 21 1 1/4 Ø 11/16 GCF GCF GCG

Features:

Bronze alloy
External bus pipe fit for SCH 40 and SCH 80 bus pipe
Everdur hardware

Applications:

Rated for 230 kV
Substation
Copper pipe

Ground connectors are designed to ground copper pipe.
