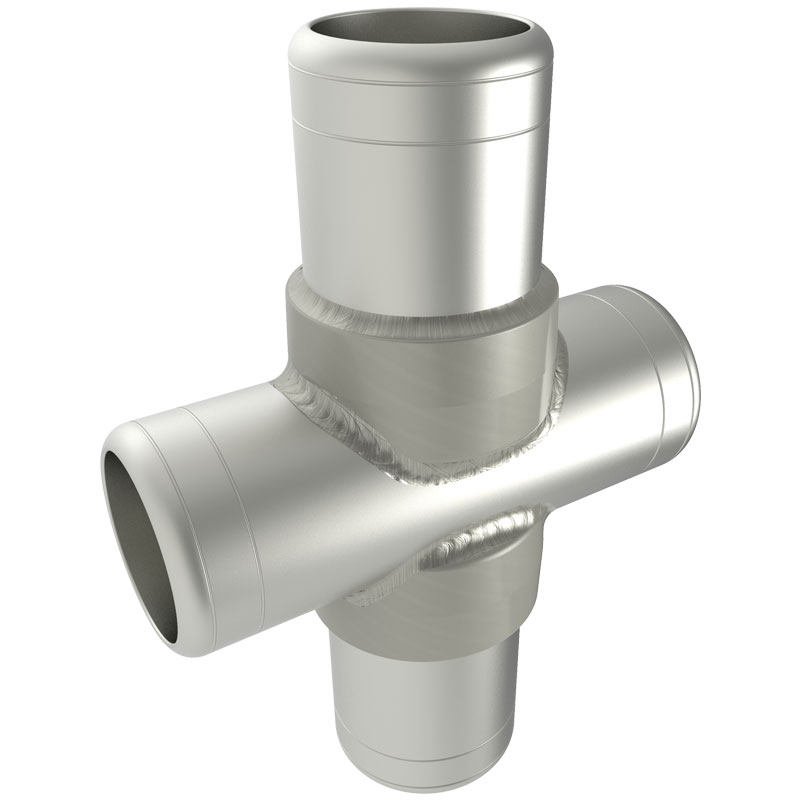

Swage Aluminum Bus Cross is designed to connect two tap bus ends to a bus run and carry the full current of the bus pipe using Swage Technology. These accessories vary from 230-500kV. SWX-AA, SWXR-AA, SWXS-AA, SWXRS-AA
1bcc2ec2c7d1476d92fd17b2fc5258bc
57 © 2013, AFL, all rights reserved. PP-3-00670, Revision 2, 4.6.18 Speci cations are subject to change without notice. Swage Bus Accessories www.AFLglobal.com or 800-890-8878 CROSS Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. TYPE SWX-AA, SWXR-AA Swage Bus Cross A Swage type cross to tap two bus ends to a bus run. Ordering Information AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) RUN TAP A B RUN TAP SWX100-AA 1 1 10.00 8.47 65TD100 65TD100 230 SWX150-AA 1.5 1.5 10.00 8.58 65TD150 65TD150 230 SWX200-AA 2 2 10.00 11.76 65TD200 65TD200 230 SWX250-AA 2.5 2.5 10.00 10.34 65TD250 65TD250 500 SWX300-AA 3 3 12.00 12.04 65TD300 65TD300 500 SWX350-AA 3.5 3.5 12.00 11.91 65TD350 65TD350 500 SWX400-AA 4 4 12.00 12.07 65TD400 65TD400 500 SWXR200-100-AA 2 1 10.00 9.67 65TD200 65TD100 230 SWXR200-150-AA 2 1.5 10.00 9.29 65TD200 65TD150 230 SWXR250-150-AA 2.5 1.5 10.00 10.21 65TD250 65TD150 230 SWXR300-200-AA 3 2 12.00 12.64 65TD300 65TD200 500 SWXR300-250-AA 3 2.5 12.00 12.25 65TD300 65TD250 500 SWXR400-300-AA 4 3 12.00 12.19 65TD400 65TD300 500 SWXR400-350-AA 4 3.5 12.00 12.71 65TD400 65TD350 500 B A TAP RUN TAP
58 Swage Bus Accessories www.AFLglobal.com or 800-890-8878 © 2013, AFL, all rights reserved. PP-3-00606, Revision 2, 4.19.18 Specifications are subject to change without notice. CROSS Material Aluminum Alloy Notes • Bore will be lined with AFL Filler compound (AFC) and capped. TYPE SWXS-AA, SWXRS-AA Swage Split Bus Cross A Swage type cross to tap two bus ends to a split bus run. Ordering Information AFL NO. S.P.S. DIMENSIONS IN INCHES DIE SIZE VOLTAGE RATING ( k V) RUN TAP A B RUN TAP SWXS100-AA 1 1 8.50 8.47 65TD100 65TD100 230 SWXS150-AA 1.5 1.5 8.50 8.58 65TD150 65TD150 230 SWXS200-AA 2 2 10.00 11.76 65TD200 65TD200 230 SWXS250-AA 2.5 2.5 10.00 10.34 65TD250 65TD250 500 SWXS300-AA 3 3 12.00 12.04 65TD300 65TD300 500 SWXS350-AA 3.5 3.5 12.00 11.91 65TD350 65TD350 500 SWXS400-AA 4 4 12.00 12.07 65TD400 65TD400 500 SWXRS200-100-AA 2 1 8.50 9.67 65TD200 65TD100 230 SWXRS200-150-AA 2 1.5 8.50 9.29 65TD200 65TD150 230 SWXRS250-150-AA 2.5 1.5 8.50 10.21 65TD250 65TD150 230 SWXRS300-200-AA 3 2 10.00 12.64 65TD300 65TD200 500 SWXRS300-250-AA 3 2.5 10.00 12.25 65TD300 65TD250 500 SWXRS400-300-AA 4 3 12.00 12.19 65TD400 65TD300 500 SWXRS400-350-AA 4 3.5 12.00 12.71 65TD400 65TD350 500 B A TAP TAP RUN
Features:
- Aluminum
- Swage compression fitting
Applications:
- Ratings vary from 230 kV to 500 kV
- Substation
- Aluminum bus pipe
Swage Aluminum Bus Cross is designed to connect two tap bus ends to a bus run and carry the full current of the bus pipe using Swage Technology. These accessories are available in solid or split run pipe for ease of installation on a bus run. These accessories vary from 230-500kV.
