For Paper Insulated Cable, a cable terminal which serves as both a fuse and a connector. The fusible element has a time-current characteristic which will enable it to clear faults.
52a8df1c09764d8682f3d27d16f0da42

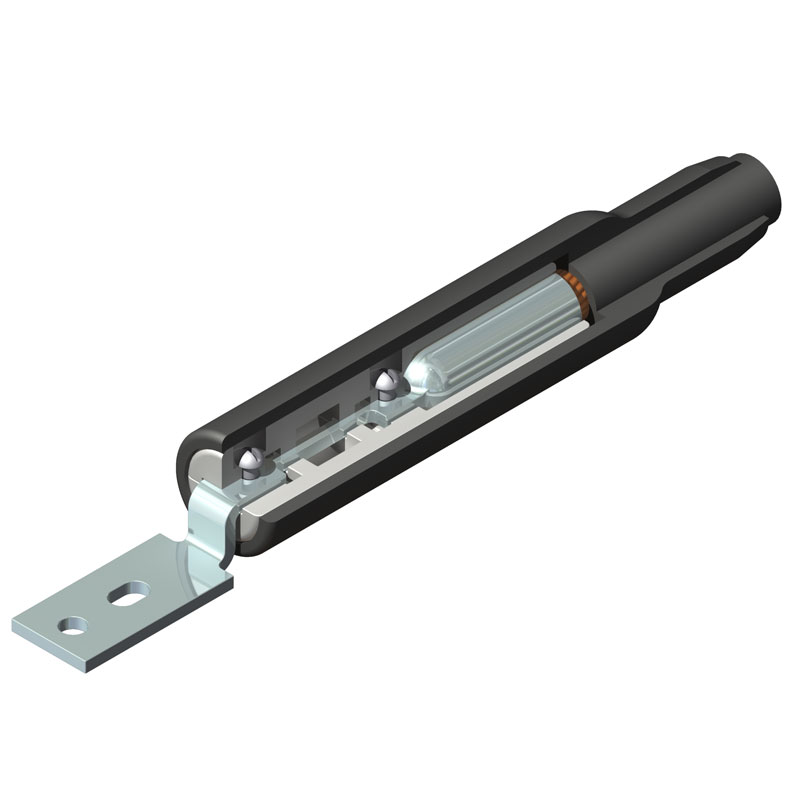

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00096, Revision 2, 11.12.2025 Specifications are subject to change without notice. 1 Network Underground A cable terminal which serves as both a fuse and a connector. The fusible element has a time-current characteristic which will enable it to clear faults severe enough to cause cable insulation damage. Unlike a fuse, the limiter will not clear a circuit on system overloads of short period. Type LLA-2PL123 Long Limiter Terminal Assembly for Paper Insulated Cable* Ordering Information Catalog Number Cable Size No. of Indents Dimensions in inches A C D L H X O.D. LLA21-2PL123 4/0 STR 1 1 2 3/16 Diameter over cable insulation to be specified on order. 11 5/8 7/8 7/16 2 LLA25-2PL123 250 MCM 1 1 3/32 2 3/16 11 5/8 7/8 7/16 2 LLA30-2PL123 300 MCM 2 1 3/16 2 5/16 13 1/4 1 1/2 2 7/16 LLA35-2PL123 350 MCM 2 1 9/32 2 5/16 13 1/4 1 1/2 2 7/16 LLA40-2PL123 400 MCM 2 1 13/32 2 5/16 13 1/4 1 1/2 2 7/16 LLA50-2PL123 500 MCM 2 1 1/2 2 3/4 13 5/8 1 1/2 2 7/16 LLA75-2PL123 750 MCM 2 1 15/16 2 3/4 13 5/8 1 1/2 2 7/16 * Closed end of sockets are sealed to make sockets oil tight. C A 1 1 / 4 ∅ 7 / 16 D 1 2 3 H L O.D. X Elements Type No. Name LLA-2P1 1 Insulating Sleeve LLA-2P2 2 Shell LLA-2PL3 3 Long Limiter Terminal AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
C Tapered Compression Sleeve,CKS Compression Receptacle,LLA 2P1 Limiter Terminal Insulating Sleeve,CBR Insulated Crab Connector,LLA 2P2 Limiter Terminal Shell,LLA 2PL3 Long Limiter Terminal,LLA2R123 LLA2P123 Limiter Terminal Assembly,LLA2R3 LLA2P3 Limiter Terminal,MA Cable Receptacle,MICON Coupling MIC,MICON Outlet Plugs P
