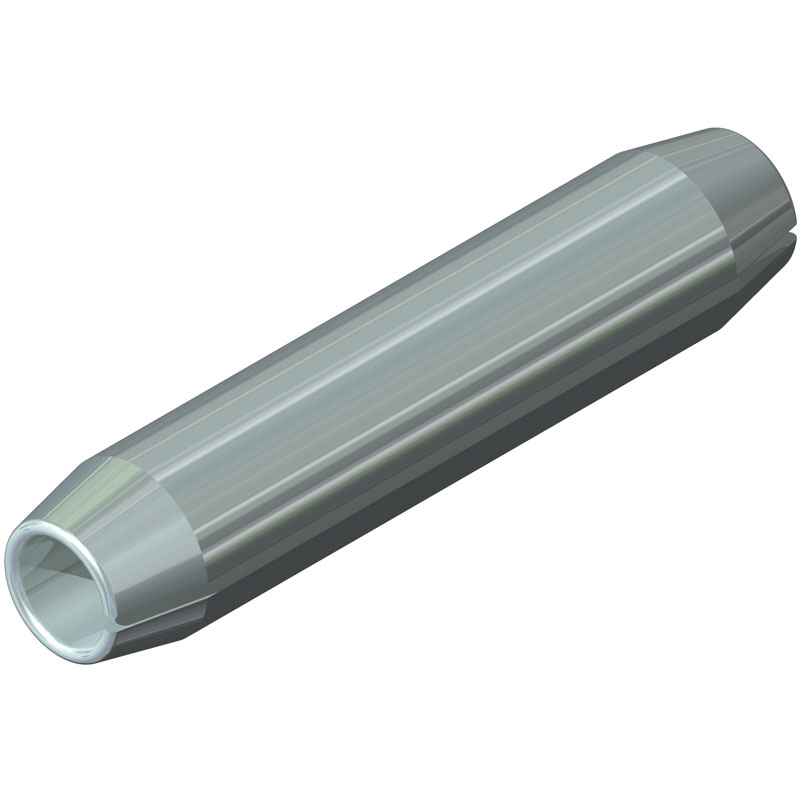

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00086, Revision 2, 11.26.2025 Specifications are subject to change without notice. 1 Network Underground A split sleeve coupler for soldering two cables end to end. Made of pure high conductivity copper with a full hot tin dipped coating. Type DPS Split Solder Coupler B O.D. L W FIG. 1 FIG. 2 L B W O.D. Ordering Information Catalog Number Cable Size Fig. No. Dimensions in inches B L O.D. W DPS2 #6 1 .189 1 1/2 .251 .030 DPS3 #5 1 .211 1 1/2 .281 .030 DPS4 #4 1 .237 2 .315 .030 DPS5 #3 1 .265 2 .353 .030 DPS6 #2 1 .297 2 .395 .030 DPS8 #1 1 .337 2 .449 .070 DPS10 1/0 2 0.378 2 .504 .070 DPS13 2/0 2 .423 2 .565 .070 DPS17 3/0 2 .475 2 .635 .070 DPS21 4/0 2 .533 2 1/2 .713 .070 DPS25 250 2 .581 2 1/2 .778 .120 DPS30 300 2 .635 2 1/2 .849 .120 DPS35 350 2 .690 2 1/2 .920 .120 DPS40 400 2 .740 3 .986 .120 DPS45 450 2 .784 3 1.046 .120 Catalog Number Cable Size Fig. No. Dimensions in inches B L O.D. W DPS50 500 2 .826 3 1.102 .120 DPS55 550 2 .868 3 1.154 .175 DPS60 600 2 .906 3 1/2 1.206 .175 DPS65 650 2 .948 3 1/2 1.260 .175 DPS70 700 2 .983 3 1/2 1.307 .175 DPS75 750 2 1.018 3 1/2 1.356 .175 DPS80 800 2 1.050 4 1.400 .175 DPS85 850 2 1.083 4 1.441 .220 DPS90 900 2 1.115 4 1.483 .220 DPS95 950 2 1.145 4 1.525 .220 DPS100 1000 2 1.175 4 1/2 1.565 .220 DPS125 1250 2 1.320 4 1/2 1.754 .220 DPS150 1500 2 1.440 5 1.912 .280 DPS175 1750 2 1.560 5 1/2 2.074 .280 DPS200 2000 2 1.664 6 2.214 .280 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
