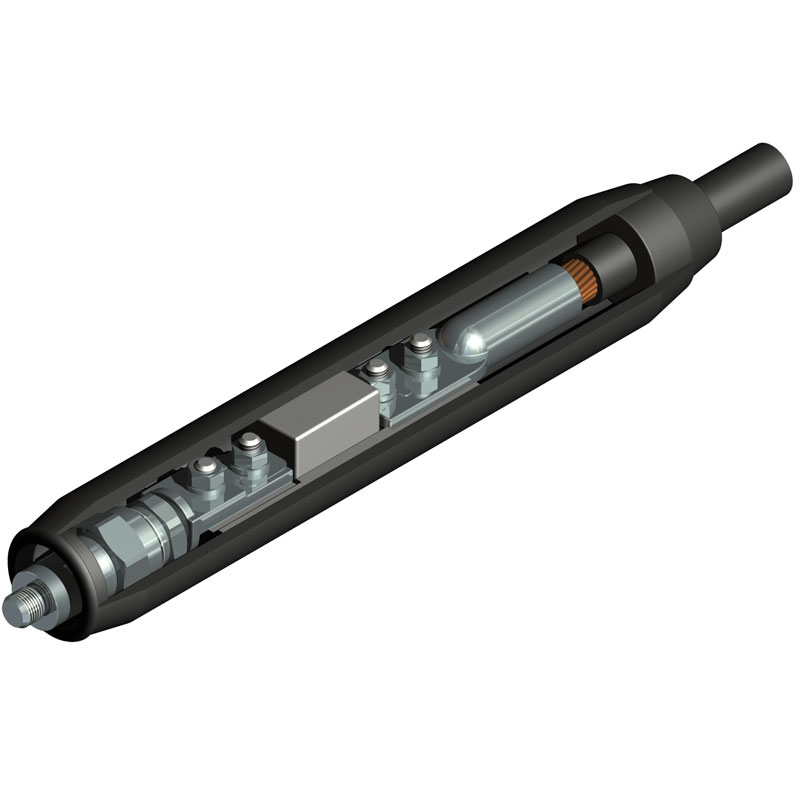

1 AFLglobal.com 1 (800) 890-8878 © 2011, AFL, all rights reserved. PP-3-00122, Revision 2, 11.25.2025 Specifications are subject to change without notice. 1 Network Underground The renewable MICON limiter link assembly is designed to establish a fusible connection to a MICON unit. The renewable link offers a quick and inexpensive means of re-energizing a cleared circuit. The renewable link also provides the possibility of regulating the circuit protection to various levels of current by choice of link ampere capacity. Type RLB-E Renewable MICON Limiter Link Assembly Ordering Information Catalog Number Cable Size Recommended for Use with RLB-E Indents in Cable Socket Dimensions in inches Renewable Limiter Link Furnished* Cable Receptacle Compression Sleeve D L Catalog Number Amp. Capacity RLB2-E 6 STR MA-21 C21-21 1 Diameter over cable insulation to be specified on order. 15 1/2 F50 50 RLB4-E 4 STR MA-21 C21-21 1 15 1/2 F75 75 RLB6-E 2 STR MA-21 C21-21 1 15 1/2 F100 100 RLB8-E 1 STR MA-21 C21-21 1 15 1/2 F100 100 RLB10-E 1/0 STR MA-21 C21-21 1 15 1/2 F150 150 RLB13-E 2/0 STR MA-21 C21-21 1 15 1/2 F150 150 RLB17-E 3/0 STR MA-21 C21-21 1 15 1/2 F200 200 RLB21-E 4/0 STR MA-21 C21-21 1 15 1/2 F250 250 RLB25-E 250 MCM MA-25 C25-25 1 15 1/2 F250 250 RLB30-E 300 MCM MA-30 C30-30 2 15 1/2 F300 300 RLB35-E 350 MCM MA-40 C40-35 2 15 1/2 F300 300 RLB40-E 400 MCM MA-40 C40-40 2 15 1/2 F400 400 RLB50-E 500 MCM MA-50 C50-50 2 15 1/2 F400 400 * Minimum clearing current of furnished limiter is approximately NEC rubber insulated cable rating X2. Elements Type No. Name RLM-1 1 Insulating sleeve RLM-2 2 Insulating brushing RLM-3 3 Insulating adaptor RLM-50B 4 Mounting block F 5 Limiter link RL-2 6 Compression Terminal RLB-2 7 Micon Terminal L 3 7 4 CABLE RECEPTACLE MA TYPE 5 1 6 2 AFL’s Dossert ® product line offers a wide range of substation accessories in low voltage up to 765 kV applications in bronze or aluminum materials.
