The 5200HT Series Repair Sleeve is specifically designed for ACSS and ACSS/TW Conductor. The repair sleeves incorporate an improved design of interlocking extrusion, providing a permanent grip on the conductor when compressed. The repair sleeve will restore the cable to 95% of its rated strength with up to one-third of the aluminum strands damaged.
1d9d61752401476db24988c745894d24

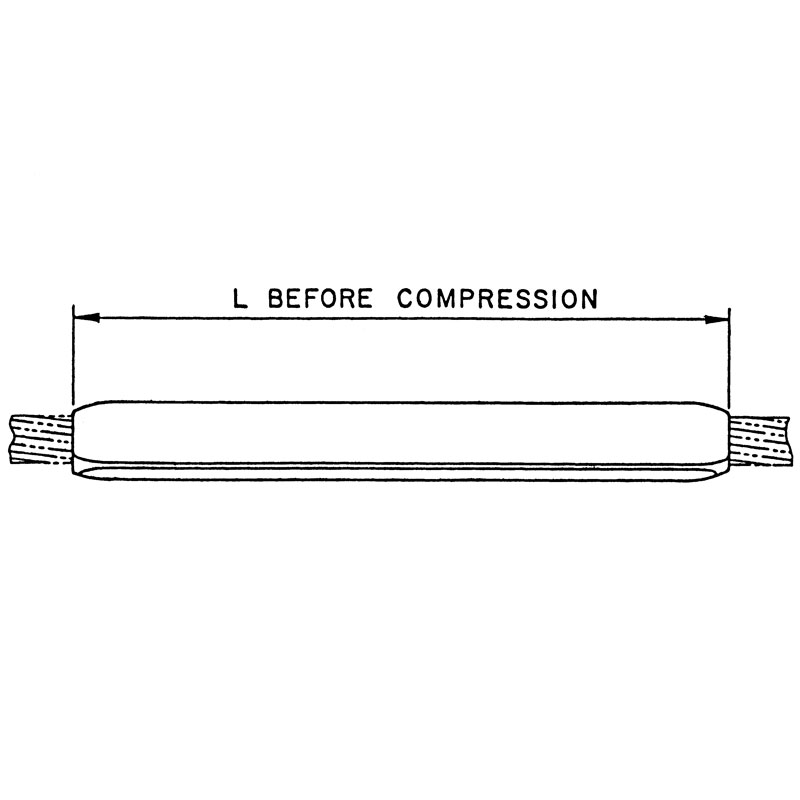

www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 293 HiTemp ® ACSS ACCESSORIES The 5200HT Series Repair Sleeve is specifically designed for ACSS and ACSS/TW Conductor The repair sleeves incorporate an improved design of interlocking extrusion, providing a permanent grip on the conductor when compressed The repair sleeve will restore the cable to 95% of its rated strength with up to one- third of the aluminum strands damaged Ordering Instructions Step 1: Assembly Catalog Number Determine the assembly catalog number based on the conductor being used Example: For 795 Drake ACSS Conductor, the complete catalog number is: 5230.3HT HiTemp Repair Sleeve for ACSS Conductor, 5200HT Series AFL NO. CONDUCTOR DIE SIZE WEIGHT TOTAL LENGTH L CODE NAME SIZE STRANDING DIAMETER KCMIL AL/ST IN LBS KG IN MM 5276 3HT Partridge/ACSS 266 8 26/7 0 642 76AH 1 2 0 5 18 0 457 5220 3HT WoodCock/ACSS 336 4 22/7 0 701 20AH 1 7 0 8 22 5 571 5220 3HT Linnet/ACSS 336 4 26/7 0 720 20AH 1 7 0 8 22 5 571 5220 3HT Oriole/ACSS 336 4 30/7 0 741 20AH 1 7 0 8 22 5 571 5220 3HT Ptarmigan/ACSS 397 5 20/7 0 752 20AH 1 7 0 8 22 5 571 5220 3HT Brant/ACSS 397 5 24/7 0 772 20AH 1 7 0 8 22 5 571 5220 3HT Ibis/ACSS 397 5 26/7 0 783 20AH 1 7 0 8 22 5 571 5220 3HT Lark/ACSS 397 5 30/7 0 806 20AH 1 7 0 8 22 5 571 5220 3HT Tailorbird/ACSS 477 0 20/7 0 823 20AH 1 7 0 8 22 5 571 5224 3HT Flicker/ACSS 477 0 24/7 0 846 24AH 2 6 1 2 23 5 596 5224 3HT Hawk/ACSS 477 0 26/7 0 858 24AH 2 6 1 2 23 5 596 5224 3HT Hen/ACSS 477 0 30/7 0 883 24AH 2 6 1 2 23 5 596 5224 3HT Sapsucker/ACSS 556 5 22/7 0 901 24AH 2 6 1 2 23 5 596 5224 3HT Parakeet/ACSS 556 5 24/7 0 914 24AH 2 6 1 2 23 5 596 5227 3HT Dove/ACSS 556 5 26/7 0 927 27AH 3 5 1 6 26 3 668 5227 3HT Eagle/ACSS 556 5 30/7 0 953 27AH 3 5 1 6 26 3 668 5227 3HT Peacock/ACSS 605 0 24/7 0 953 27AH 3 5 1 6 26 3 668 5227 3HT Squab/ACSS 605 0 26/7 0 966 27AH 3 5 1 6 26 3 668 5227 3HT Wood Duck/ACSS 605 0 30/7 0 994 27AH 3 5 1 6 26 3 668 5227 3HT Teal/ACSS 605 0 30/19 0 994 27AH 3 5 1 6 26 3 668 5227 3HT Goldfinch/ACSS 636 0 22/7 0 966 27AH 3 5 1 6 26 3 668 5227 3HT Rook/ACSS 636 0 24/7 0 977 27AH 3 5 1 6 26 3 668 5227 3HT Grosbeak/ACSS 636 0 26/7 0 990 27AH 3 5 1 6 26 3 668 5227 3HT Scoter/ACSS 636 0 30/7 1 019 27AH 3 5 1 6 26 3 668 5227 3HT Egret/ACSS 636 0 30/19 1 019 27AH 3 5 1 6 26 3 668 NOTES: 1 Installation Instructions for Repair Sleeves are on page 349 2 For more information on die selction and ordering instructions, see the Tools and Equipment section of this catalog
www.AFLglobal.com or 800-866-7385 © 2003, AFL, all rights reserved. PP-3-00747, Revision 6, 9.13.16 Specifications are subject to change without notice. 294 HiTemp ® ACSS ACCESSORIES HiTemp Repair Sleeve for ACSS Conductor, 5200HT Series (cont.) Catalog Number Conductor Die Size Weight Total Length L Code Name Size Stranding Diameter kcmil Al/St in lbs kg in mm 5227 3HT Flamingo/ACSS 666 6 24/7 1 000 27AH 3 5 1 6 26 3 668 5227 3HT Gannet/ACSS 666 6 26/7 1 014 27AH 3 5 1 6 26 3 668 5230 3HT Stilt/ACSS 715 5 24/7 1 036 30AH 4 2 1 9 27 1 688 5230 3HT Starling/ACSS 715 5 26/7 1 051 30AH 4 2 1 9 27 1 688 5230 3HT Redwing/ACSS 715 5 30/19 1 081 30AH 4 2 1 9 27 1 688 5230 3HT Cuckoo/ACSS 795 0 24/7 1 092 30AH 4 2 1 9 27 1 688 5230 3HT Drake/ACSS 795 0 26/7 1 108 30AH 4 2 1 9 27 1 688 5230 3HT Macaw/ACSS 795 0 42/7 1 055 30AH 4 2 1 9 27 1 688 5230 3HT Tern/ACSS 795 0 45/7 1 063 30AH 4 2 1 9 27 1 688 5230 3HT Condor/ACSS 795 0 54/7 1 092 30AH 4 2 1 9 27 1 688 5230 3HT Mallard/ACSS 795 0 30/19 1 140 30AH 4 2 1 9 27 1 688 5230 3HT Ruddy/ACSS 900 0 45/7 1 131 30AH 4 2 1 9 27 1 688 5230 3HT Canary/ACSS 900 0 54/7 1 162 30AH 4 2 1 9 27 1 688 5230 3HT Corncrake/ACSS 954 0 20/7 1 165 30AH 4 2 1 9 27 1 688 5230 3HT Redbird/ACSS 954 0 24/7 1 196 30AH 4 2 1 9 27 1 688 5230 3HT Rail/ACSS 954 0 45/7 1 165 30AH 4 2 1 9 27 1 688 5230 3HT Towhee/ACSS 954 0 48/7 1 175 30AH 4 2 1 9 27 1 688 5230 3HT Cardinal/ACSS 954 0 54/7 1 196 30AH 4 2 1 9 27 1 688 5234 3HT Canvasback/ACSS 954 0 30/19 1 248 34AH 5 8 2 6 28 1 714 5234 3HT Snowbird/ACSS 1033 5 42/7 1 203 34AH 5 8 2 6 28 1 714 5234 3HT Ortolan/ACSS 1033 5 45/7 1 212 34AH 5 8 2 6 28 1 714 5234 3HT Curlew/ACSS 1033 5 54/7 1 245 34AH 5 8 2 6 28 1 714 5234 3HT Bluejay/ACSS 1113 0 45/7 1 259 34AH 5 8 2 6 28 1 714 5234 3HT Finch/ACSS 1113 0 54/19 1 293 34AH 5 8 2 6 28 1 714 5234 3HT Bunting/ACSS 1192 5 45/7 1 302 34AH 5 8 2 6 28 1 714 5236 3HT Grackle/ACSS 1192 5 54/19 1 338 36AH 6 0 2 7 29 0 737 5236 3HT Bittern/ACSS 1272 0 45/7 1 345 36AH 6 0 2 7 29 0 737 5236 3HT Diver/ACSS 1272 0 48/7 1 357 36AH 6 0 2 7 29 0 737 5236 3HT Pheasant/ACSS 1272 0 54/19 1 382 36AH 6 0 2 7 29 0 737 5236 3HT Dipper/ACSS 1351 5 45/7 1 386 36AH 6 0 2 7 29 0 737 5238 3HT Martin/ACSS 1351 5 54/19 1 424 38AH 7 1 3 2 29 8 757 5238 3HT Bobolink/ACSS 1431 0 45/7 1 427 38AH 7 1 3 2 29 8 757 5238 3HT Plover/ACSS 1431 0 54/19 1 465 38AH 7 1 3 2 29 8 757 5238 3HT Nuthatch/ACSS 1510 0 45/7 1 466 38AH 7 1 3 2 29 8 757 5240 3HT Parrot/ACSS 1510 0 54/19 1 505 40AH 8 2 3 7 30 7 780 5240 3HT Ratite/ACSS 1590 0 42/7 1 492 40AH 8 2 3 7 30 7 780 5240 3HT Lapwing/ACSS 1590 0 45/7 1 504 40AH 8 2 3 7 30 7 780 5240 3HT Falcon/ACSS 1590 0 54/19 1 544 40AH 8 2 3 7 30 7 780 5242 3HT Chukar/ACSS 1780 0 84/19 1 602 42AH 9 5 4 3 31 6 803 5242 3HT Mockingbird/ACSS 2034 5 72/7 1 681 42AH 9 5 4 3 31 6 803 5242 3HT Roadrunner/ACSS 2057 0 76/19 1 700 42AH 9 5 4 3 31 6 803 5244 3HT Bluebird/ACSS 2156 0 84/19 1 762 44AH 10 8 4 9 32 5 826 5244 3HT Kiwi/ACSS 2167 0 72/7 1 735 44AH 10 8 4 9 32 5 826 5244 3HT Thrasher/ACSS 2312 0 76/19 1 802 44AH 10 8 4 9 32 5 826 5248 3HT Joree/ACSS 2515 0 76/19 1 880 48AH 12 0 5 5 32 5 826
Features:
- Specially tempered aluminum
- Standard AH and SH dies
Applications:
- Compression repair sleeve for ACSS conductors
The 5200HT Series Repair Sleeve is specifically designed for ACSS and ACSS/TW Conductor. The repair sleeves incorporate an improved design of interlocking extrusion, providing a permanent grip on the conductor when compressed. The repair sleeve will restore the cable to 95% of its rated strength with up to one-third of the aluminum strands damaged.
