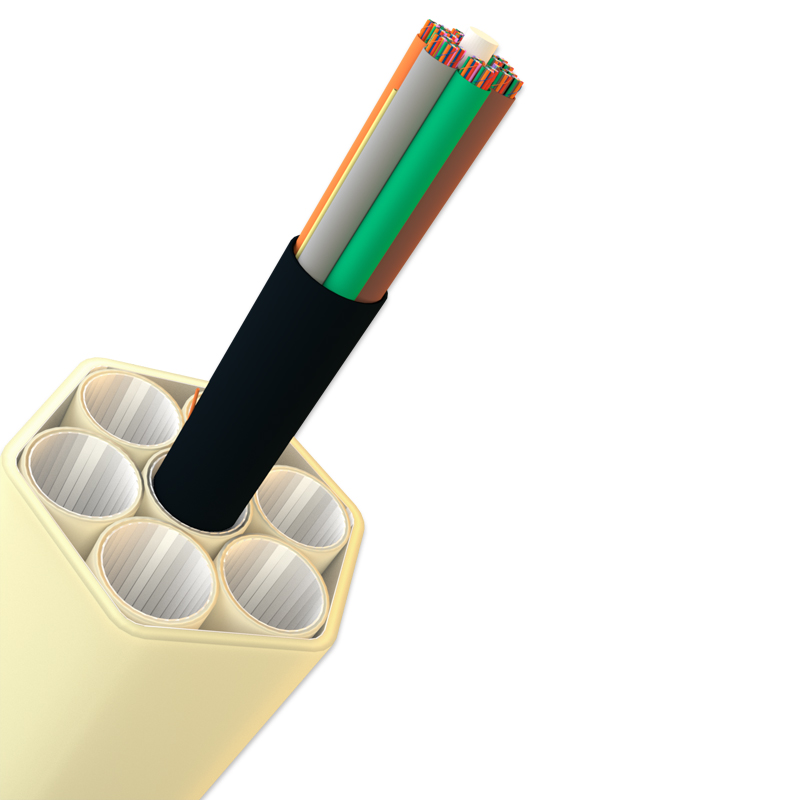

Die LMV-Serie Indoor/Outdoor OFNR MicroCore von AFL wurde für Anwendungen entwickelt, die Kabel benötigen, die in OSP und ISP verlegt werden können, ohne dass ein separates flammgeschütztes Produkt erforderlich ist.
1 FIBER OPTIC CABLE Premise Cable © 2018, AFL, all rights reserved. PP-1-00145, Revision 2, 12.15.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 LMV-Series OFNR I/O MicroCore ® AFL’s LMV-Series Indoor/Outdoor OFNR MicroCore product line is designed for applications requiring cables that can be routed in OSP and ISP without the need to transition to a separate flame-rated product. These cables can be readily installed in micro-duct pathways or, with their 300-lb load rating, pulled into conventional ducts. Their small size also makes them better suited for duct override applications compared to traditional I/O loose tube cables. The LMV-Series product line is available in fiber counts ranging from 24 to 144. Features • Indoor/Outdoor Riser-rated: Can be routed throughout network without need separate OSP and ISP cable • Optimized air-jetting cable design: Ideally suited for low-cost micro-duct installation • Loose buffer tube core construction using 200 micron single-mode fiber Ordering Information and Fiber Specifications AFL NO. FIBER COUNT FIBERS/ NO. OF TUBES* NOMINAL DIAMETER MIN. MICRODUCT INNER DIAMETER WEIGHT MAXIMUM TENSILE LOAD MINIMUM BEND lbs (N) inches (cm) inches (mm) inches (mm) lbs/1000 ft (kg/km) INSTALLATION OPERATION INSTALLATION OPERATION LMV024BCO6101NS 24 24/1 (5 fillers) 0.374 (9.5) 0.512 (13) 64 (95) 300 (1334) 90 (400) 8 (19) 6 (15) LMV048BCO6101NS 48 24/2 (4 fillers) 0.374 (9.5) 0.512 (13) 64 (95) 300 (1334) 90 (400) 8 (19) 6 (15) LMV072BCO6101NS 72 24/3 (3 fillers) 0.374 (9.5) 0.512 (13) 65 (96) 300 (1334) 90 (400) 8 (19) 6 (15) LMV096BCO6101NS 96 24/4 (2 fillers) 0.374 (9.5) 0.512 (13) 65 (97) 300 (1334) 90 (400) 8 (19) 6 (15) LMV144BCO6101NS 144 24/6 0.374 (9.5) 0.512 (13) 65 (97) 300 (1334) 90 (400) 8 (19) 6 (15) * Fibers are arranged in buffer tubes using 12-fiber sets. Each set is identified by colored binder threads. Temperature Specifications TEMPERATURE RANGE INSTALLATION -10ºC to +40ºC OPERATING -30ºC to +70ºC STORAGE -30ºC to +70ºC Applications • Inter-building campus backbone • FTTx MDU feeder connection • Industrial complex communications infrastructure Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT Telcordia GR-20-CORE Water-Blocked Cabled Buffer Tube Core ICEA S-104-696 Cable UL 1666 (OFNR) Cable CSA 22.2 (FT4) Cable TIA 598-D Fiber
Merkmale:
- Innen/Außen Steigbügelhalterung: Kann im gesamten Netzwerk verlegt werden, ohne dass ein separates OSP- und ISP-Kabel erforderlich ist
- Optimiertes Air-Jetting-Kabeldesign:
Ideal geeignet für die kostengünstige Verlegung von Mikrokanälen - Lose Buffer Tube Kernkonstruktion mit 200 Mikron Singlemode-Faser
Anwendungen:
- Backbone zwischen Gebäuden auf dem Campus
- FTTx MDU-Zuleitungsverbindung
- Kommunikationsinfrastruktur für Industriekomplexe
Die LMV-Serie Indoor/Outdoor OFNR MicroCore von AFL’wurde für Anwendungen entwickelt, die Kabel benötigen, die in OSP und ISP verlegt werden können, ohne dass ein separates flammgeschütztes Produkt erforderlich ist. Diese Kabel lassen sich problemlos in Mikrokanälen verlegen oder mit ihrer Tragfähigkeit von 300 Pfund in herkömmliche Kanäle einziehen. Aufgrund ihrer geringen Größe eignen sie sich auch besser für Kanalüberbrückungsanwendungen als herkömmliche E/A-Bündeladerkabel. Die LMV-Produktreihe ist mit einer Faserzahl von 24 bis 144 erhältlich.
