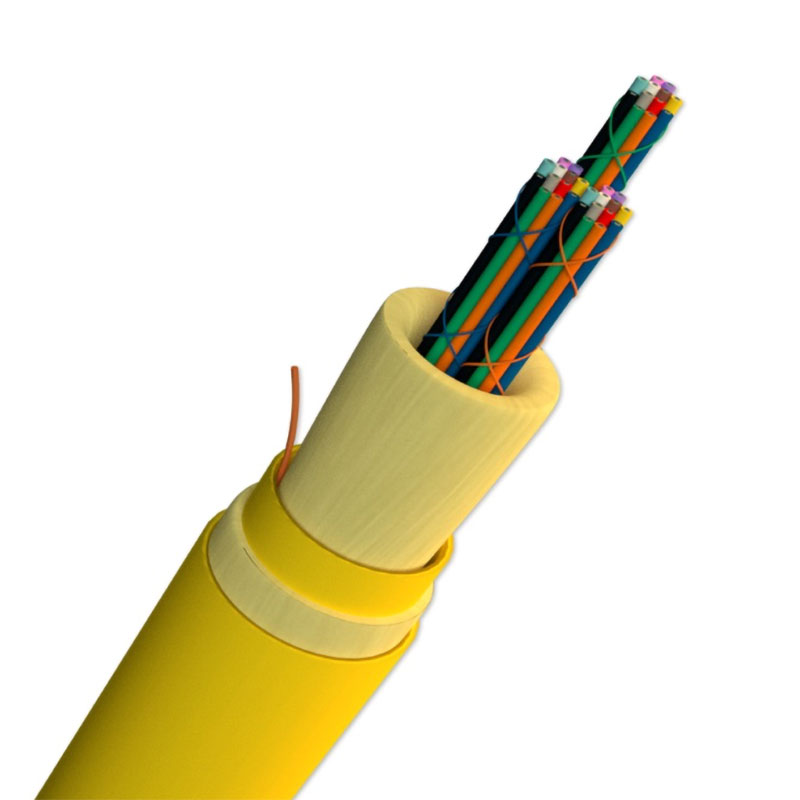

AFL Ruggedized MicroCore (CPR) ist die nächste Generation der Maximierung der Glasfaserdichte in AFLs Produktlinie der hochdichten Rechenzentrumskabel. Ruggedized MicroCore ist eine branchenführende Alternative zu einem herkömmlichen zentralen Bündelader-Bandkabel innerhalb der Anlage.
935439b8280f490b87fa45fb896240fc
1 FIBER OPTIC CABLE Fiber Optic Cable © 2019, AFL, all rights reserved. PP-1-00164, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 continued Cable Components Applications • Headend termination to a fiber "backbone" • Termination of fiber rack systems • Intra-building "backbones" • MTP/MPO or MTP to breakout terminations Features • Available with 250 μm bare fiber or SpiderWeb Ribbon (SWR) optical fiber technology • Fiber counts 12 to 72 • LSZH Riser flame-rated jacket • All aramid tensile strength members around core cable for ease of attaching pulling-eye; aramid within core for use with MT termination • Installation tension rating of 150 lbs. Ruggedized MicroCore ® Cable – CPR Certified AFL Ruggedized MicroCore (CPR) is the next generation of maximizing fiber density in AFL’s line of high density data center cables. Ruggedized MicroCore an industry leading alternative to a traditional inside plant central loose tube ribbon cable. Both standard 250 μm based fiber and AFL revolutionary Spiderweb Ribbon ® Technology designs are available. Ruggedized MicroCore with bare fiber eliminates concerns associated with edge fiber stresses due to preferential bend of encapsulated ribbons. These cables consist of a LSZH (including ONFR-LS/FT4) flame-rated outer jacket with an installation tension rating of 150 lbs. qualified to meet and exceed the requirements of the latest Telcordia GR-409-CORE inside plant cabling requirements. Sub-unit Outer Jacket Aramid yarn for pull strength SWR Ruggedized 12 fiber SWR units Sub-unit Outer Jacket Aramid yarn for pull strength SWR Ruggedized 48 fiber Sub-unit Outer Jacket Aramid yarn for pull strength Sub-unit Outer Jacket Aramid yarn for pull strength String-bound fiber bundles Ruggedized 12 fiber Ruggedized 48 fiber Technical Information FIBER COUNT NOMINAL DIAMETER INCHES (MM) NOMINAL SUBUNIT INCHES (MM) WEIGHT LBS/1000 FT (KG/KM) TENSION LBS (N) BENDING RADIUS INCHES (CM) INSTALL LONGTERM INSTALL LONGTERM 12 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 24 0.19 (4.8) 0.12 (3.0) 15 (22) 150 (660) 45 (200) 2.9 (7.2) 1.9 (4.8) 36 0.22 (5.6) 0.15 (3.8) 21 (31) 150 (660) 45 (200) 3.3 (8.4) 2.2 (5.6) 48 0.22 (5.6) 0.15 (3.8) 22 (32) 150 (660) 45 (200) 3.3 (8.4) 2.2 (5.6) 72 0.25 (6.4) 0.19 (4.8) 30 (45) 150 (660) 45 (200) 3.8 (9.6) 2.5 (6.4)
© 2019, AFL, all rights reserved. PP-1-00164, Revision 1, 5.26.2020 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 2 FIBER OPTIC CABLE Fiber Optic Cable Premise Cable Temperature Specifications TEMPERATURE RANGE RISER LSZH INSTALLATION 0°C to +70°C -20°C to +70°C OPERATION 0°C to +60°C 0°C to +60°C STORAGE -40°C to +70°C -40°C to +70°C Contact AFL for further details. Qualifications GOVERNING BODY STANDARD CODE COMPONENT CE B2ca - s1a,d0,a1 Cable IEC 60332, 60754, 61034 LSZH/ONFR-LS Jacket Telcordia GR-409-CORE Jacket EIA/TIA 568 Jacket ICEA Jacket RoHS REACH Jacket Ruggedized MicroCore ® Cable – CPR Certified Ordering Information—Ruggedized MicroCore with 250 μm Bare Fiber FIBER COUNT AFL NO. CPR CERTIFICATION SINGLE-MODE OM3 50 μ m OM4 50 μ m OM5 50 μ m 12 RE012930199B-B2CA RE012L301CCB-BIF-B2CA RE012C301CCB-BIF-B2CA RE012W301LLB-BIF-B2CA B2ca - s1a,d0,a1 16 RE016930199B-B2CA RE016L301CCB-BIF-B2CA RE016C301CCB-BIF-B2CA RE016W301LLB-BIF-B2CA B2ca - s1a,d0,a1 24 RE024930199B-B2CA RE024L301CCB-BIF-B2CA RE024C301CCB-BIF-B2CA RE024W301LLB-BIF-B2CA B2ca - s1a,d0,a1 32 RE032938199B-B2CA RE032L381CCB-BIF-B2CA RE032C381CCB-BIF-B2CA RE032W381LLB-BIF-B2CA B2ca - s1a,d1,a1 36 RE036938199B-B2CA RE036L381CCB-BIF-B2CA RE036C381CCB-BIF-B2CA RE036W381LLB-BIF-B2CA B2ca - s1a,d1,a1 48 RE048940199B-B2CA RE048L401CCB-BIF-B2CA RE048C401CCB-BIF-B2CA RE048W401LLB-BIF-B2CA B2ca - s1a,d1,a1 72 RE072948199B-B2CA RE072L481CCB-BIF-B2CA RE072C481CCB-BIF-B2CA RE072W481LLB-BIF-B2CA B2ca - s1a,d1,a1 Ordering Information—Ruggedized MicroCore with SpiderWeb Ribbon ® (SWR ® ) FIBER COUNT AFL NO. CPR CERTIFICATION SINGLE-MODE OM3 OM4 OM5 12 RE012P30199R-B2CA RE012L301CCS-BIF-B2CA RE012C301CCS-BIF-B2CA N/A B2ca - s1a,d0,a1 24 RE024P30199R-B2CA RE024L301CCS-BIF-B2CA RE024C301CCS-BIF-B2CA N/A B2ca - s1a,d0,a1 36 RE036P38199R-B2CA RE036L381CCS-BIF-B2CA RE036C381CCS-BIF-B2CA N/A B2ca - s1a,d0,a1 48 RE048P40199R-B2CA RE048L401CCS-BIF-B2CA RE048C401CCS-BIF-B2CA N/A B2ca - s1a,d1,a1 72 RE072P48199R-B2CA RE072L481CCS-BIF-B2CA RE072C481CCS-BIF-B2CA N/A B2ca - s1a,d1,a1 * Item numbers are built with AFL Standard Fiber, AFL Standard Print with industry standard colors: SMF – Yellow, 50 μ m OM3 and OM4 – Aqua, 50 μ m OM5 – Lime. Additional Fiber, Print and Color options available, please contact AFL for options.
Merkmale:
- Verfügbar mit 250 µ
m Bare Fiber oder SpiderWeb Ribbon (SWR) Glasfasertechnologie
- Faseranzahl 12 bis 72
- LSZH Riser flammgeschützter Mantel
- Alle Aramid-Zugfestigkeitselemente um den Kabelkern für eine einfache Befestigung der Zugöse; Aramid im Kern für die Verwendung mit MT-Abschluss
- Zugfestigkeit bei der Installation von 150 lbs.
Anwendungen:
- Anschluss der Kopfstelle an ein Glasfaser-"Backbone"
- Abschluss von Glasfaser-Racksystemen
- Gebäudeinterne "Backbones"
- MTP/MPO oder MTP zu Breakout-Abschlüssen
AFL Ruggedized MicroCore (CPR) ist die nächste Generation der Maximierung der Glasfaserdichte in der AFL’Reihe von Kabeln mit hoher Dichte für Rechenzentren. Ruggedized MicroCore ist eine branchenführende Alternative zu einem herkömmlichen zentralen Bündelader-Bandkabel innerhalb der Anlage. Es sind sowohl Standardfasern auf 250 µm-Basis als auch die revolutionäre Spiderweb Ribbon-Technologie von AFL® erhältlich. Ruggedized MicroCore mit nackten Fasern beseitigt die Probleme, die mit der Belastung der Faserkanten durch die bevorzugte Biegung der ummantelten Bänder verbunden sind. Diese Kabel bestehen aus einem flammwidrigen LSZH-Außenmantel (einschließlich ONFR-LS/FT4) mit einer Zugfestigkeit von 150 lbs., der die Anforderungen der neuesten Telcordia GR-409-CORE-Anforderungen für die Verkabelung innerhalb von Anlagen erfüllt und übertrifft.
