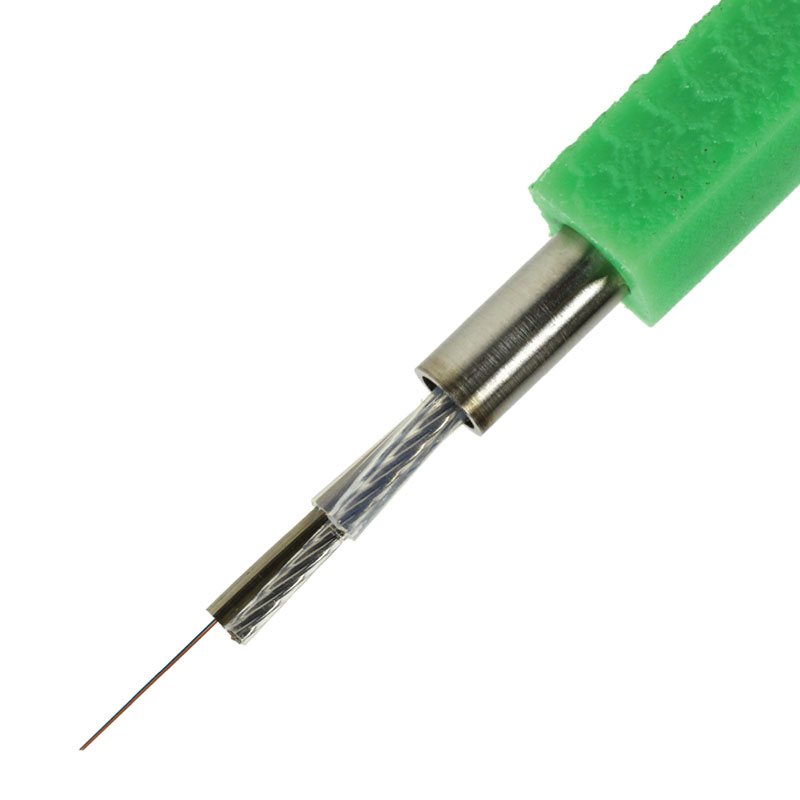

1 SPECIALTY FIBER OPTIC CABLE Specialty Fiber Optic Cable © 2015, AFL, all rights reserved. PP-1-00125, Revision 2, 2.4.2021 Specifications are subject to change without notice. AFLglobal.com | 800.235.3423 Hybrid Downhole Cable Hybrid Downhole cable from AFL combines copper conductor and optical fibers within the same cable structure for simultaneous deployment. This construction is intended to withstand elevated temperatures, high pressure and corrosive environments. The cable may be customized to the customer’s specifications in order to balance performance capability with cost considerations. This design is targeted toward well applications than have operating temperatures ≤ 150°C. Features • Up to 150°C • Incorporates insulated 18AWG copper conductor • Loose tube design for optical fibers • Hydrogen scavenging gel • Customized to customer specifications Options and Specifications PARAMETER VALUE Inner Stainless Steel Tube Diameter 0.071" Copper Conductors 1 x 18 AWG Outer Tube Diameter 0.250" Outer Tube Wall Thickness 0.035" Outer Tube Material Stainless Steel 316L, Incoloy ® 825 Fiber Types Single-mode, Multimode Gel Types Hydrogen scavenging gel Encapsulation Options None, 11 mm x 11 mm Square, 11 mm Round Polymer Types Polypropylene, PVDF, Nylon, Santoprene ™ Operating Temperature -40°C to 150°C Operating Pressure Limit 0 to 20,000 psi Cable Components Belting Layer 18AWG Insulated Conductor SS Tube, Optical Fibers and Gel ¼" x 0.035" WT Outer Tube 11 mm x 11 mm Square Outer Encapsulation
